Day 7: Create security groups (add the smart locks)

· 22 min read
Norah Sakal
Norah Sakal
AI Consultant & Developer

Create Security Groups (add the smart locks)

What you'll learn

How to create Security Groups that control exactly who can talk to your load balancer and AI agent Containers

Your network needs smart locks​

Day 6: You built the roads (route tables)

Today: We add the smart locks (Security Groups)

Here's the problem:

Your routing works, traffic can flow.

But there's NO security layer yet.

Right now:

  • Anyone can try to connect to your containers
  • No firewall rules
  • No access control

That's a security issue.

Solution: Security Groups

Think of them like smart locks on each building's door:

Smart lock (on the pool house door): "Where are you coming from and which door are you trying to use?"

Visitor: "I'm coming from the front-yard house (load balancer), trying to reach post 6060"

Smart lock: "Verified. This door only opens for visitors from the front-yard house" ✅

Random person from the city: "I found this address. I want to reach post 6060 too!"

Smart lock: "You didn't come through the front yard house. Door stays locked." ❌

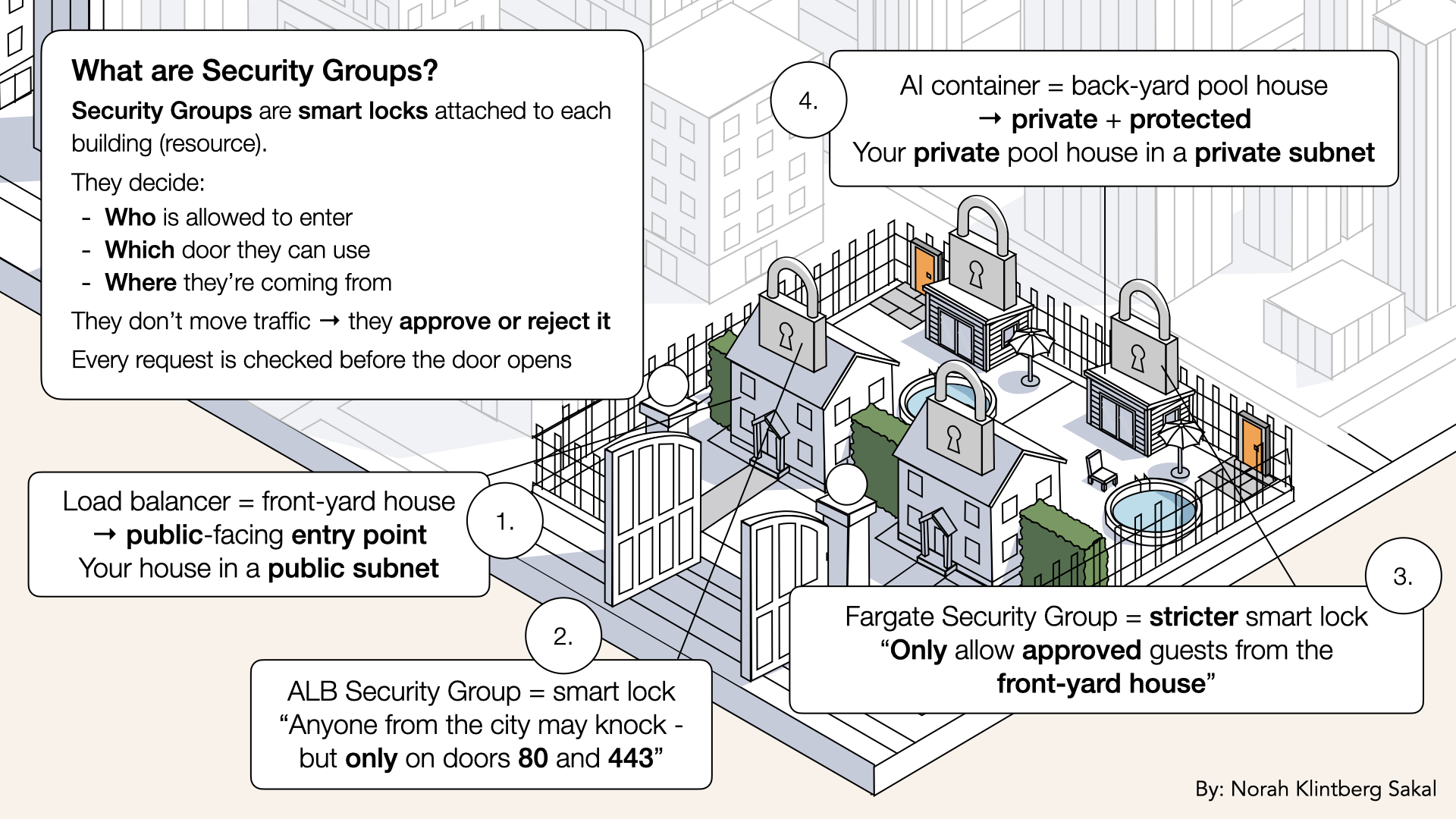

Visual overview of Security Groups: Security Groups are smart locks attached to each building (resource).

Security Groups are smart locks attached to each building (resource)

By the end of today, you'll have:

✅ ALB Security Group (allows HTTP/HTTPS from internet)
✅ Fargate Security Group (allows traffic ONLY from ALB)
✅ Proper inbound/outbound rule
✅ Production-ready security

Let's add your smart locks 🔐

What you'll build today​

Two security groups:

Security GroupForAllows InboundAllows Outbound
ALB-SGLoad BalancerHTTP (80) + HTTPS (443) from anywhereAll traffic
Fargate-SGAI ContainersPort 6060 from ALB-SG onlyAll traffic

This creates a security chain.

Internet → ALB-SG (post 80/443) → Fargate-SG (port 6060) → AI agent container

Anyone trying to bypass the ALB gets blocked ✅

What you'll learn​

  • What Security Groups are (and how they work)
  • The difference between inbound and outbound rules
  • How to reference one Security Group from another
  • Why "allow all outbound" is safe for containers
  • Best practices for production security
This advent calendar is completely free.

But if you want:

✅ Complete codebase (one clean repo)
✅ Complete walkthroughs
✅ Support when stuck
✅ Production templates
✅ Advanced features

Join the waitlist for the full course (launching February 2026):

Building something with AI calling? Let's chat about your use case!
Schedule a free call ↗ - no pitch, just two builders talking.

Time required​

15 minutes (2 Security Groups + rules)

Prerequisites​

✅ Completed Day 3 (VPC) ↗
✅ Completed Day 4 (Subnets) ↗
✅ Completed Day 5 (NAT Gateway) ↗
✅ Completed Day 6 (Route Tables) ↗
✅ Access to AWS Console

Understanding Security Groups (3-minute primer)​

What is a Security Group?​

Security Group = A virtual firewall that controls inbound and outbound traffic

Every resource in AWS (EC2, RDS, ALB, Fargate, etc. needs) to be attached to at least one Security Group, SG.

Think of it like a smart lock on a building:

Each building has doors
Each door has rules
The lock decides who can enter and through which door

info

Security Groups attach to resources, not subnets

Inbound vs outbound rules​

Security Groups have two types of rules:

1. Inbound Rules (incoming traffic)

  • Who can connect to this resource?
  • Example: "Allow HTTP from anywhere"

2. Outbound Rules (outgoing traffic)

  • What can this resource connect to?
  • Example: "Allow all traffic to anyone"

Example for a web server:

DirectionPortSource/DestinationMeaning
Inbound800.0.0.0/0Anyone can access HTTP
Inbound4430.0.0.0/0Anyone can access HTTPS
OutboundAll0.0.0.0/0Server can reach anywhere
What does 0.0.0.0/0 mean?

Quick recap from Day 6:

0.0.0.0/0 = All IP addresses on the internet

Think of it as: "Everything outside this VPC"

Security Groups are stateful​

This is important:
Stateful = If you allow inbound traffic, the response is automatically allowed back out

Example:

  1. You allow inbound HTTP (port 80)
  2. Someone masked a request to port 80
  3. Your server responds
  4. The response is automatically allowed out (even if you have no outbound rule for it)

Default behavior: DENY ALL​

Security Groups default to:
❌ Deny all inbound (nothing can connect)
✅ Allow all inbound (you can connect to anything)

This is secure by default:

  • You must explicitly allow inbound traffic
  • Outbound is open (containers need to reach APIs)

Referencing security groups​

Here's the cool part:
You can reference one Security Group from another.

Instead of:

"Allow port 6060 from 0.0.0.0/0" (anyone)

You can do:

"Allow port 6060 from sg-xxxx" (ALB-SG only)

This means:

✅ Load balancer (with ALB-SG) can connect
❌ Random internet traffic cannot Connect
❌ Even if they know your container's IP

This is how we secure Fargate containers.

Step 1: Create ALB Security Group​

Let's start with the Security Group for the load balancer.

Open the AWS Console ↗

In the search bar, type VPC and click VPC from the dropdown:

In the search bar at the top, type VPC and click VPC from the dropdown

In the search bar at the top, type VPC and click VPC from the dropdown

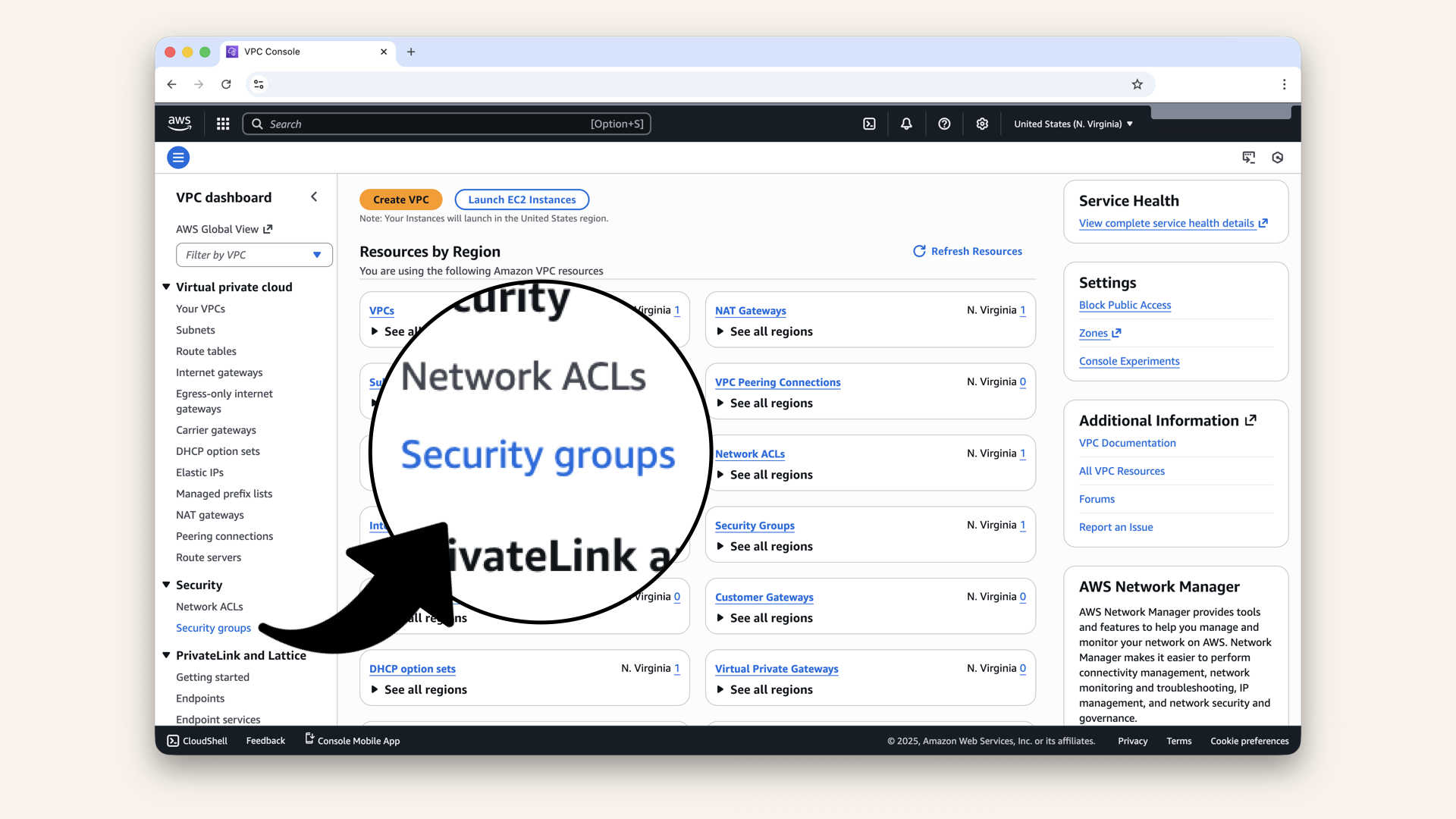

Click Security Groups in the left menu:

Click Security Groups in the left menu

Click Security Groups in the left menu

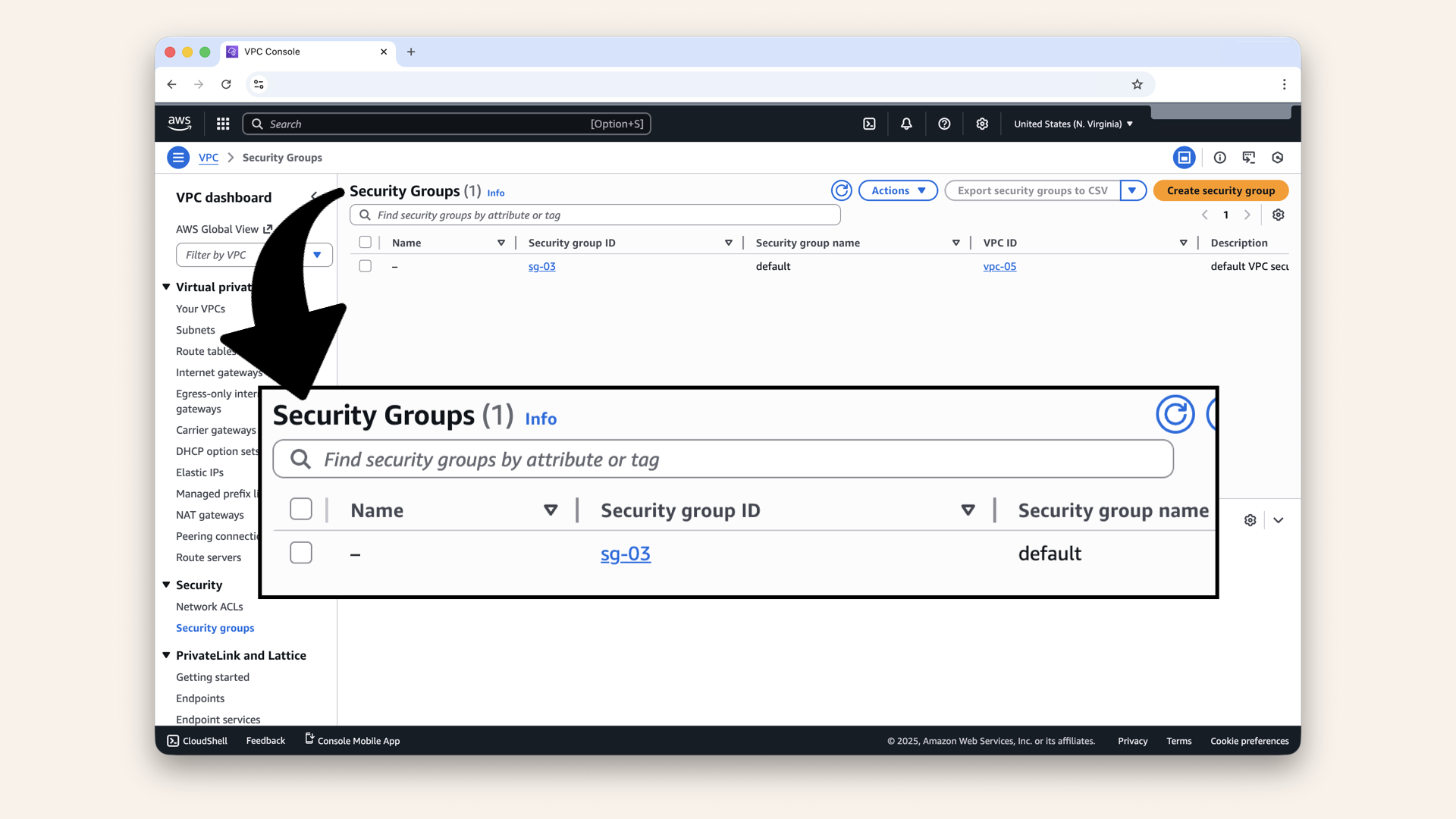

You'll see existing Security Groups (AWS creates a default one):

You'll see existing Security Groups (AWS creates a default one)

You'll see existing Security Groups (AWS creates a default one)

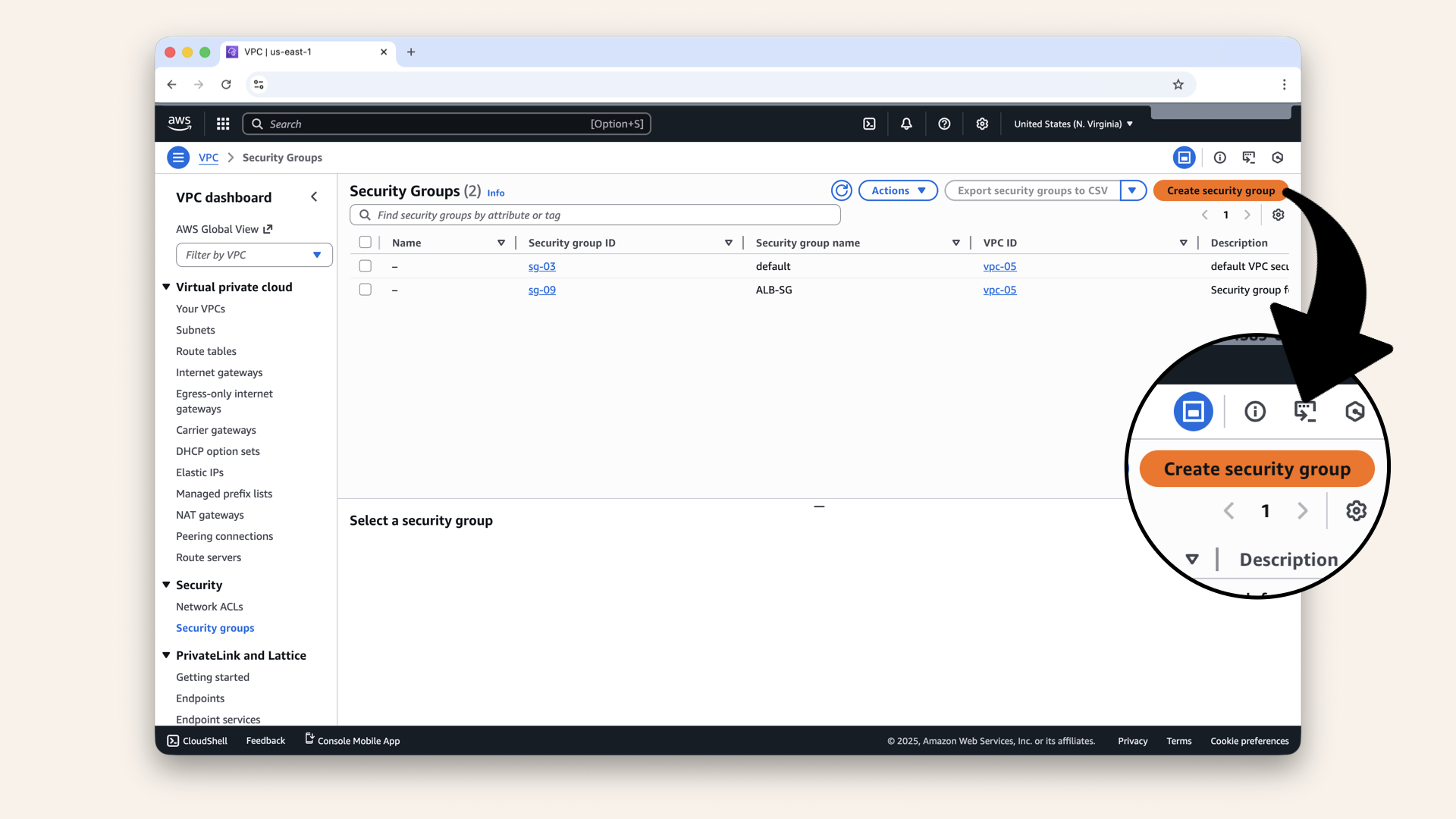

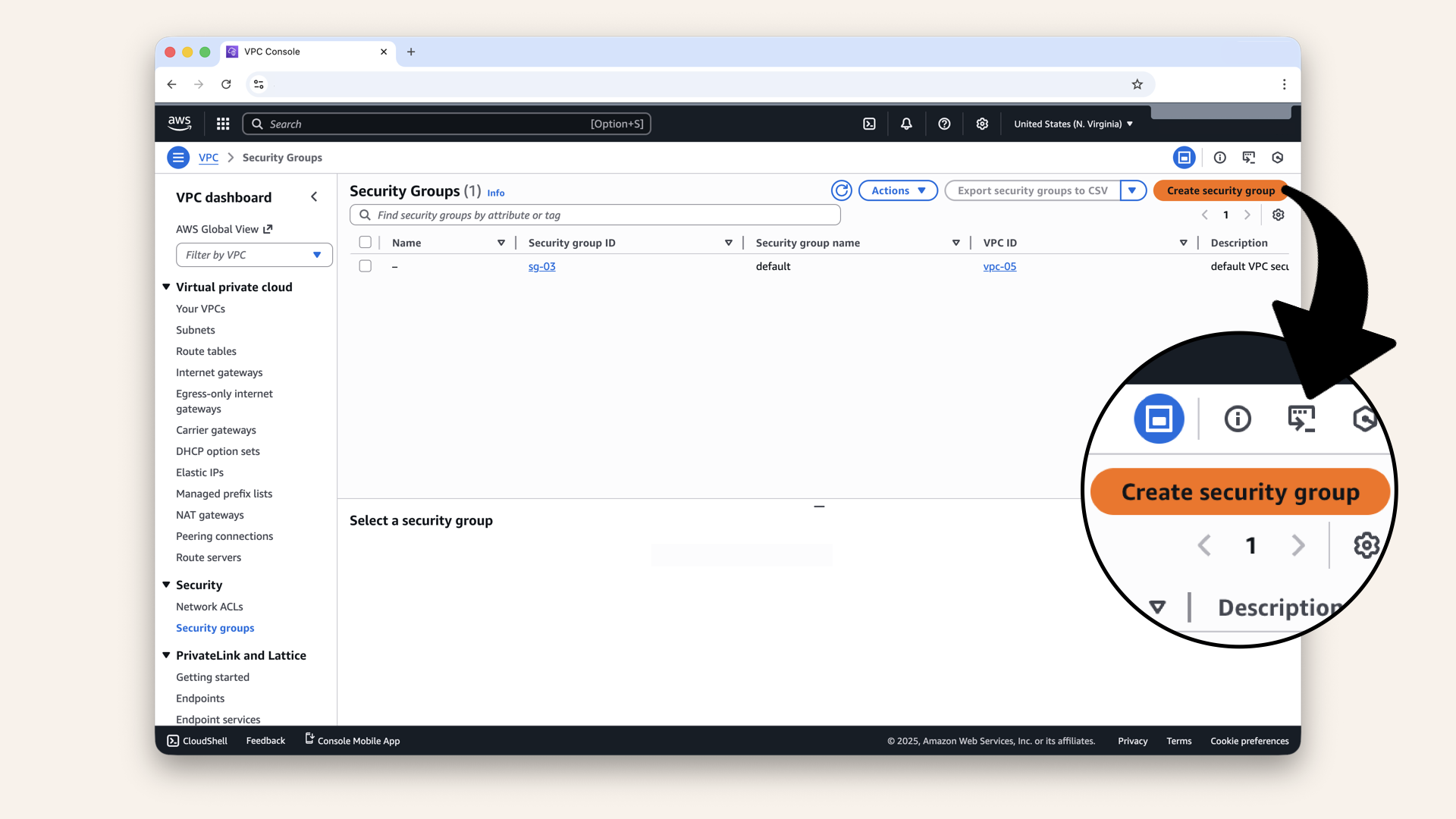

Click Create security group:

Click Create security group

Click Create security group

Fill in the basic details:

tip

Click the icon

and copy each value from the table below ⬇

FieldValue
Security group name
Description
VPCSelect your VPC

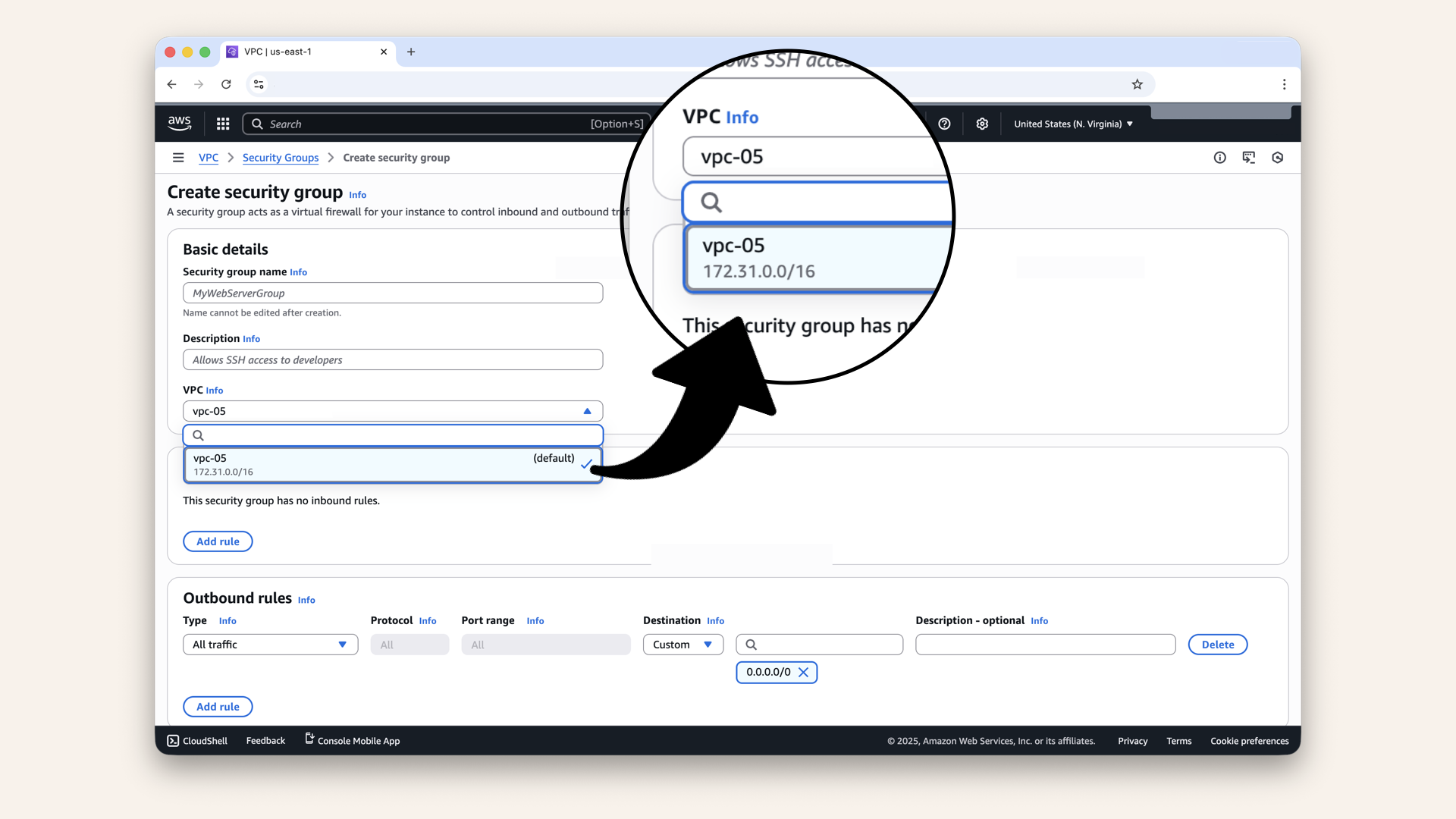

Select your VPC from the dropdown:

Select your VPC from the dropdown

Select your VPC from the dropdown

Step 2: Add inbound rules to ALB-SG​

New we'll add rules for HTTP and HTTPS.

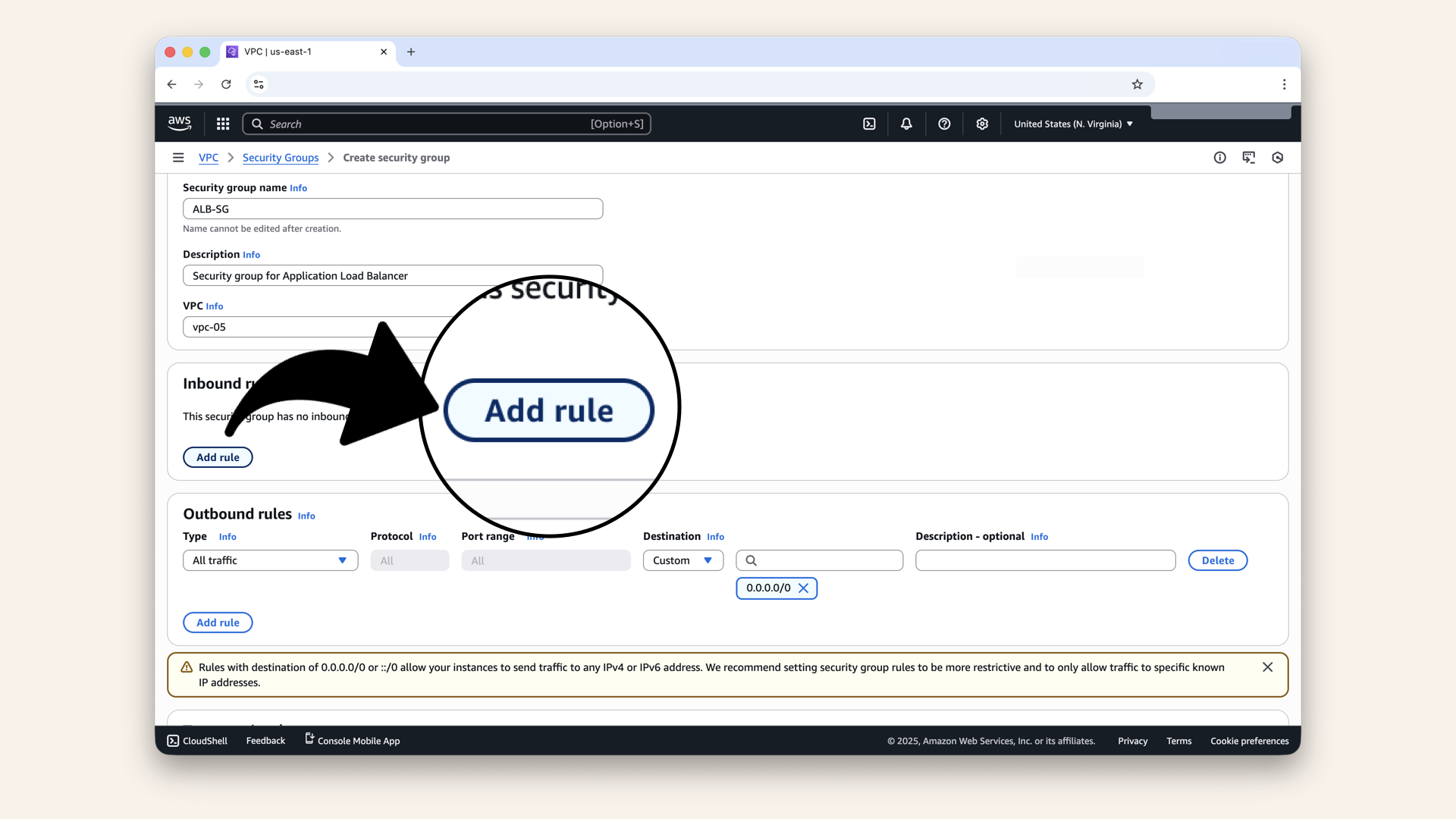

Scroll down to Inbound rules, then click Add rule:

Scroll down to Inbound rules, then click Add rule

Scroll down to Inbound rules, then click Add rule

Add the first rule (HTTP):

FieldValueMeaning
TypeHTTPPort 80
SourceAnywhere-IPv4 (0.0.0.0/0)Anyone can access

Add the first rule (HTTP)

Add the first rule (HTTP)

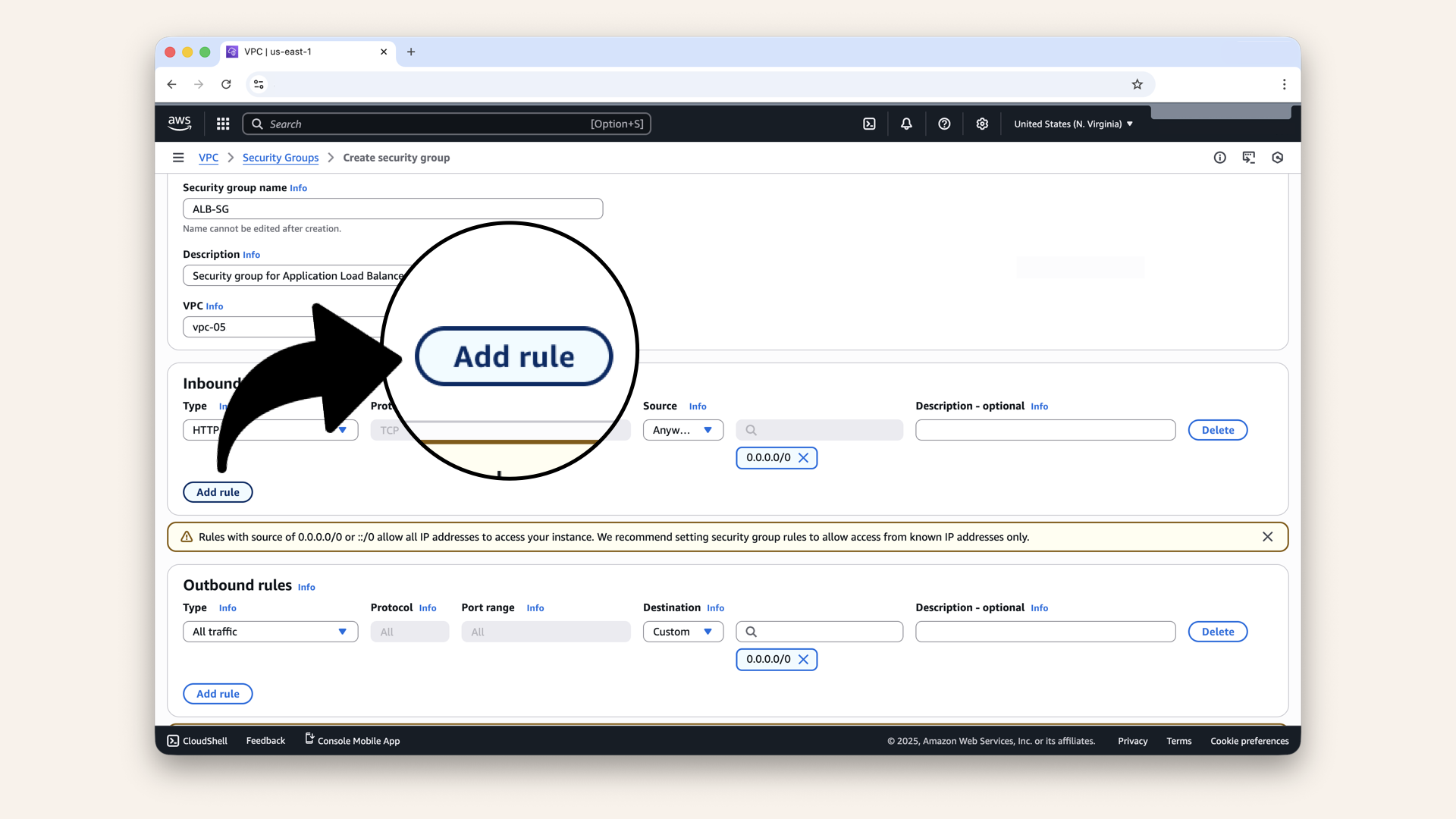

Click Add rule again:

Click Add rule again

Click Add rule again

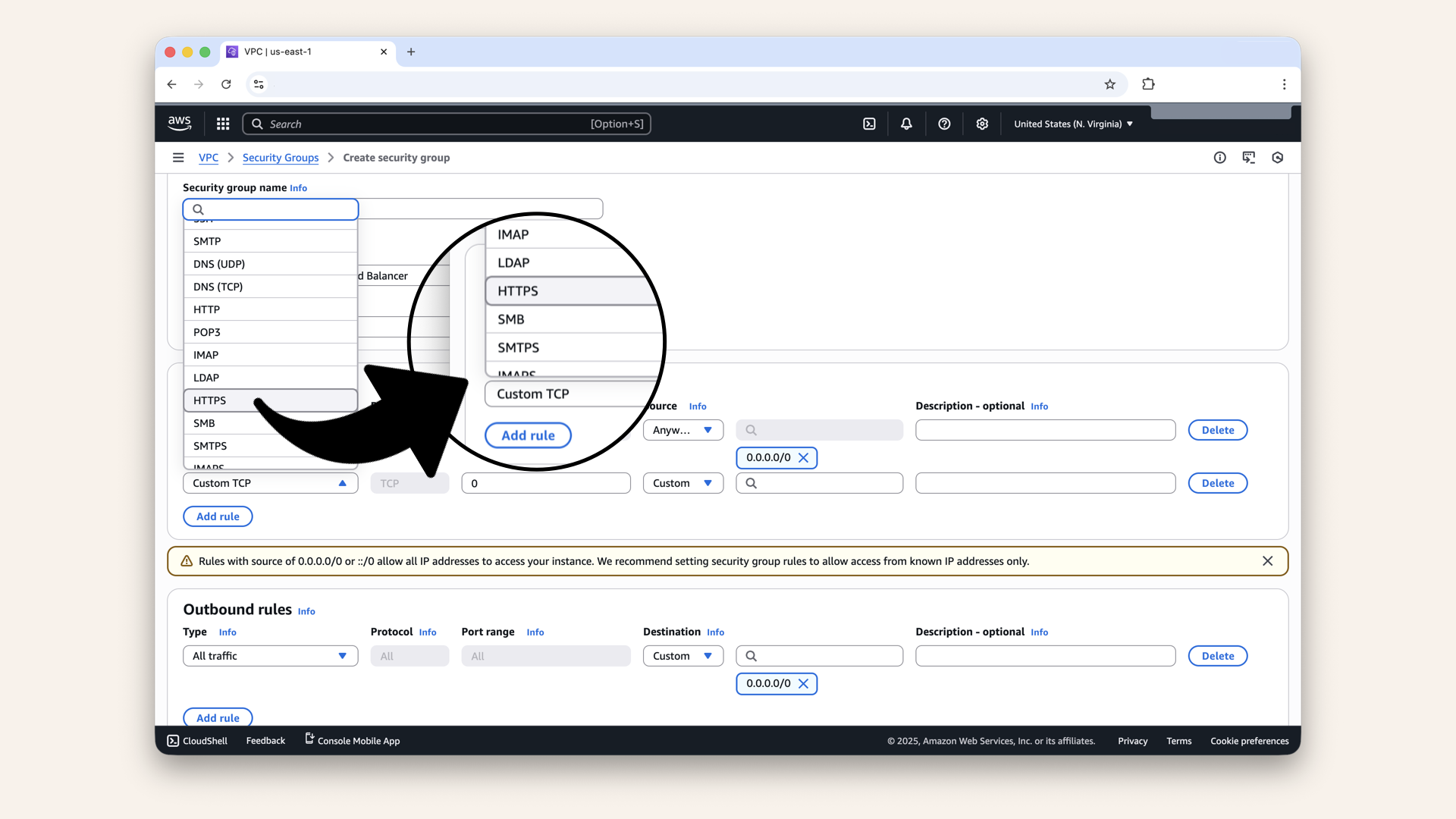

Add the second rule:

FieldValueMeaning
TypeHTTPSPort 443
SourceAnywhere-IPv4 (0.0.0.0/0)Anyone can access

Add HTTPS rule

Add HTTPS rule

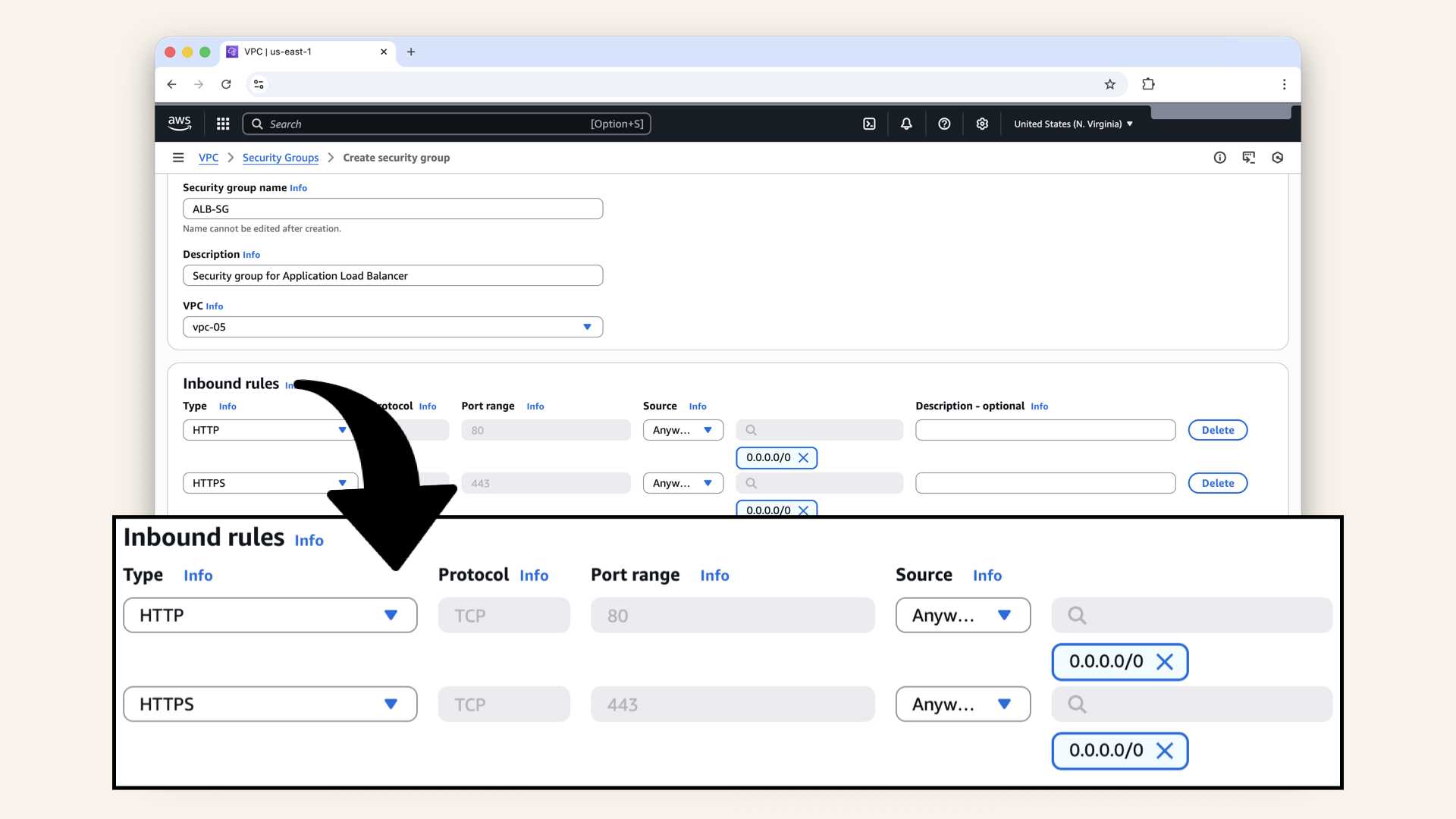

You should now have 2 inbound rules:

  • target: HTTP → port 80 → source: 0.0.0.0/0
  • target: HTTPS → port 443 → source: 0.0.0.0/0

You should now have 2 inbound rules

You should now have 2 inbound rules

Step 3: Configure outbound rules for ALB-SG​

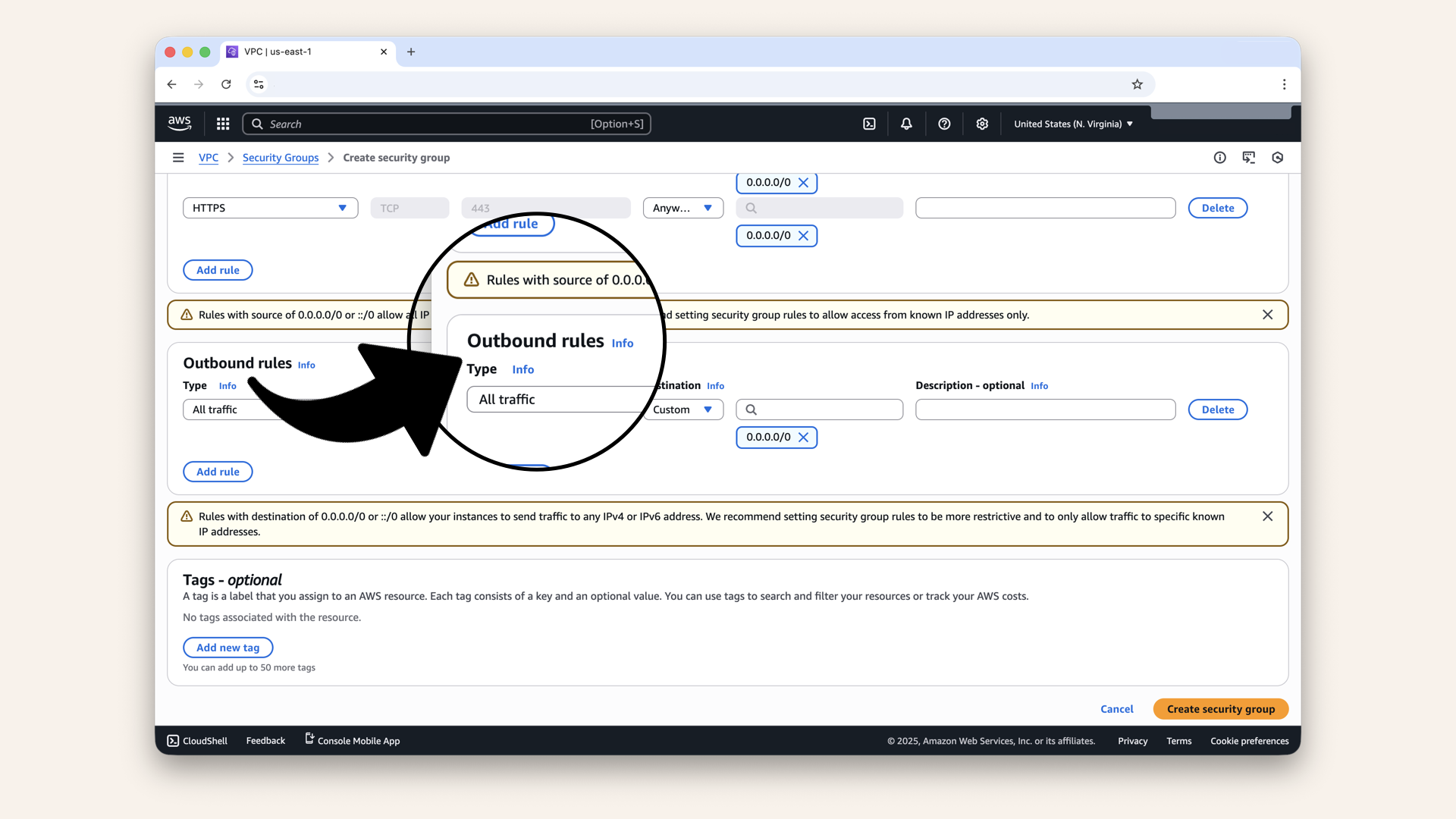

Scroll down to Outbound rules:

Scroll down to Outbound rules

Scroll down to Outbound rules

You'll see a default rule:

  • Type: All traffic
  • Destination: Custom 0.0.0.0/0

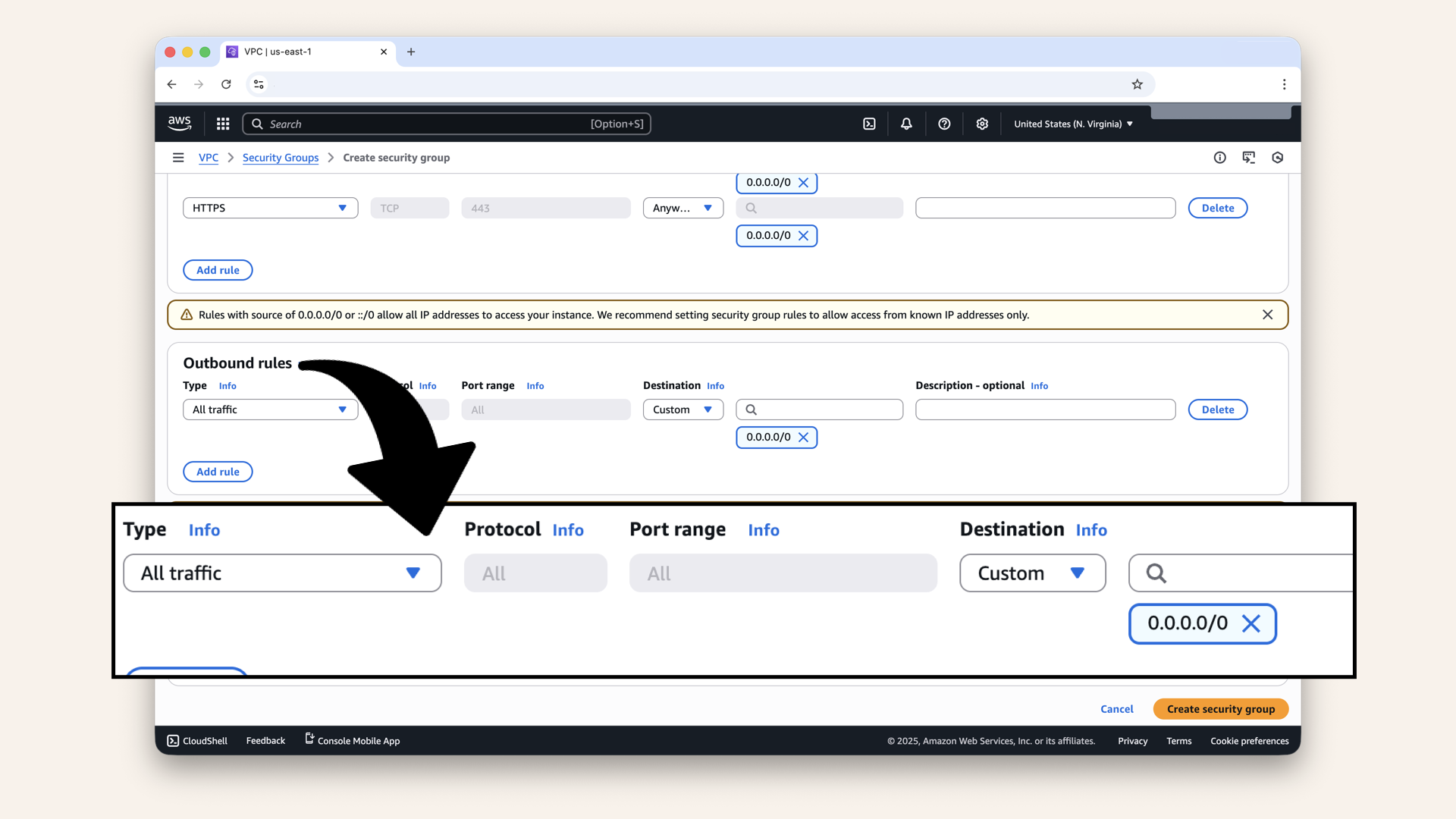

Keep this default rule

The load balancer needs to send traffic to Fargate containers.

Keep this default rule

Keep this default rule

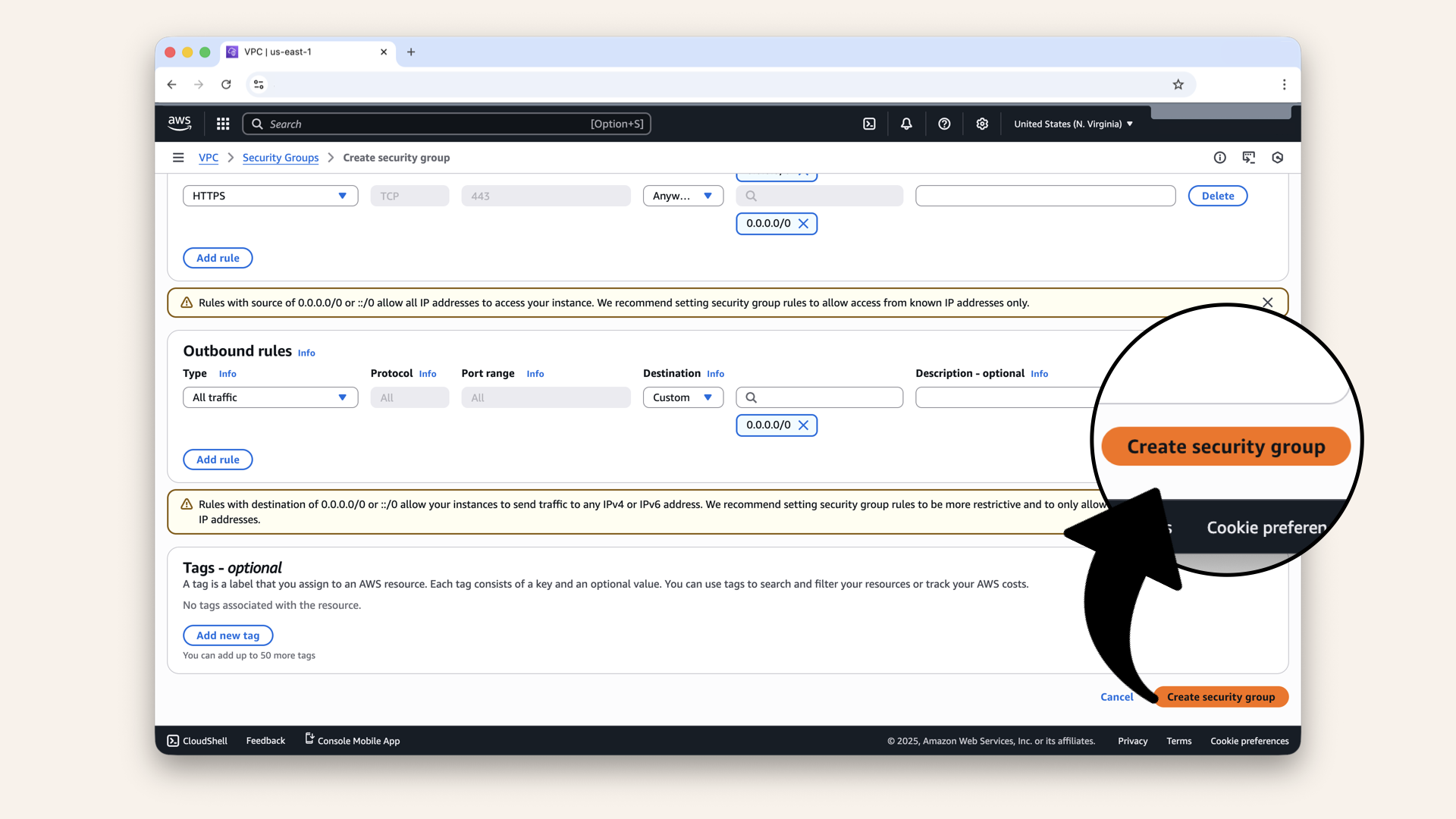

Click Create security group:

Click Create security group

Click Create security group

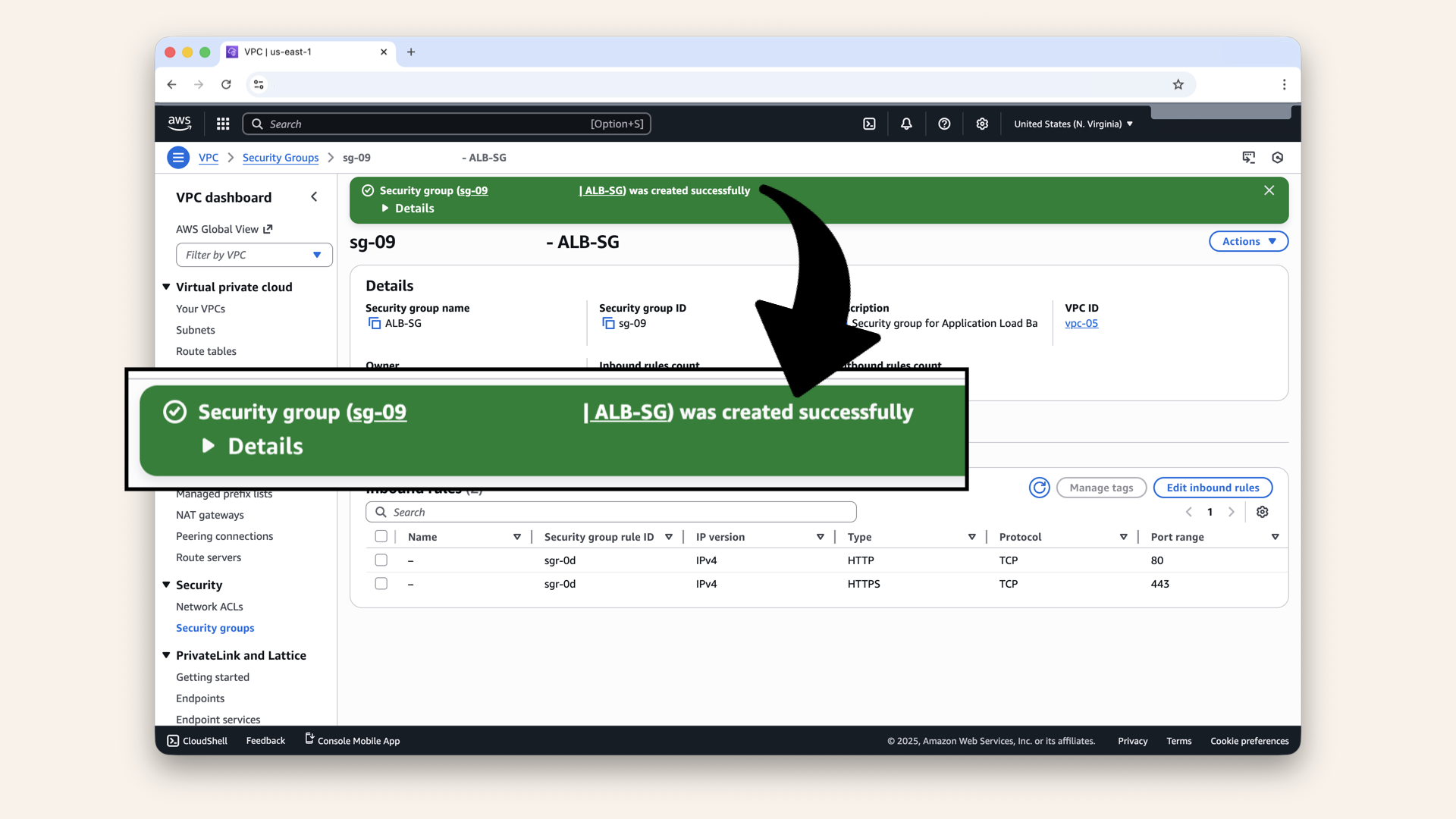

✅ You should see: "Security group created successfully":

You should see: Security group created successfully

You should see: "Security group created successfully"

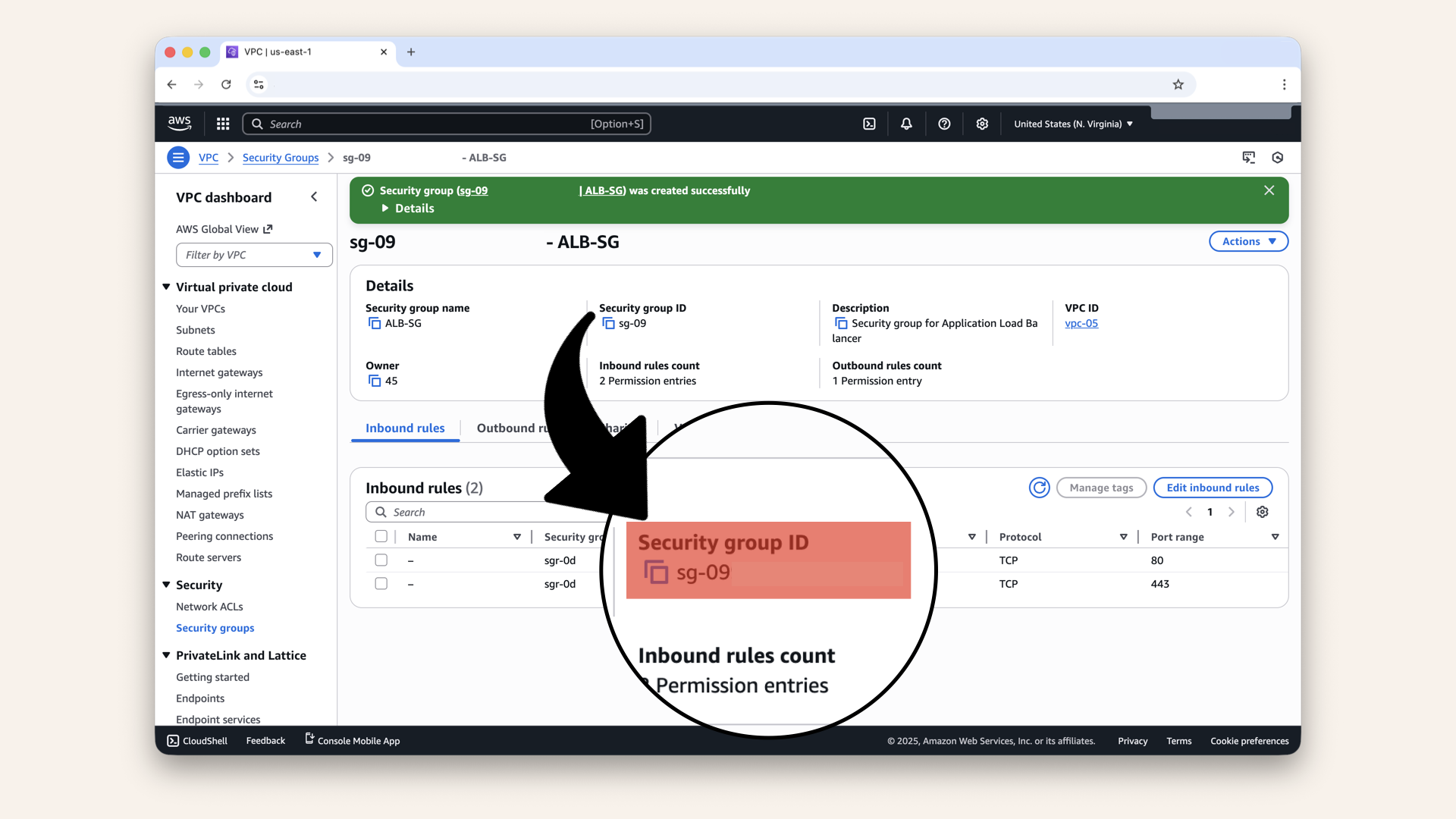

Note the Security Group ID

Note the Security Group ID (e.g. sg-0abc123def456)

We'll need it for the next step:

Note the Security Group ID - well need it for the next step

Note the Security Group ID - we'll need it for the next step

Step 4: Create Fargate security group​

Now let's create the Security Group for your AI agent containers.

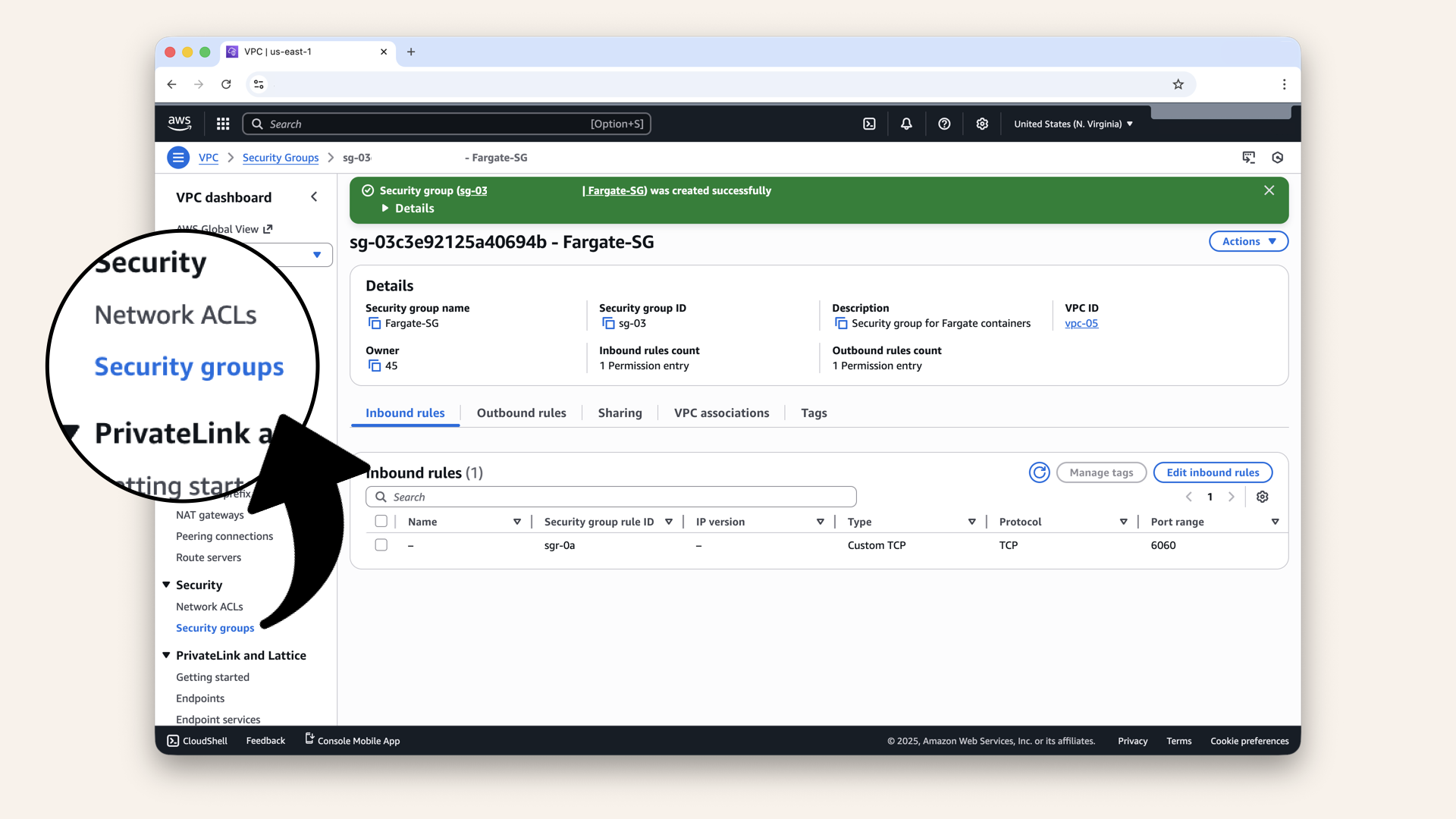

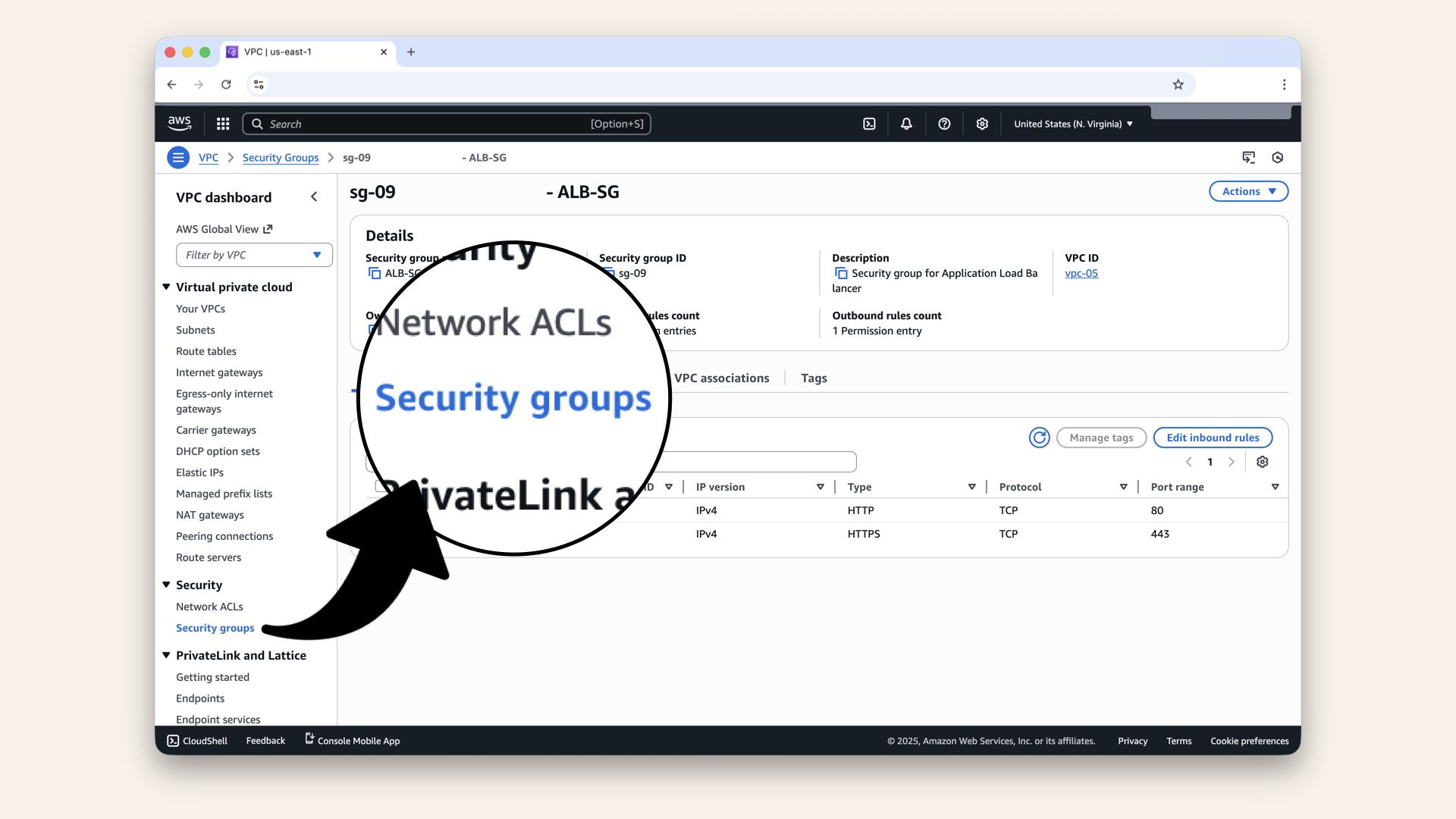

Click Security groups in the left menu to get back to the Security Groups main menu:

Click Security groups in the left menu to get back to the Security Groups menu

Click Security groups in the left menu to get back to the Security Groups menu

Click Create security group:

Click Create security group

Click Create security group

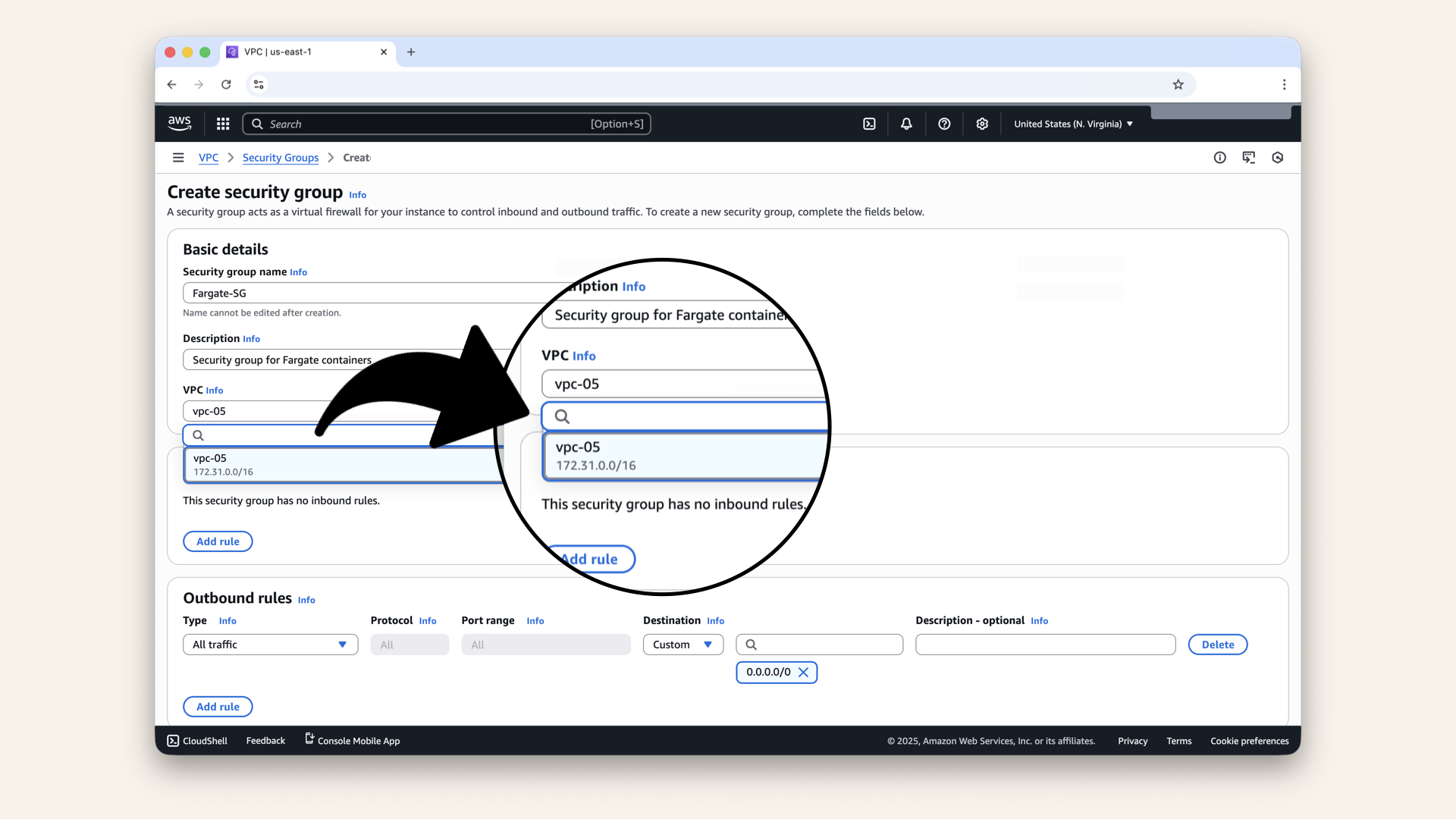

Fill in the basic details:

FieldValue
Security group name
Description
VPCSelect your VPC

Fill in the basic details and select your VPC

Fill in the basic details and select your VPC

Step 5: Add inbound rules to Fargate-SG​

This is the important part:

We'll allow traffic only from ALB-SG - the previous security group we just created (not from the internet).

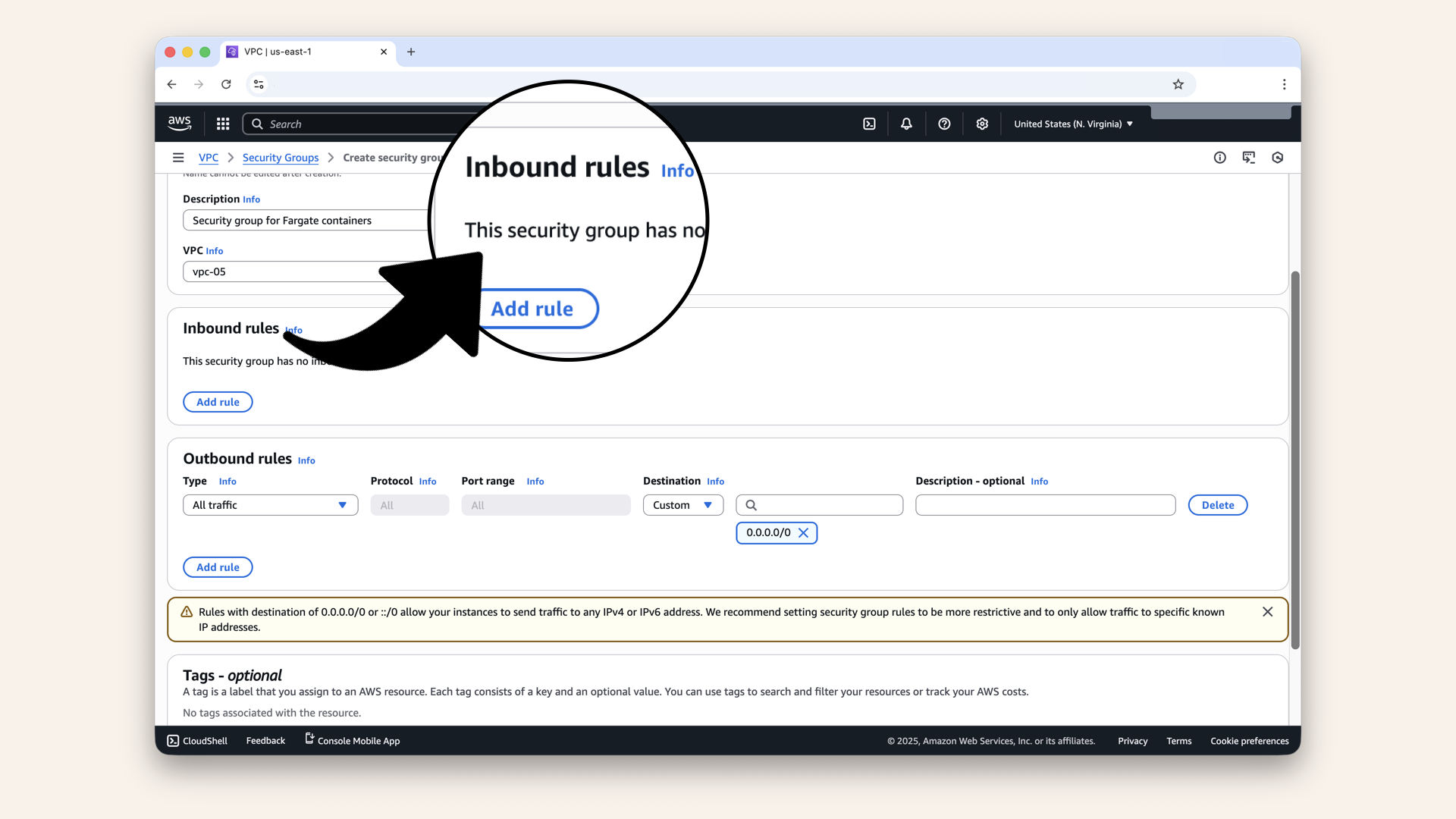

Scroll down to Inbound rules:

Scroll down to Inbound rules

Scroll down to Inbound rules

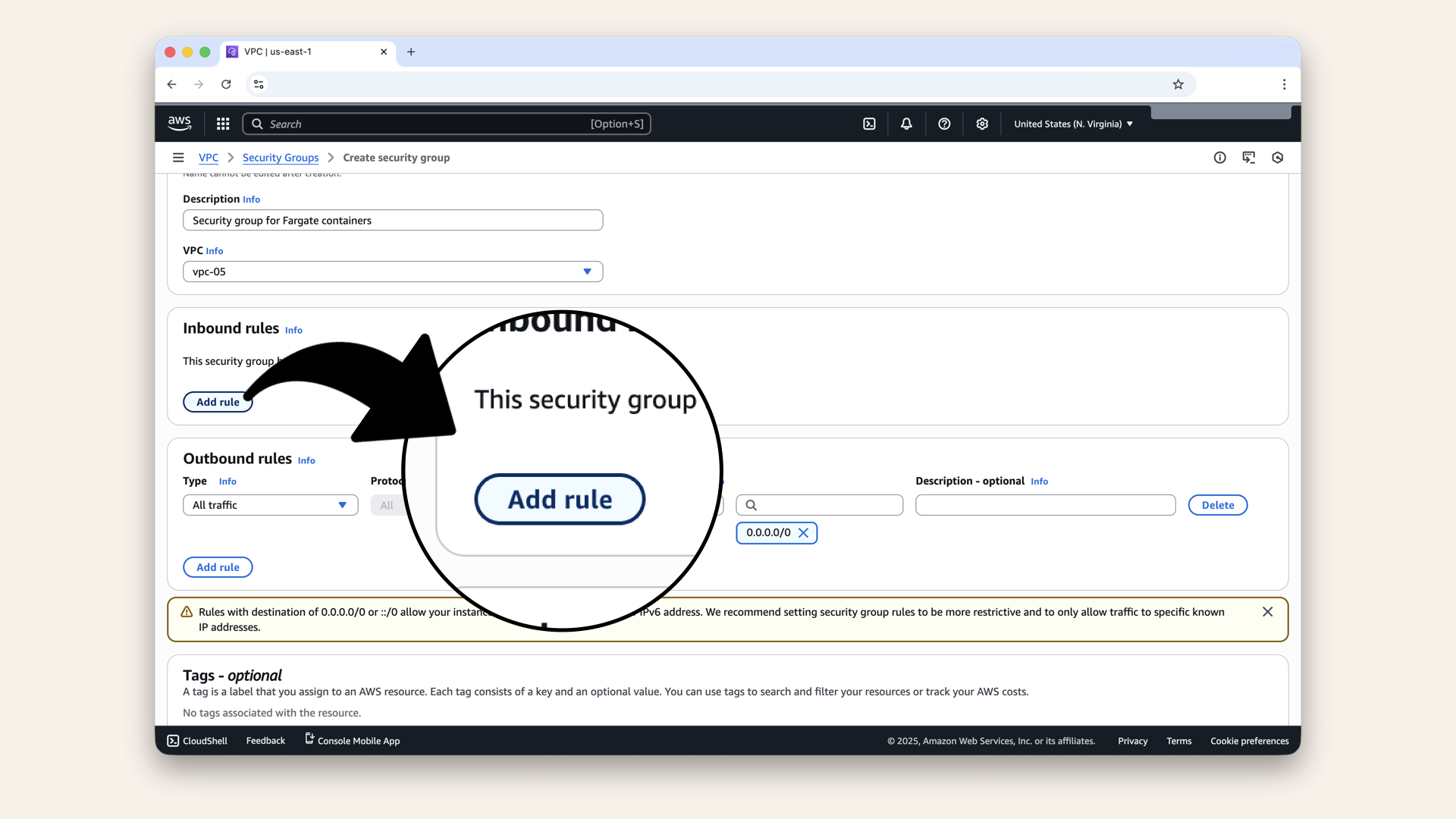

Click Add rule:

Click Add rule

Click Add rule

Add this new rule:

FieldValueMeaning
TypeCustom TCPPort 6060
Port rangeOur app's port
SourceCustom → Select ALB-SGOnly ALB can connect

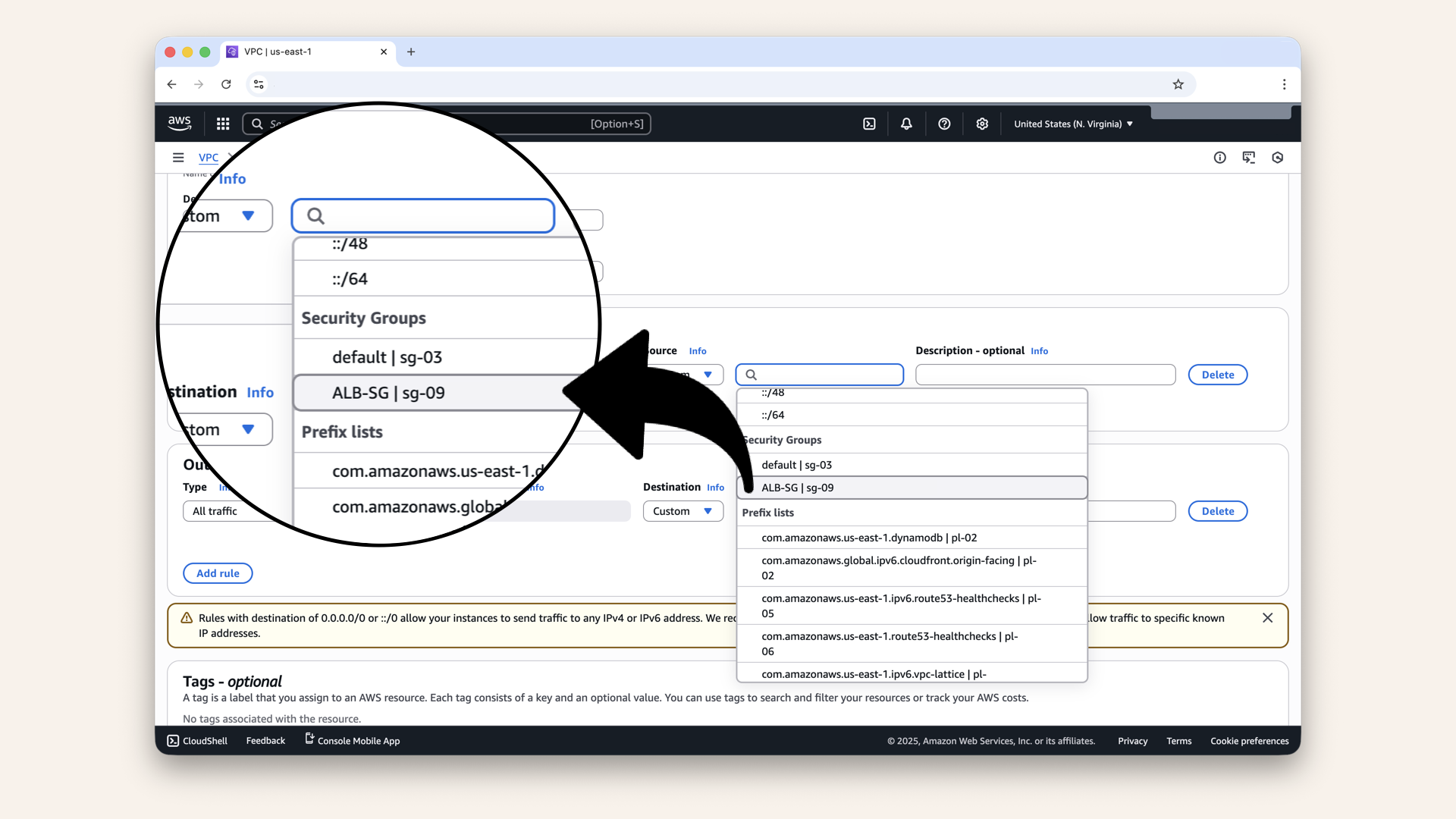

Select the security group we just created, ALB-SG, from the source dropdown:

Select the security group we just created: ALB-SG, from the source dropdown

Select the security group we just created: ALB-SG, from the source dropdown

Here's what this means:

✅ Load balancer (with ALB-SG) → Can connect to port 6060
❌ Internet traffic → Can't connect to port 6060
❌ Random AWS resources → Can't connect

Only the ALB is on the list.

Step 6: Configure outbound rules for Fargate-SG​

Scroll down to Outbound rules:

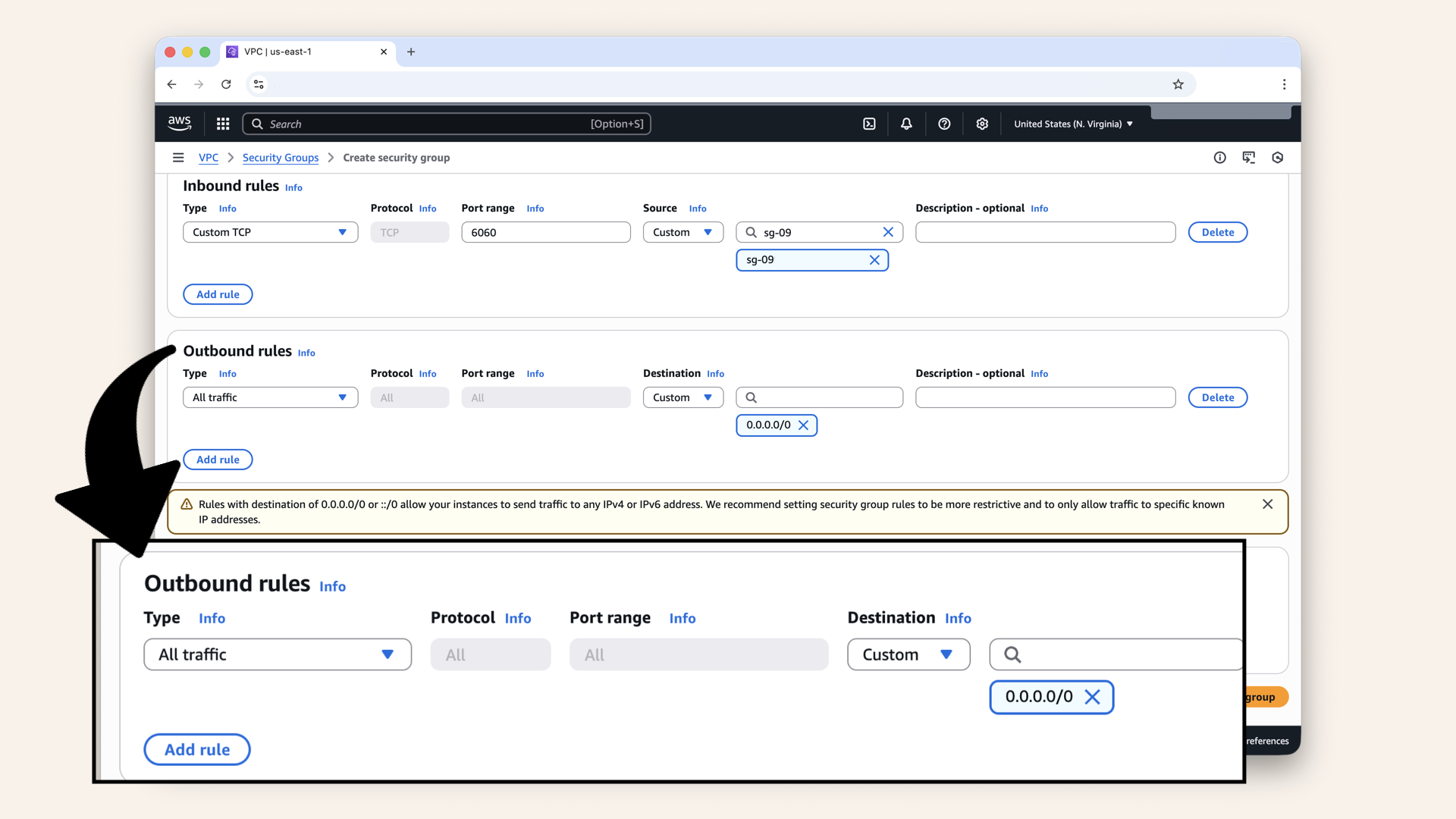

You will see the default rule, keep this rule

You'll see the default rule, keep this rule

You'll see the default rule:

  • Type: All traffic
  • Destination: 0.0.0.0/0
Keep this rule

Keep this rule

Your containers need to:

  • Call OpenAI API
  • Send audio to Twilio
  • Pull Docker images from ECR
  • Make any other API calls

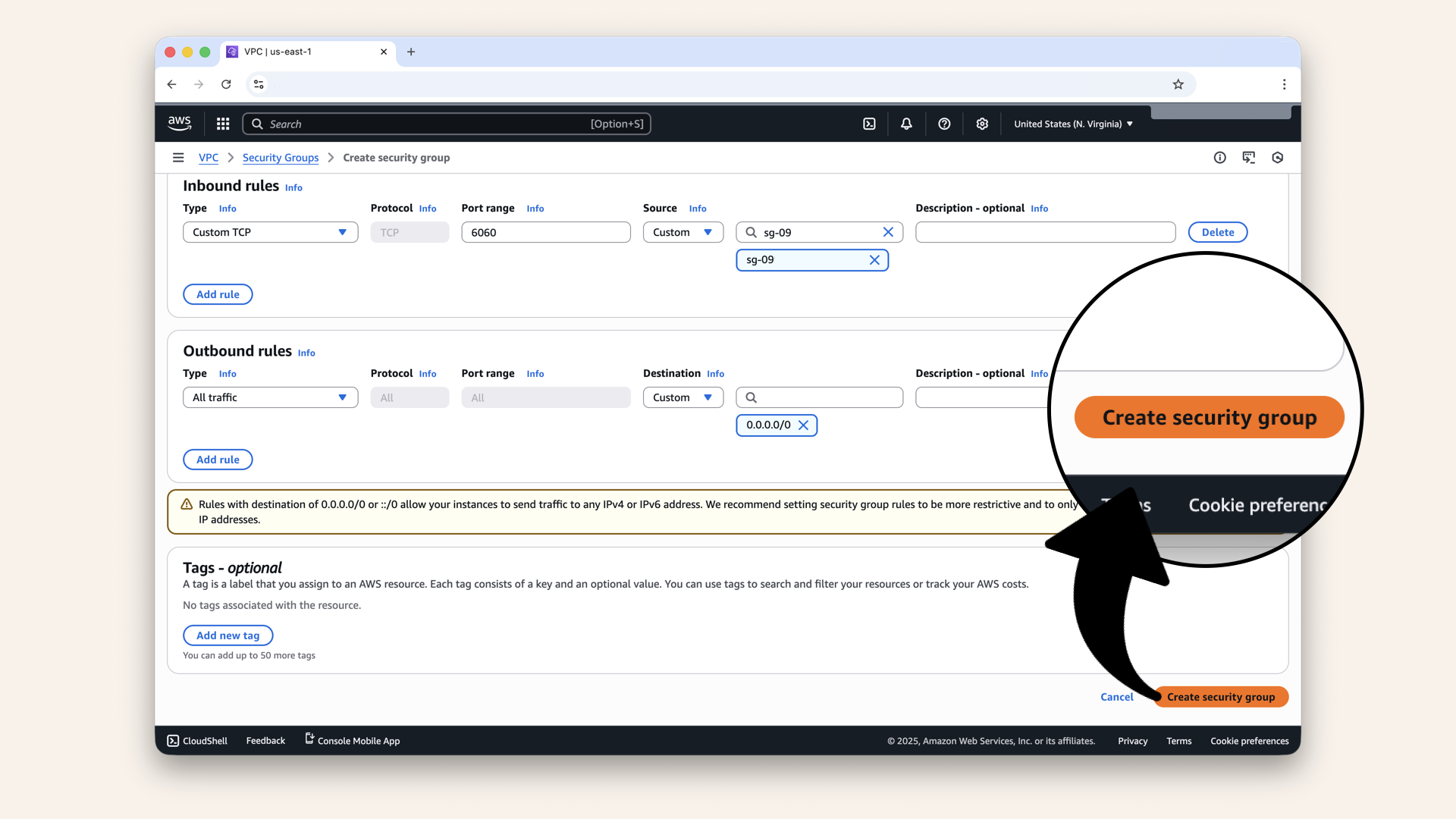

Click Create security group:

Click Create security group

Click Create security group

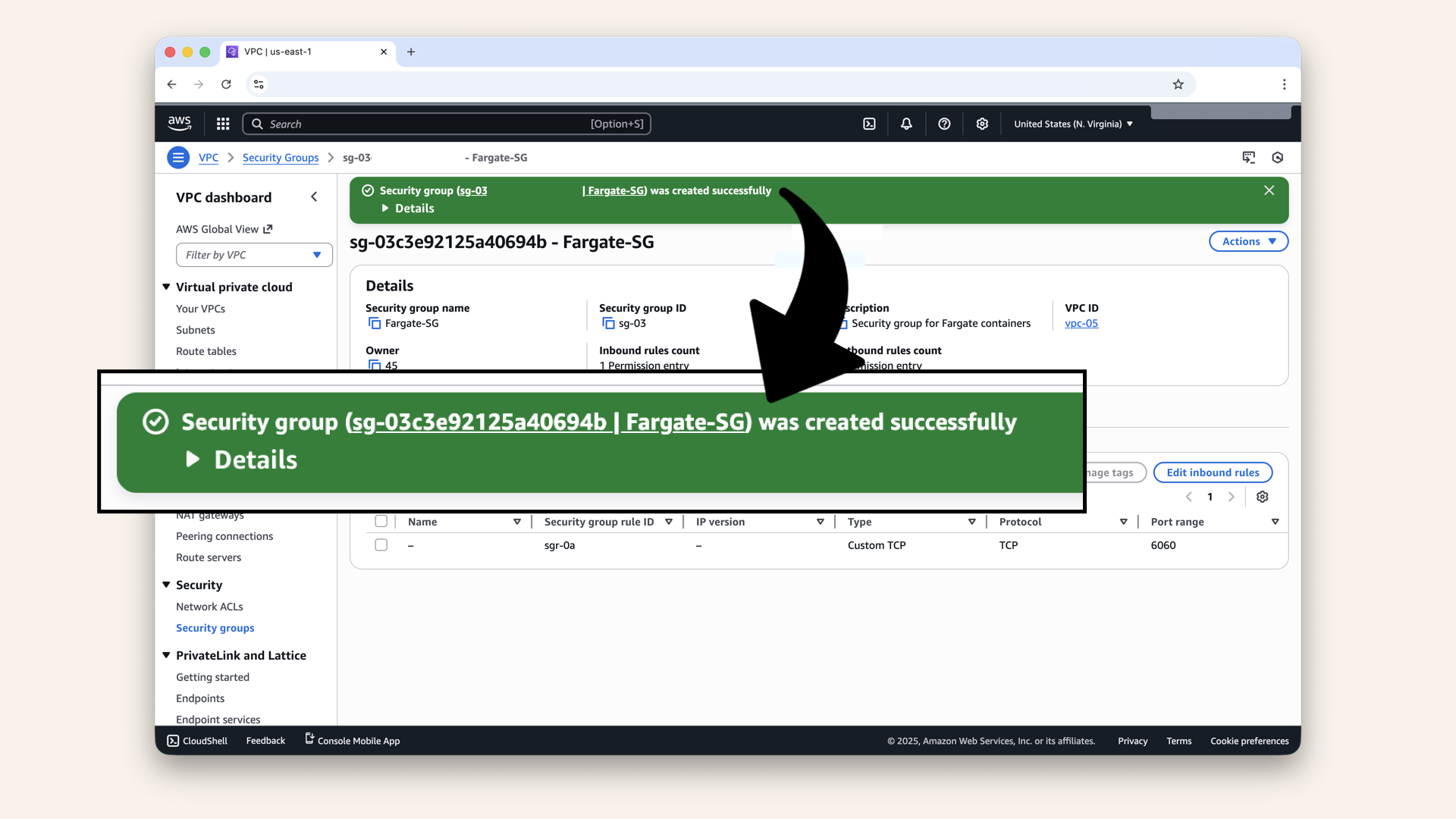

✅ You should see: "Security group created successfully":

You should see: Security group created successfully

You should see: "Security group created successfully"

Step 7: Verify your security groups​

Let's make sure everything is set up correctly.

Click Security groups in the left menu to get back to the Security Groups main menu:

Click Security groups in the left menu to get back to the Security Groups main menu

Click Security groups in the left menu to get back to the Security Groups main menu

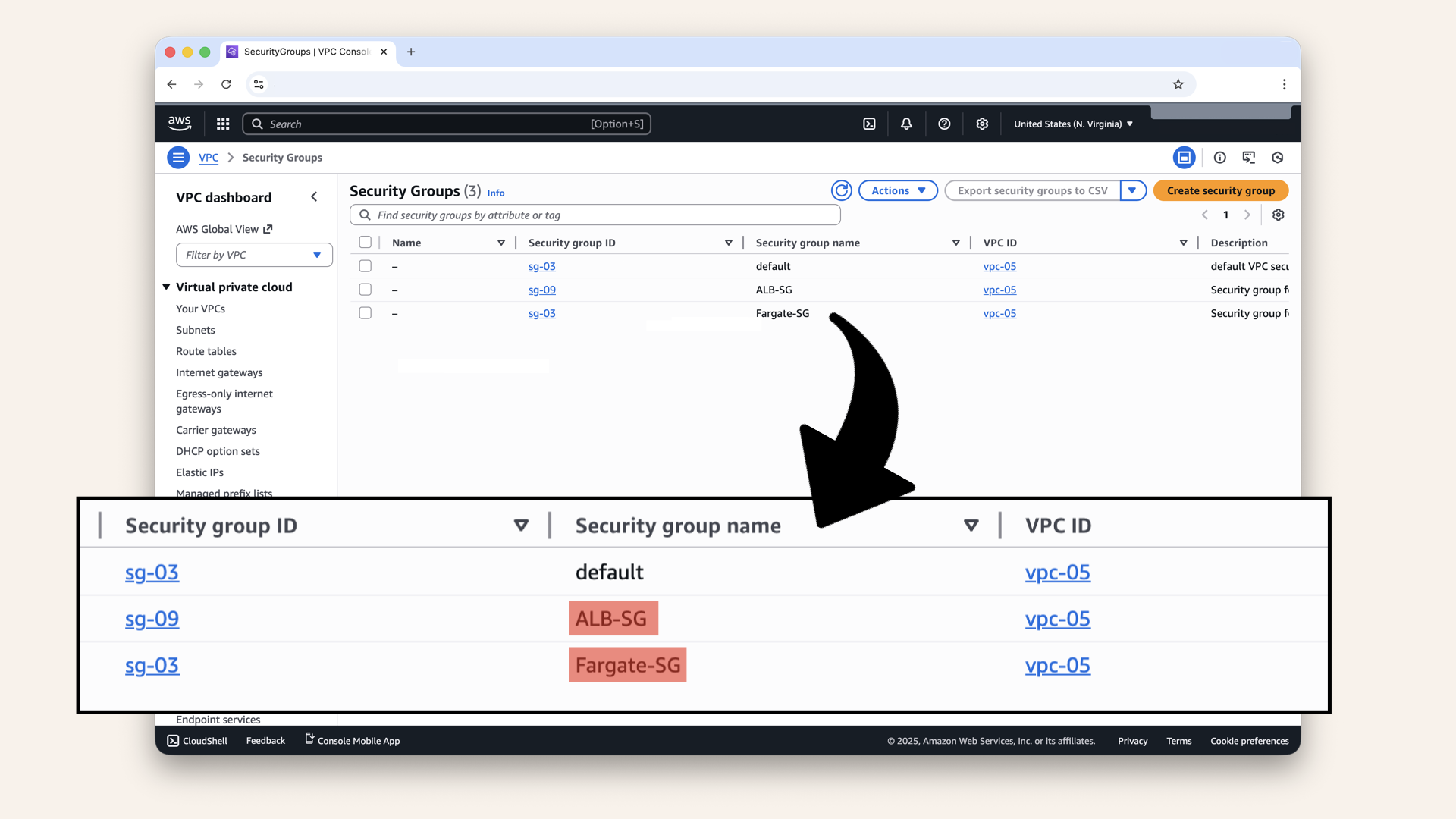

You should see two new Security Groups:

You should see two new Security Groups

You should see two new Security Groups

ALB-SG​

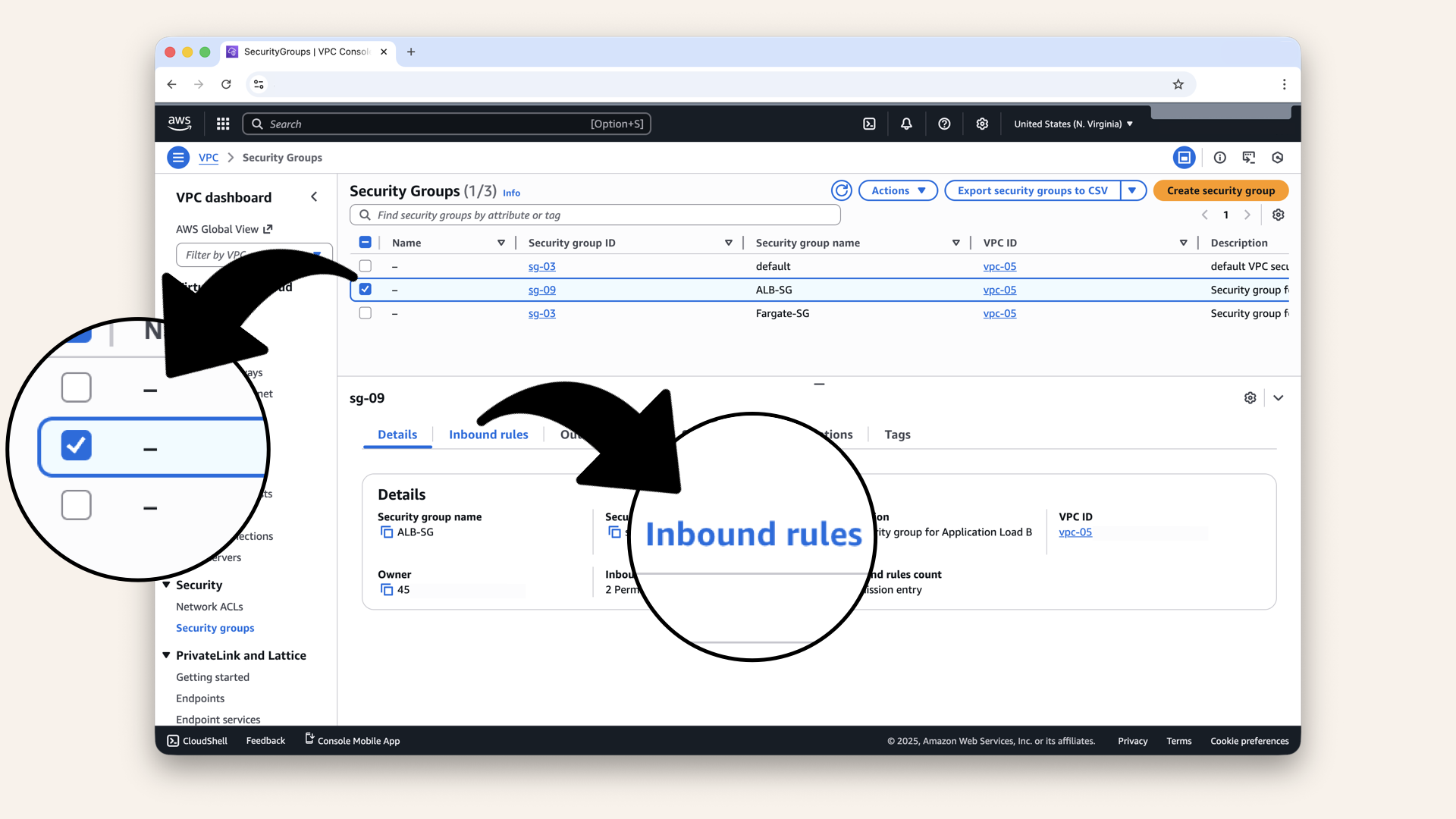

Select the ALB-SG from the checkboxes and click Inbound rules:

Select the ALB-SG from the checkboxes and click Inbound rules

Select the ALB-SG from the checkboxes and click Inbound rules

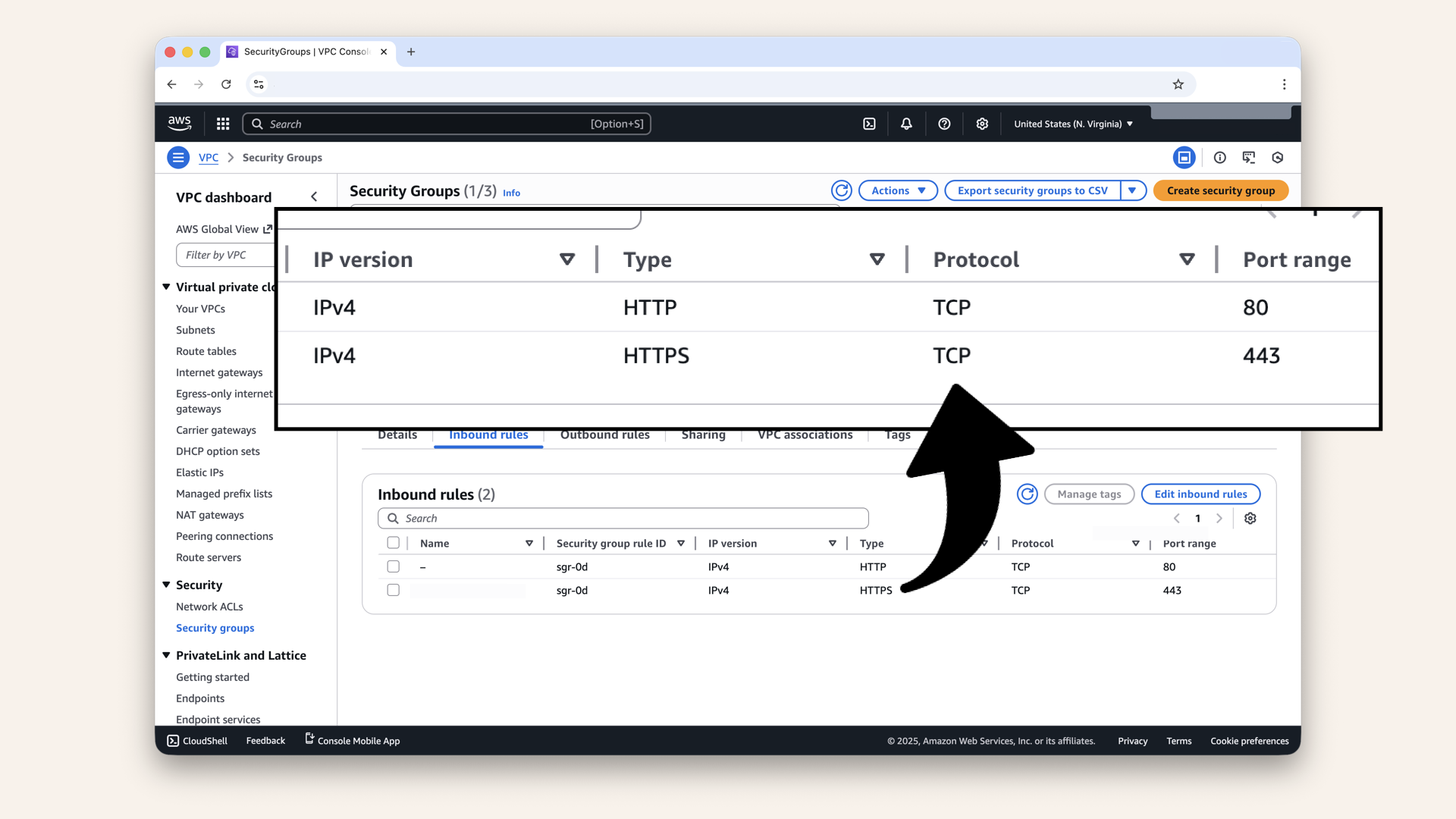

Confirm these ALB-SG inbound rules:

Inbound rules:

  • HTTP (80) from 0.0.0.0/0
  • HTTPS (443) from 0.0.0.0/0

Confirm these inbound rules

Confirm these ALB-SG inbound rules

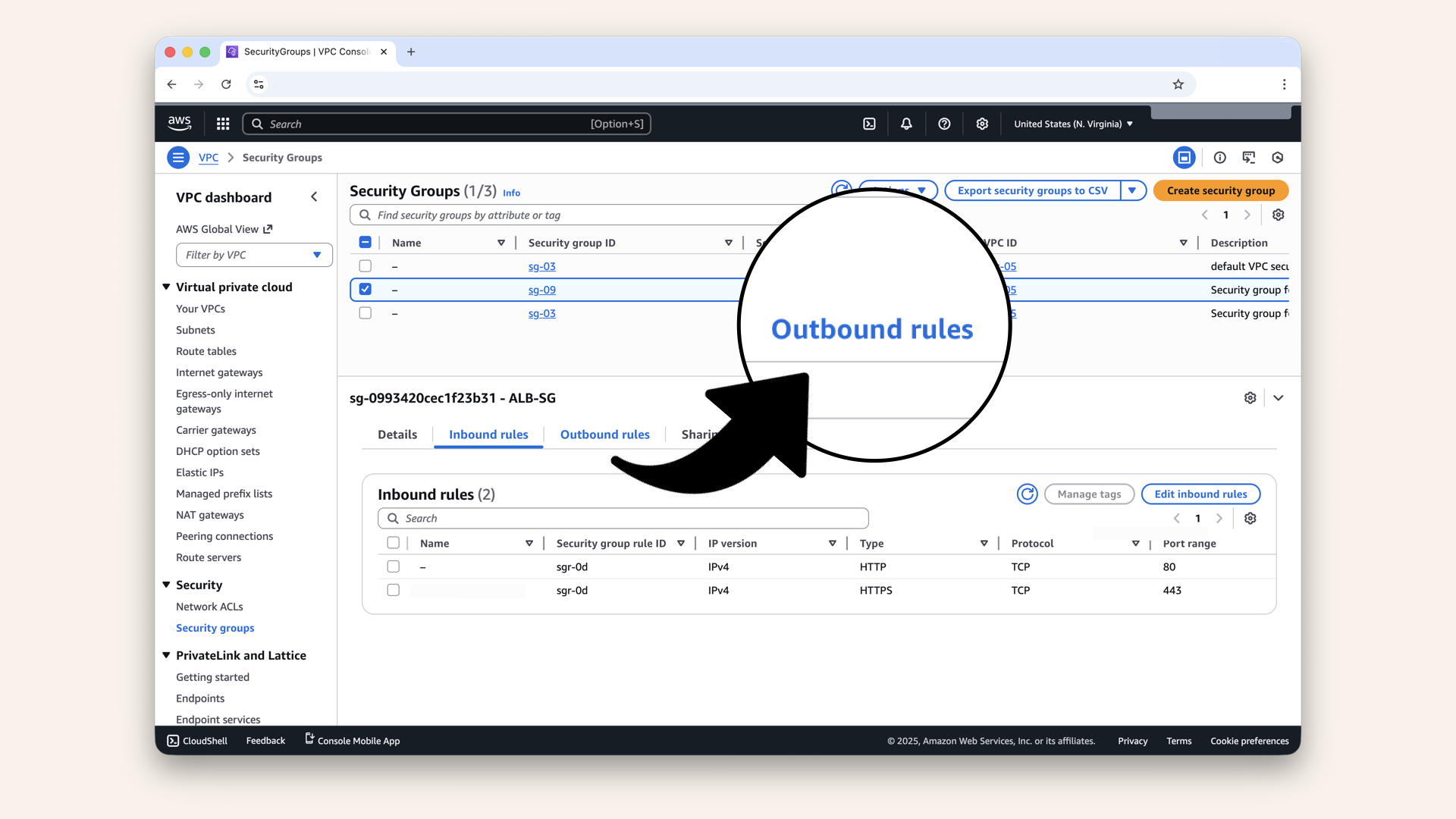

Click Outbound rules:

Click Outbound rules

Click Outbound rules

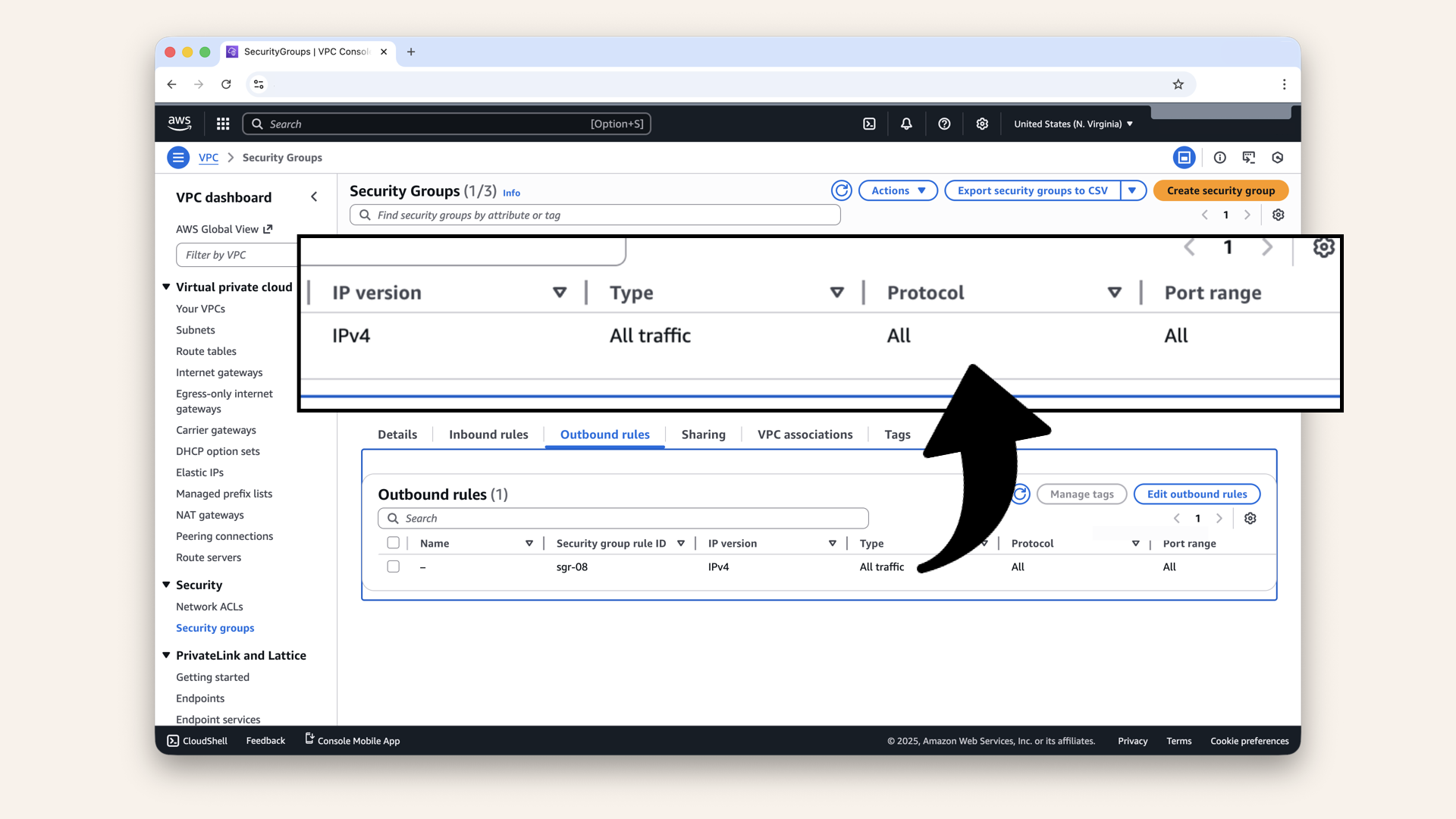

Confirm these ALB-SG outbound rules:

Outbound rules:

  • All traffic to 0.0.0.0/0

Confirm these outbound rules

Confirm these ALB-SG outbound rules

Fargate-SG​

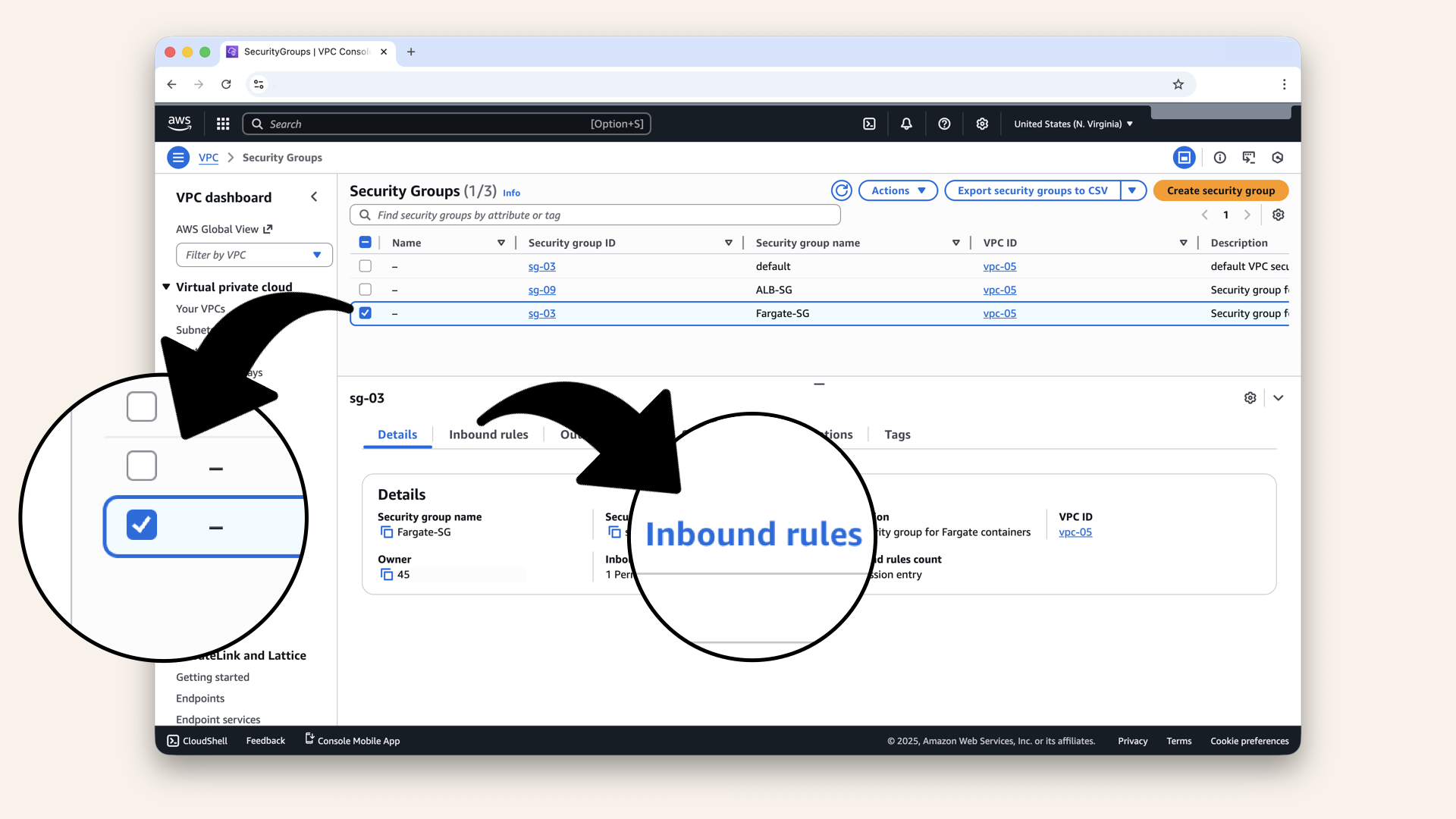

Select the Fargate-SG from the checkboxes and click Inbound rules:

Select the Fargate-SG from the checkboxes and click Inbound rules

Select the Fargate-SG from the checkboxes and click Inbound rules

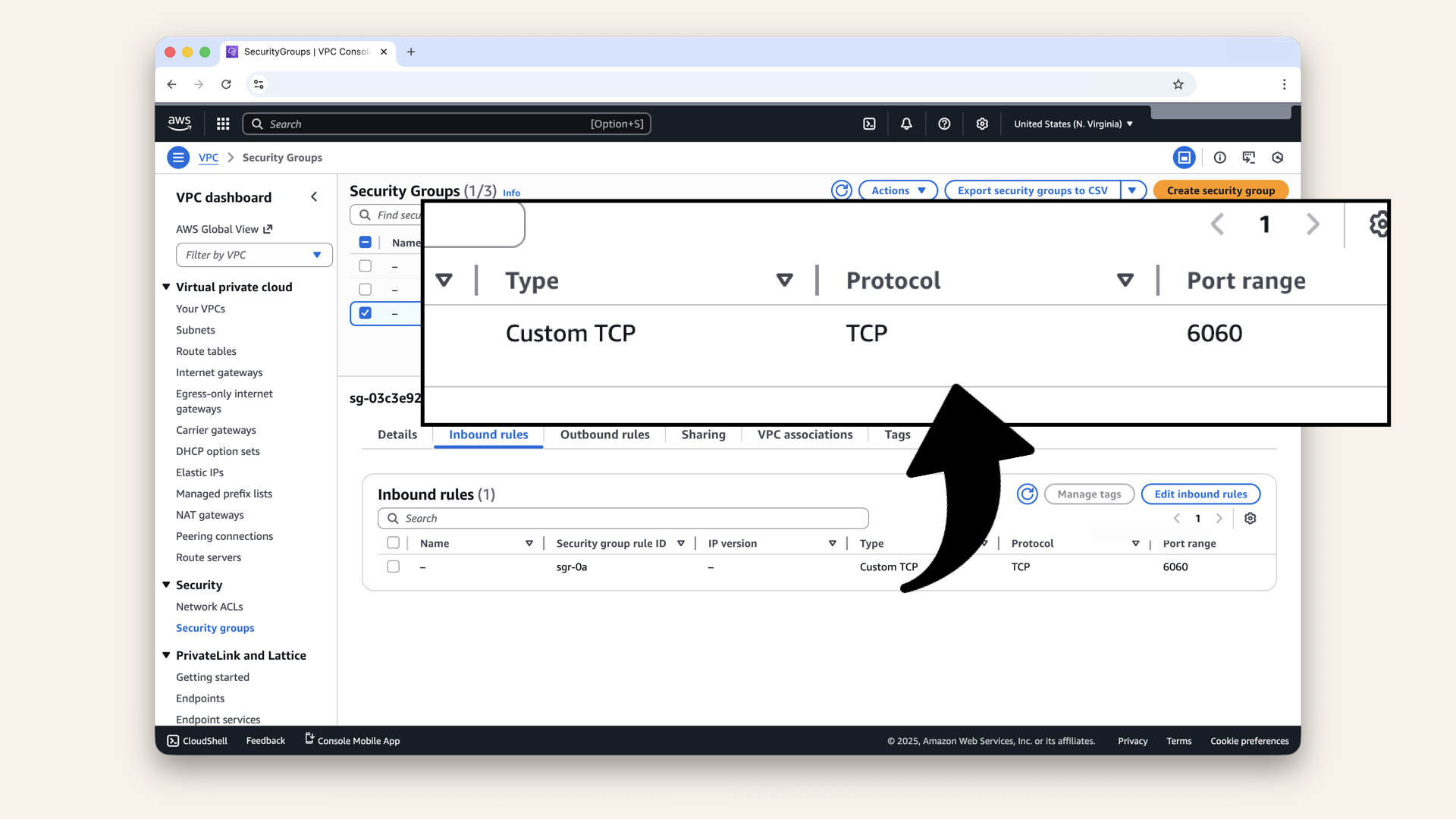

Confirm these Fargate-SG inbound rules:

Inbound rules:

  • TCP 6060 from source ALB-SG

Confirm these inbound rules

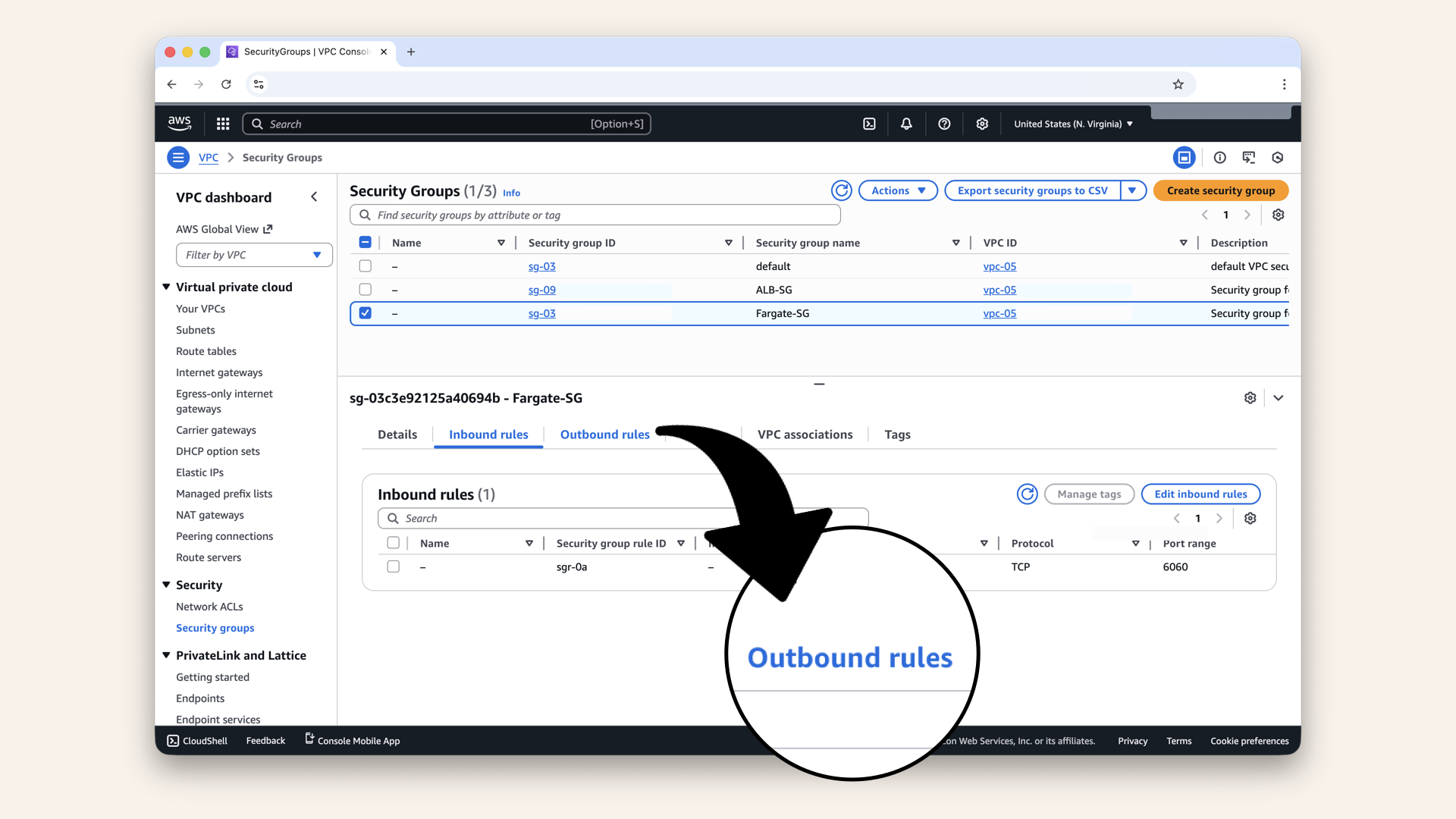

Click Outbound rules:

Click Outbound rules

Click Outbound rules

Confirm these Fargate-SG outbound rules:

Outbound rules:

  • All traffic to 0.0.0.0/0

Confirm these Fargate-SG outbound rules

Confirm these Fargate-SG outbound rules

If both look good → your security is set up ✅

Today's win ✅​

If you completed all steps:

✅ Created ALB-SG with HTTP/HTTPS access from internet
✅ Created Fargate-SG with port 6060 access from ALB only
✅ Set up proper outbound rules for both
✅ Verified all security rules

You just added the smart locks.

Your network now has:

  • Routing (Day 6)
  • Security (Day 7)
  • Production-ready access control

Understanding what you built​

The security chain:

What if someone tried to bypass the ALB? → Access denied ❌

Security Groups are smart locks attached to each building (resource).

Security Groups are smart locks attached to each building (resource)

This is your defense:

  1. NAT Gateway (one-way traffic)
  2. Route tables (proper routing)
  3. Security groups (firewall rules)

Production-ready security.

Why "allow all outbound" is safe​

You might wonder: "Isn't allowing all outbound traffic a security risk?"

No, and here's why:

1. Containers need to make API calls​

  • OpenAI Realtime API
  • Twilio
  • AWS services (ECR, CloudWatch, etc.)

Blocking outbound would break your app.

2. Private subnets are already protected​

  • Containers have no public IP
  • Inbound internet traffic is blocked by security groups
  • NAT Gateway provides one-way access

Even with "all outbound", containers can't be accessed from internet.

3. Stateful firewall handles responses​

  • Security Groups are stateful (if you allow inbound traffic, the response is automatically allowed back out)
  • Responses to allowed inbound traffic are automatically allowed
  • You're not creating new security holes

4. If you need stricter controls​

  • Specify exact IPs/ports for outbound
  • Use VPC endpoints for AWS services
  • Implement egress filtering

Security Group best practices​

1. Use descriptive names​

✅ ALB-SG, Fargate-SG, RDS-SG
❌ sg-123abc, security-group-1

2. Reference Security Groups, not IPs​

✅ Allow traffic from ALB-SG
❌ Allow traffic from 10.0.1.5

Why: If the ALB's IP changes, your rules still work.

3. Principle of least privilege​

  • Only allow what's necessary
  • Don't use 0.0.0.0/0 for internal resources
  • Fargate should only accept from ALB, not from internet

4. Document your rules​

  • Use clear descriptions
  • "Security group for Application Load Balancer"
  • Not just "ALB stuff"

5. Review regularly​

  • Remove unused Security Groups
  • Audit rules every few months
  • Delete test/dev Security Groups

Common mistakes (and how to avoid them)​

❌ Mistake #1: Allowing Fargate port 6060 from 0.0.0.0/0​

Result: Containers are exposed to internet (security risk)

Fix: Only allow from ALB-SG

❌ Mistake #2: Forgetting HTTPS (post 443)​

Result: SSL won't work when you add it later

Fix: Add both HTTP (80) and HTTPS (442) to ALB-SG now

❌ Mistake #3: Blocking all outbound from Fargate​

Result: Containers can't call OpenAI, Twilio or pull Docker images

Fix: Allow all outbound (or specific destinations if you need strict control)

❌ Mistake #4: Using IP addresses instead of Security Groups​

Result: Rules break when IPs change

Fix: Reference ALB-SG directly in Fargate-SG rules.

Troubleshooting​

Can't connect to load balancer on port 80/443

Check:

  1. ALB-SG has inbound rules for HTTP (80) and HTTPS (443)
  2. Source is 0.0.0.0/0 (anywhere)
  3. ALB is actually using ALB-SG (we'll attach it on Day 9)
  4. ALB is in public subnets
  5. PublicRouteTable has route to Internet Gateway
Load balancer can't reach Fargate containers

Check:

  1. Fargate-SG has inbound rule for port 6060
  2. Source is set to ALB-SG (not 0.0.0.0/0)
  3. Fargate containers will use Fargate-SG (we'll set this on Day 13)
  4. Both Security Groups are in the same VPC
Fargate containers can't reach OpenAI/Twilio

Check:

  1. Fargate-SG has outbound rule for all traffic
  2. PrivateRouteTable has route to NAT Gateway
  3. NAT Gateway is in a public subnet
  4. PublicRouteTable has route to Internet Gateway
How do I allow traffic from a specific IP?

To allow access from just your office IP:

  1. Get your IP: Google "what is my IP"
  2. In ALB-SG inbound rules, change source from 0.0.0.0/0 to YOUR_IP/32
  3. Example: 203.0.113.5/32

Note: Most home IPs change, so you'll need to update this rule periodically.

Can I use the same Security Group for ALB and Fargate?

Technically yes, but it's bad practice.

Why separate is better:

  • Different resources have different security needs
  • ALB needs port 80/443 from internet
  • Fargate should NOT be exposed to internet
  • Easier to manage and audit

Use separate Security Groups for different resource types.

Tomorrow's preview​

Today: You added the smart locks (Security Groups)

Tomorrow (Day 8): We test the network

We've built:

✅ VPC + Internet Gateway
✅ Subnets (public + private)
✅ NAT Gateway
✅ Route Tables
✅ Security Groups

But does it actually work?

Tomorrow we'll:

  1. Launch a test Ec2 instance in a public subnet
  2. SSH into it
  3. Test internet connectivity
  4. Verify NAT Gateway works
  5. Confirm routing is correct

This is your "proof of concept" before deploying real containers.

If the network test passes, you're ready to deploy.

What we learned today​

1. What Security Groups are​

Virtual firewalls that control inbound/outbound traffic

Security Groups are smart locks attached to each building (resource).

Security Groups are smart locks attached to each building (resource)

2. Inbound vs outbound​

  • Inbound = Who can connect to this resource
  • Outbound = What this resource can connect to
tip

Inbound rules are checked only when a connection is initiated → outbound rules are never used to decide who can enter.

3. Stateful firewall behavior​

If inbound is allowed, responses automatically work (no matching outbound rule needed)

tip

Allowing all outbound does not open inbound access because security groups are stateful: only responses to connections initiated from inside are allowed back, not new inbound connections.

4. Referencing Security Groups​

You can allow traffic from another Security Group (not just IPs)

5. Default deny​

Security Groups block all inbound by default (you must explicitly allow)

The foundation is complete​

Days 1-2: Local development (your laptop) ✅
Day 3: VPC (your territory) ✅
Day 4: Subnets (front yards vs back yards) ✅
Day 5: NAT Gateway (back gate) ✅
Day 6: Route Tables (the roads) ✅
Day 7: Security Groups (the smart locks) ← YOU ARE HERE ✅
Day 8: Test Your Network
Days 9-12: Load Balancer & DNS
Days 13-17: Deployment (Docker, ECS, production!)
Days 18-24: Features (API, frontend, polish)

After Day 8, the foundation is DONE. Then we build the app!

Share your progress​

Got your Security Groups set up? Share it!

Twitter/X:

"Day 7: Added Security Groups: smart locks for my VPC. ALB accepts HTTP/HTTPS from anyone, Fargate only accepts traffic from ALB. Defense in depth! Following @norahsakal's advent calendar 🎄"

LinkedIn:

"Day 7 of building AI calling agents: Created Security Groups to control traffic flow. My containers are now protected, only the load balancer can reach them, internet traffic is blocked. This is production-ready security!"

Tag me! I want to celebrate your progress! 🎉

Want the full course?​

This advent calendar is completely free.

But if you want:

✅ Complete codebase (one clean repo)
✅ Complete walkthroughs
✅ Support when stuck
✅ Production templates
✅ Advanced features

Join the waitlist for the full course (launching February 2026):

Building something with AI calling?

Let's chat about your use case!
Schedule a free call ↗ - no pitch, just two builders talking.

Tomorrow: Day 8 → Test your network (proof it works)

See you then!

— Norah
