Day 9: Create your Application Load Balancer (the front door)

· 25 min read
Norah Klintberg Sakal
Norah Klintberg Sakal
AI Consultant & Developer

Create your Application Load Balancer (the front door)

What you'll learn

How to create an Application Load Balancer that accepts internet traffic and routes it to your private containers

Your network needs a front-yard house​

Day 8: You tested and validated your network

Today: We build the front door (Application Load Balancer)

Here's the setup:

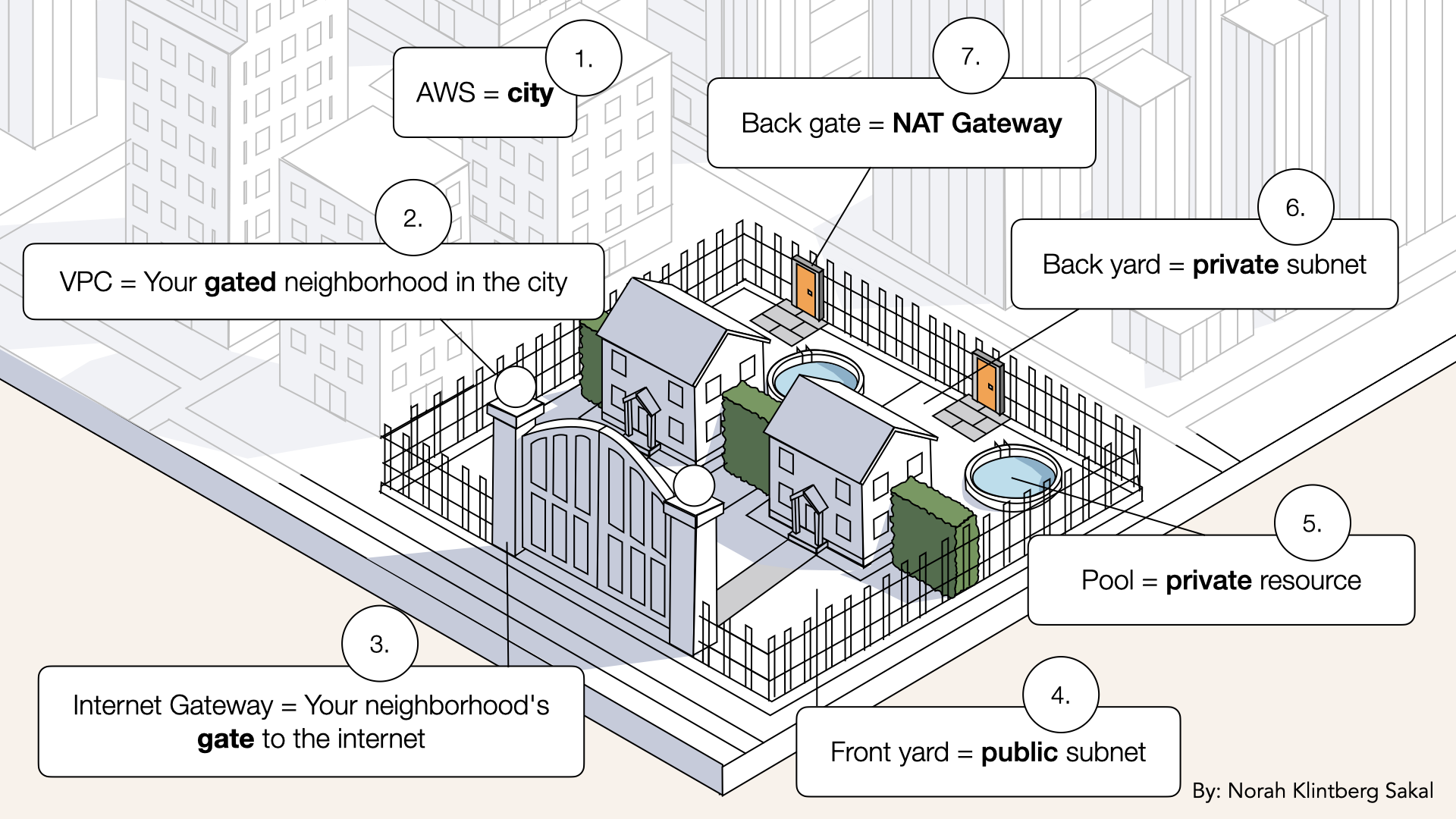

Your AI containers will live in private subnets (no public IPs, hidden from internet).

Your AI containers will live in private subnets (no public IPs, hidden from internet)

Your AI containers will live in private subnets (no public IPs, hidden from internet)

But users need to access them.

The problem:

  • Users are on the internet
  • Containers are in private subnets
  • How do they connect?

You can't expose container directly (that defeats the purpose of private subnets).

Solution: Application Load Balancer (ALB)

Think of it like the front-yard house:

Without an ALB:

  • Strangers try to walk straight into houses (resources) in the back yard
  • Then skip the front yard completely
  • Pool houses (private resources) are exposed
  • Locks are constantly under attack

With ALB:

  • Visitors are only allowed to enter through the front-yard house
  • The front-yard house decides which back-yard house to route them to
  • Back-yard houses only open their doors to visitors coming from the front-yard house
  • Security checks at entrance

No one can knock on private doors directly.

ALB is your front-yard house, security checkpoint and traffic router, all in one.

By the end of today, you'll have:

✅ Target Group created (where to send traffic)
✅ Application Load Balancer deployed in public subnets
✅ HTTP listener configured (port 80)
✅ ALB-SG attached for security
✅ Stable endpoint for users

Let's build your front-yard house. 🏠

What you'll build today​

An Application Load Balancer with:

ComponentValuePurpose
NameFargate-ALBYour identifier
SchemeInternet-facingAccessible from internet
SubnetsPublicSubnet-1 & PublicSubnet-2Lives in front yards
Security GroupALB-SGAllows HTTP/HTTPS
Target GroupFargate-TGWhere to route traffic (Fargate containers)
ListenerHTTP:80Accepts traffic on port 80

Traffic flow:

Internet → ALB (port 80) → Target Group → Fargate containers (port 6060)

What you'll learn​

  • What an Application Load Balancer is
  • How Target Groups work
  • The difference between ALB, NLB and Classic LB
  • Why ALB lives in public subnets
  • How health checks keep your app reliable
  • How to configure listeners and routing
This advent calendar is completely free.

But if you want:

✅ Complete codebase (one clean repo)
✅ Complete walkthroughs
✅ Support when stuck
✅ Production templates
✅ Advanced features

Join the waitlist for the full course (launching February 2026):

Building something with AI calling? Let's chat about your use case!
Schedule a free call ↗ - no pitch, just two builders talking.

Time requirement​

20 minutes (create target group + ALB + configure)

Prerequisites​

✅ Completed Day 3 (VPC) ↗
✅ Completed Day 4 (Subnets) ↗
✅ Completed Day 5 (NAT Gateway) ↗
✅ Completed Day 6 (Route Tables) ↗
✅ Completed Day 7 (Security Groups) ↗
✅ Completed Day 8 (prove it works) ↗
✅ Access to AWS Console

Understanding Application Load Balancer (3-minute primer)​

What is an Application Load Balancer?​

ALB = A managed AWS Service that distributes incoming traffic across multiple targets

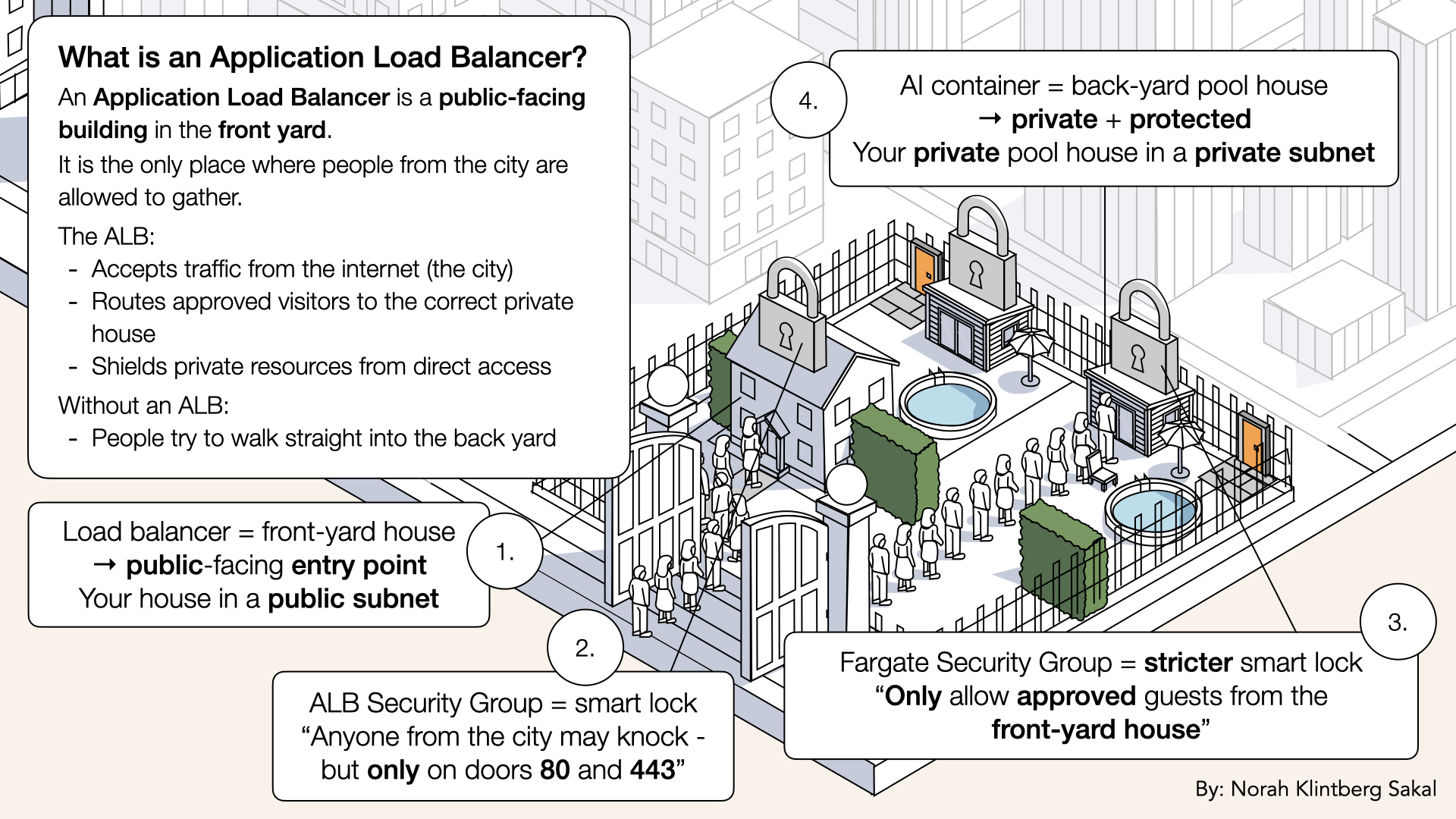

Think of an Application Load Balancer as the front-yard house

Think of an Application Load Balancer as the front-yard house

Key features:

  • Routes HTTP/HTTPS traffic
  • Lives in public subnets
  • Has a stable DNS name
  • Performs health checks
  • Handles SSL termination
  • Routes based on URL path, headers, etc.

In our setup:

  • Accepts traffic from internet (port 80/443)
  • Routes it to Fargate containers (port 6060)
  • Spread load across multiple containers

ALB vs NLB vs Classic Load Balancer​

AWS has 3 types of load balancers:

TypeBest ForProtocolUse Case
Application Load Balancer (ALB)HTTP/HTTPS appsLayer 7 (application)Web apps, APIs, microservices
Network Load Balancer (NLB)High performanceLayer 4 (transport)TCP/UDP, extreme performance
Classic Load BalancerLegacyLayer 4/7Old apps (deprecated)

We're using ALB because:
✅ Handles HTTP/HTTPS (our AI app)
✅ Advanced routing (path-based, host-based)
✅ WebSocket support (for real-time audio)
✅ Modern, feature-rich

How Target Groups work​

Target Groups = A collection of targets (containers, EC2 instances, IPs) that receives traffic from the load balancer

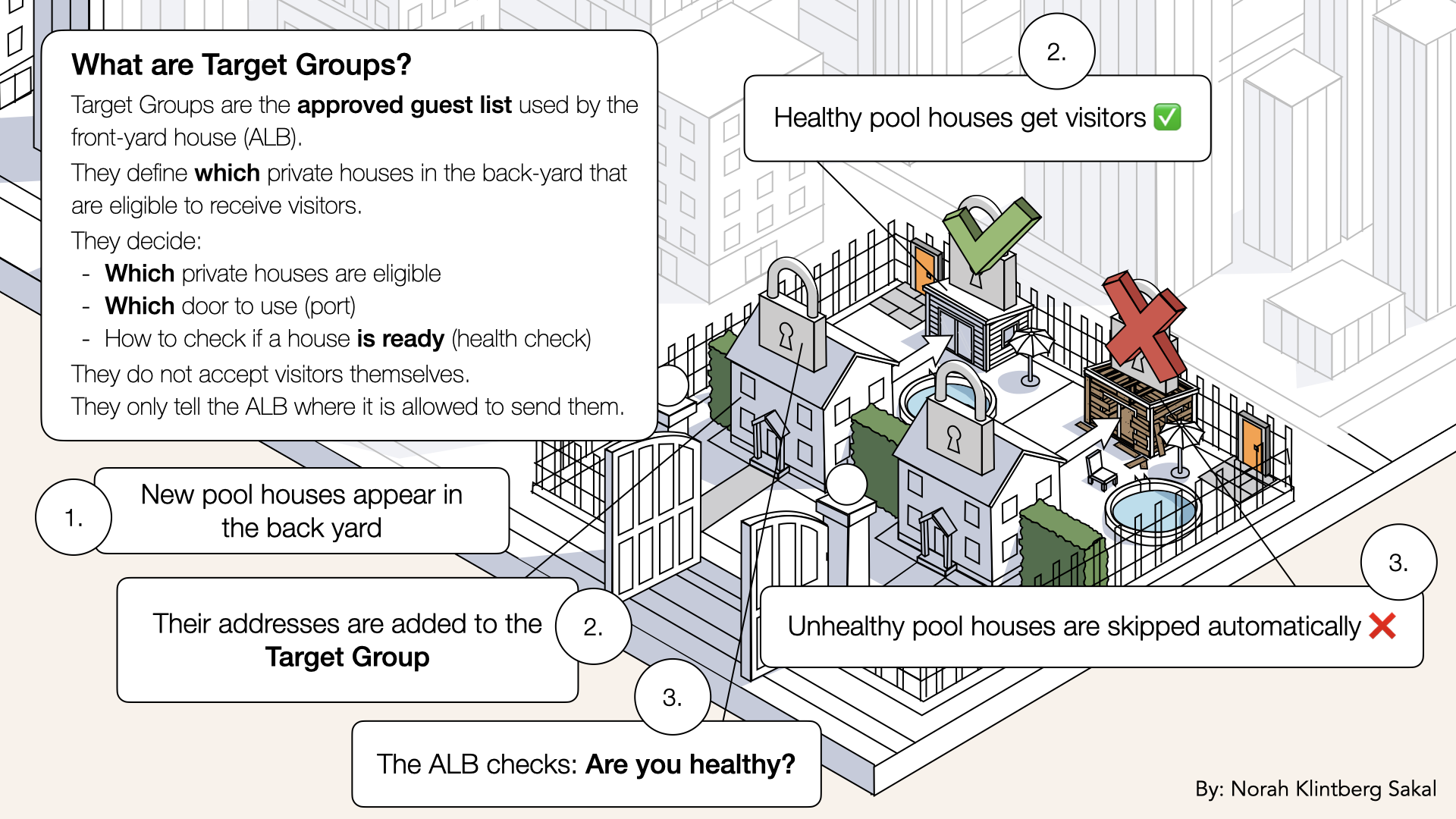

A Target Group defines which private houses are allowed to receive visitors from the front-yard house.

Think of it like:

  • ALB = Front-yard house
  • Target Group = List of approved back-yard houses
  • Targets = individual pool houses (containers)

The front-yard house never sends visitors to random houses.
It only routes traffic to houses on its approval list:

A Target Group defines which private houses are allowed to receive visitors from the front-yard house

A Target Group defines which private houses are allowed to receive visitors from the front-yard house

For us:

  • Target type: IP (Fargate uses IP addresses)
  • Protocol: HTTP
  • Port: 6060
  • Health checks: /health endpoint

When you deploy Fargate:

  • Fargate automatically registers container IPs with the Target Group
  • ALB checks health and routes traffic
  • If a container fails health checks, ALB stops sending traffic to it

Key takeaway:

The ALB decides where visitors may go
The Target Group decides which houses are eligible

Why ALB lives in public subnets​

ALB needs to:

  1. Accept traffic from the internet
  2. Have a public IP (assigned by AWS)
  3. Route traffic to private subnets

That's why it lives in public subnets:

  • Public subnets have route to Internet Gateway
  • ALB gets internet access
  • But ALB can still reach private subnets (they're in the same VPC)

Traffic flow:

Internet → IGW → Public Subnet (ALB) → Private Subnet (Fargate)

Health checks​

Health check = ALB periodically pings your containers to see if they're healthy

Example:

  • Every 30 seconds, ALB sends: GET /health
  • If container responds with HTTP 200 → Healthy ✅
  • If container doesn't respond or returns error → Unhealthy ❌

Why this matters:

  • If a container crashes, ALB detects it (via failed health checks)
  • ALB stops sending traffic to that container
  • Other healthy containers continue serving traffic
  • Your app stays online even if some containers fail

This is automatic high availability.

Step 1: Create Target Group​

Before creating the ALB, we need to create a Target Group.

Open the AWS Console ↗

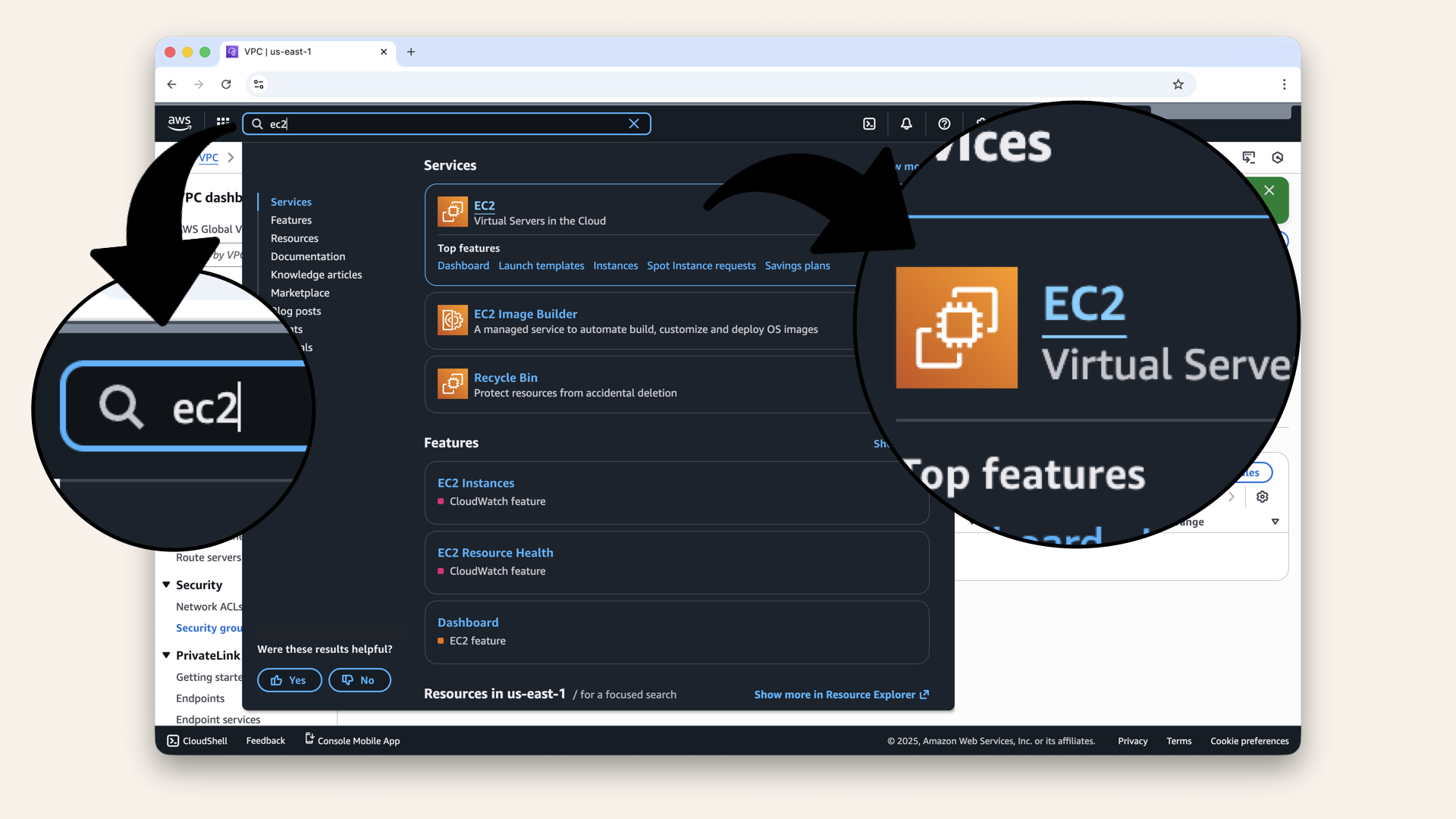

In the search bar at the top, type ec2 and click EC2 from the dropdown menu:

In the search bar at the top, type ec2 and click EC2 from the dropdown menu

In the search bar at the top, type ec2 and click EC2 from the dropdown menu

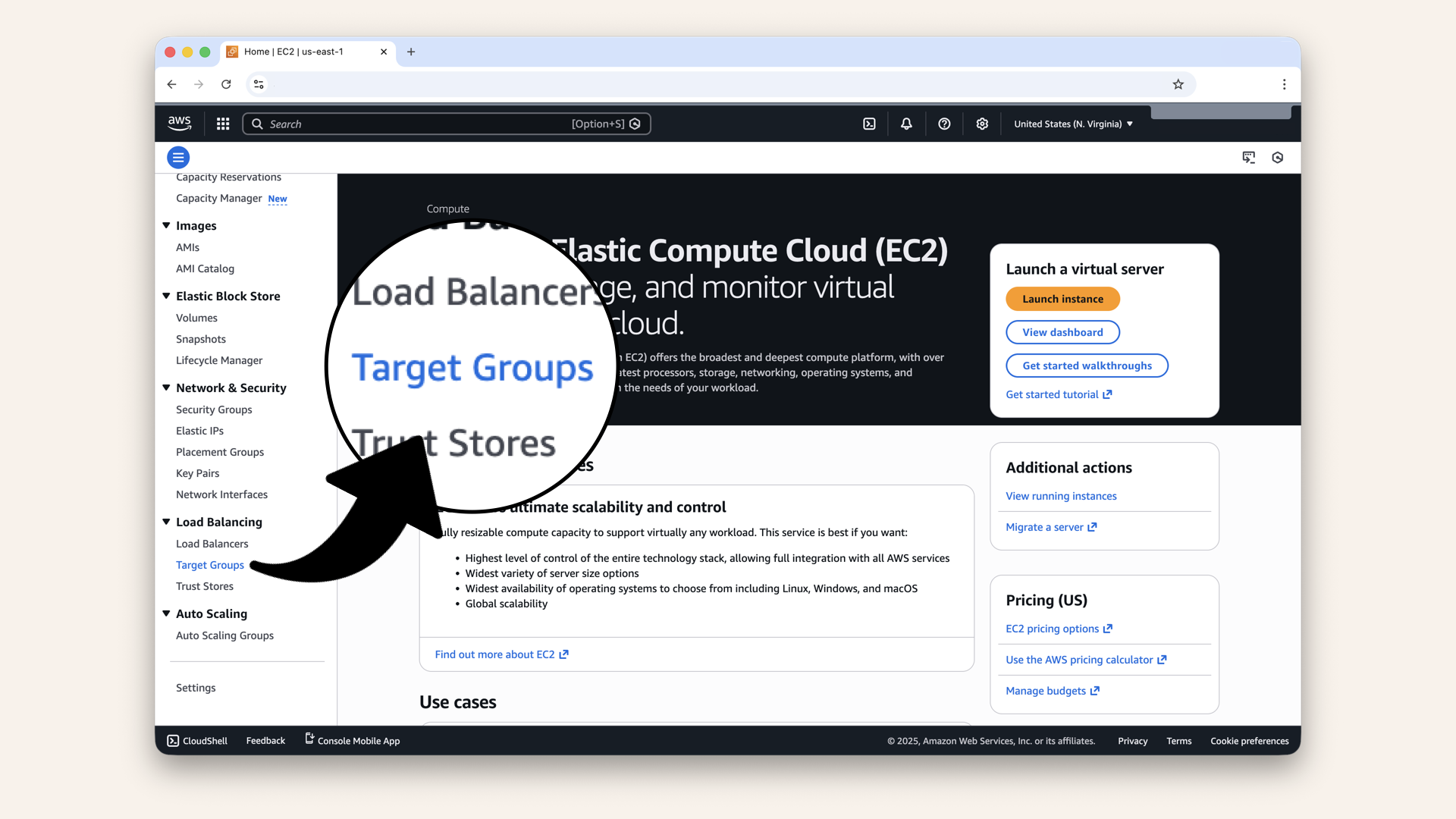

In the left menu, scroll down and click Target Groups (under Load Balancing):

In the left menu, scroll down and click Target Groups (under Load Balancing)

In the left menu, scroll down and click Target Groups (under Load Balancing)

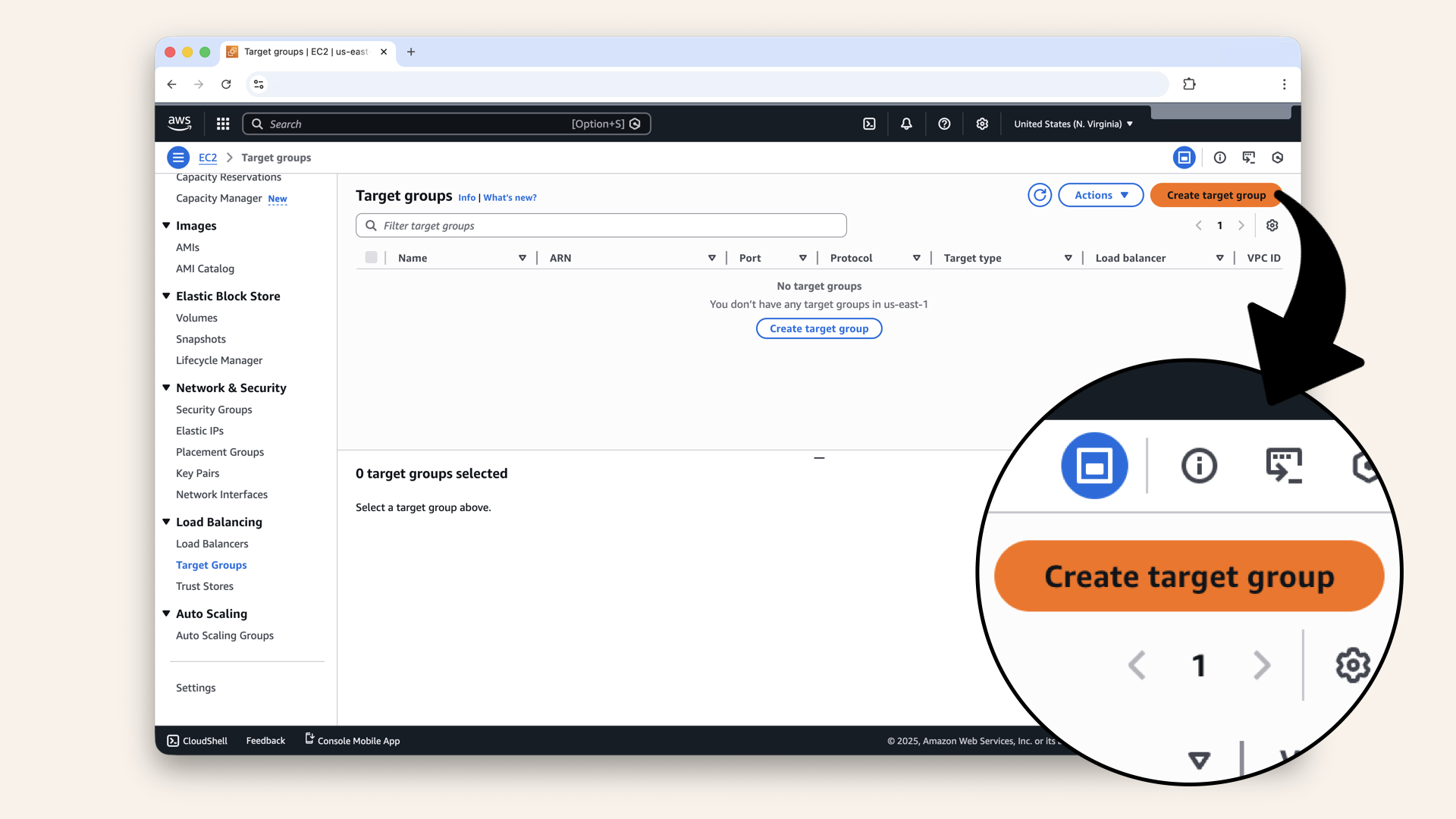

Click Create target group:

Click Create target group

Click Create target group

Step 1.1 Choose target type​

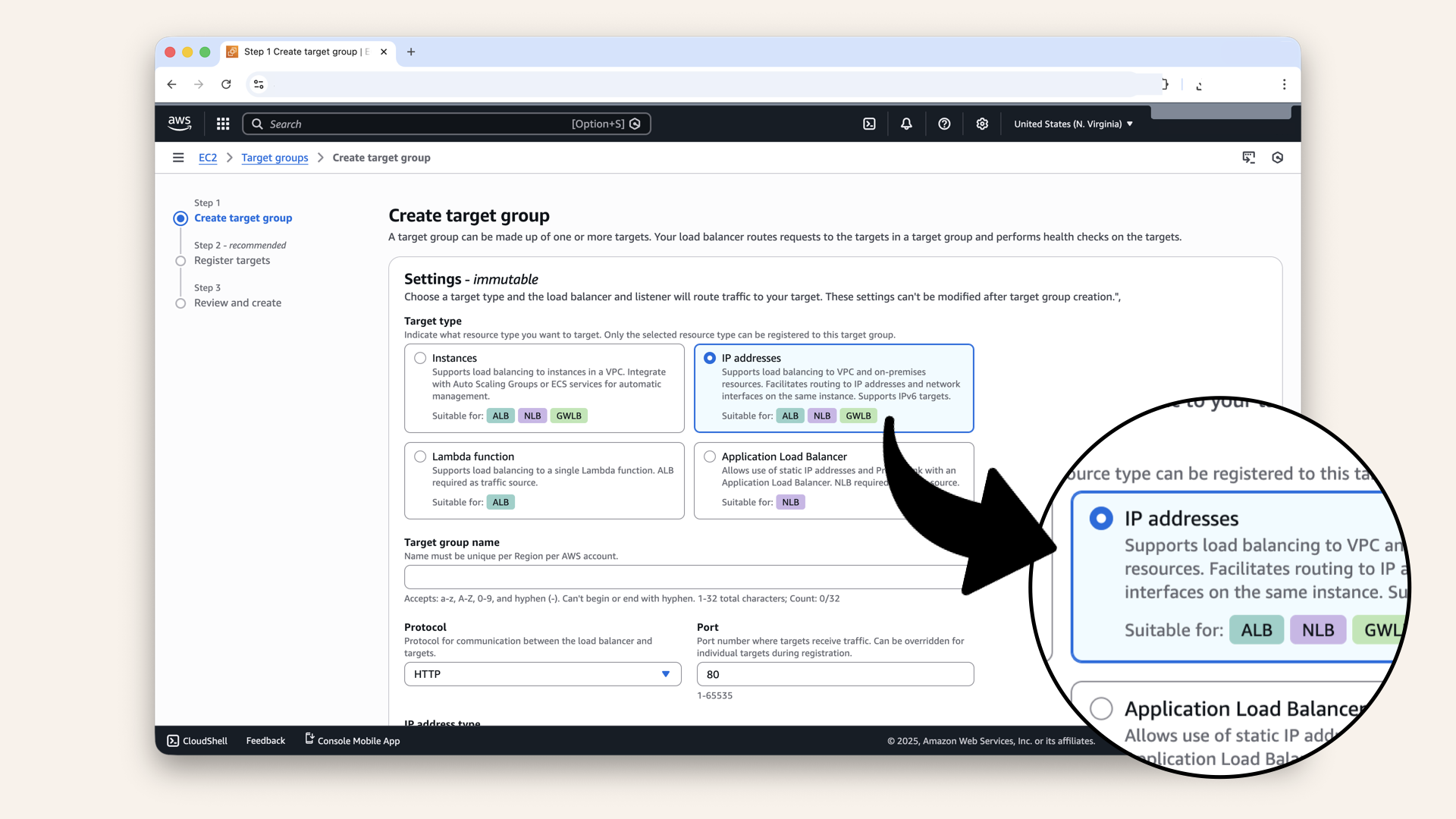

Select IP addresses (Fargate uses IPs, not instances):

Select IP addresses (Fargate uses IPs, not instances)

Select IP addresses (Fargate uses IPs, not instances)

Step 1.2 Configure target group​

Scroll down and fill in the settings:

tip

Click the icon

and copy each value from the table below ⬇

FieldValue
Target group name
ProtocolHTTP
Port
IP address typeIPv4
VPCSelect your VPC
Protocol versionHTTP1

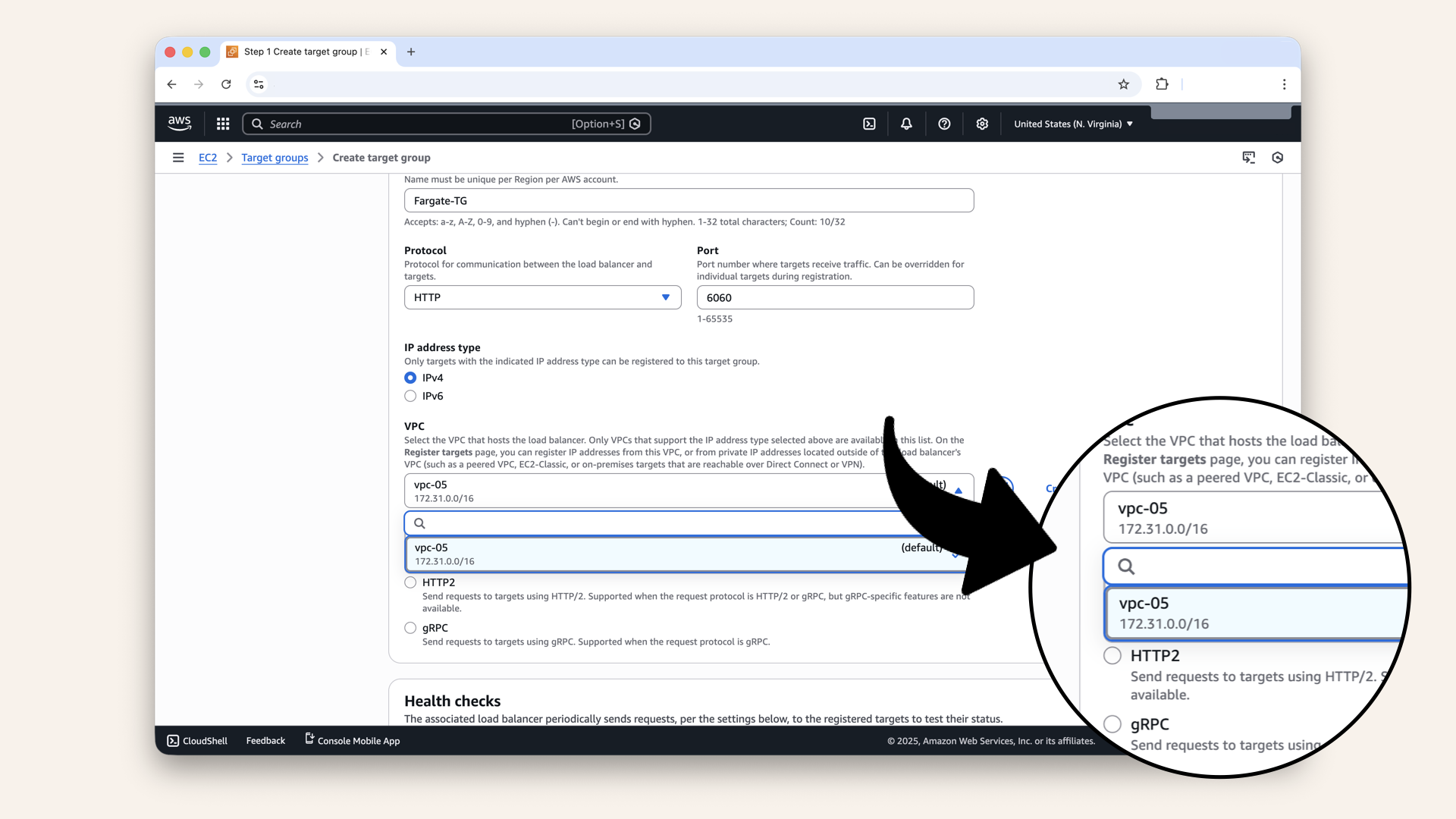

Select your VPC from the dropdown:

Select your VPC from the dropdown

Select your VPC from the dropdown

Step 1.3: Configure health checks​

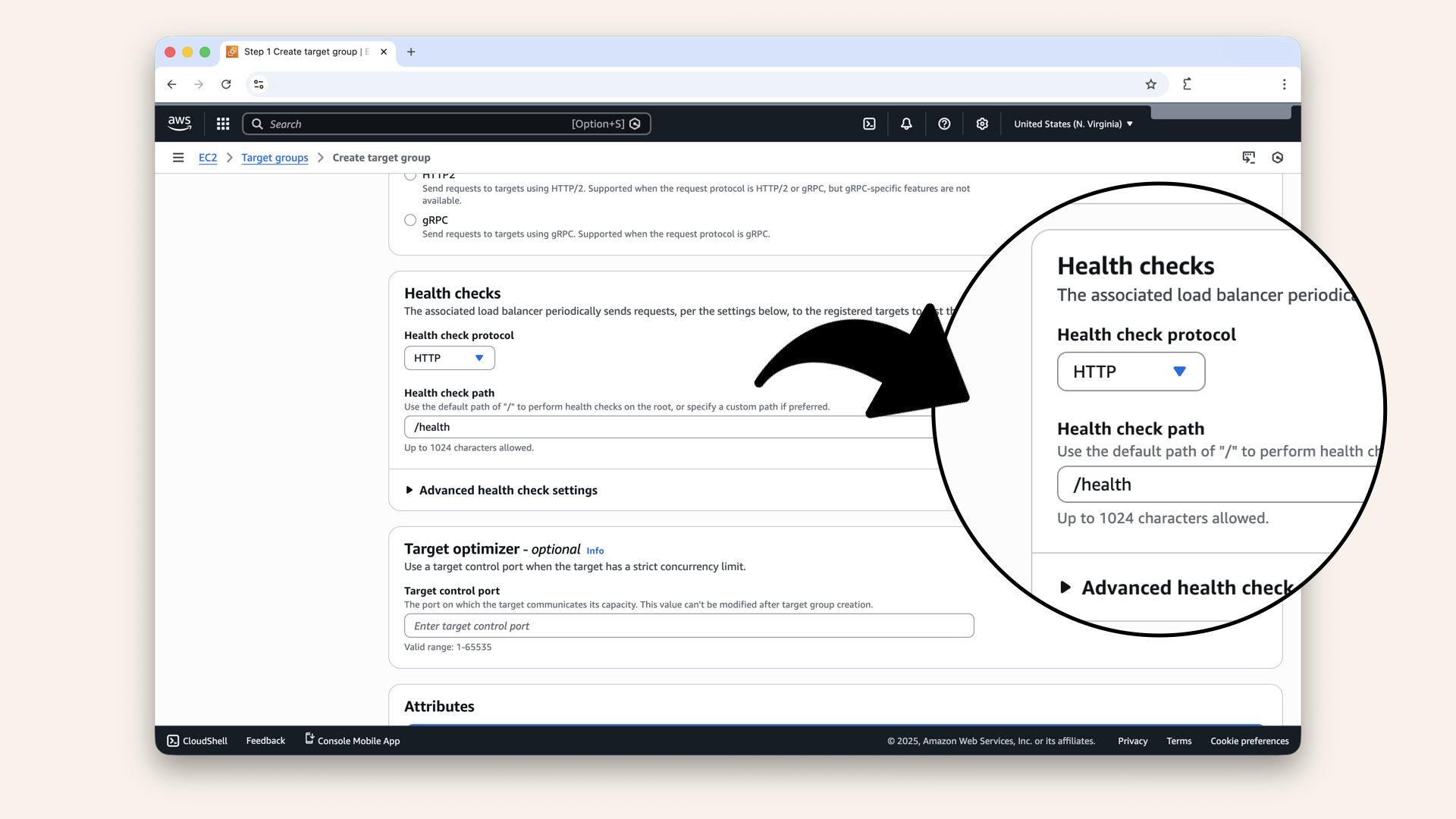

Scroll down to Health checks and fill in these settings:

FieldValueWhy
Health check protocolHTTPCheck via HTTP request
Health check pathOur app's health endpoint
Advanced health check settingsKeep defaultsGood defaults for most apps

Scroll down to Health checks and fill in these settings

Scroll down to Health checks and fill in these settings

About the /health endpoint

You FastAPI app (from Day 1-2) already has a health endpoint at /health.

When Fargate deploys:

  • ALB will ping: GET http://container-ip:6060/health
  • Your app responds: {"status": "healthy"}
  • ALB marks container as healthy ✅

If your app doesn't respond:

  • ALB marks container as unhealthy ❌
  • Stops routing traffic to it
  • ECS automatically replaces the failed container

This is how AWS keeps your app running 24/7

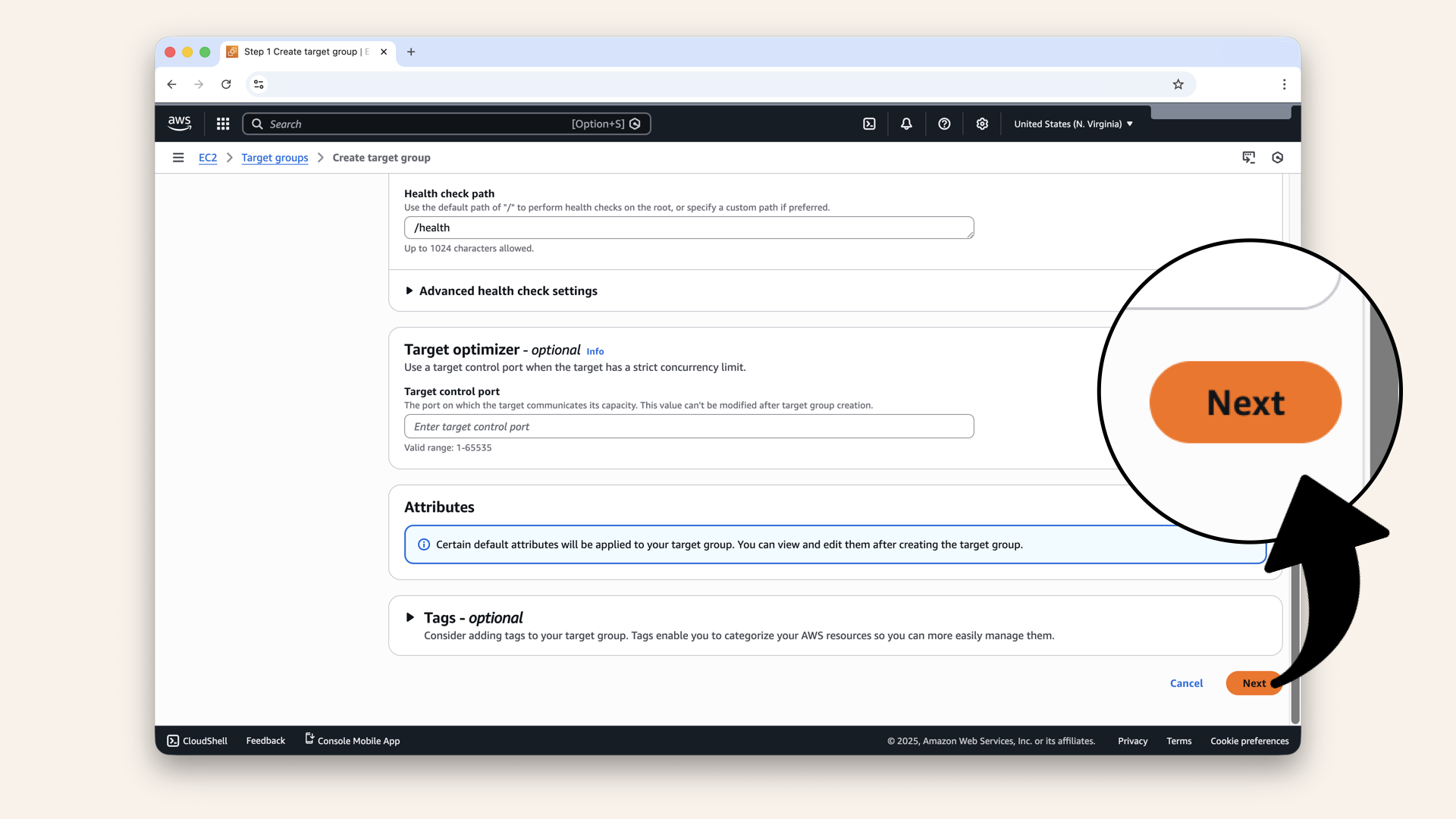

Scroll all the way down and click Next: Scroll all the way down and click Next

Scroll all the way down and click Next

Step 1.4 Register targets​

Don't add any targets yet (we'll do that when we deploy Fargate on Day 13).

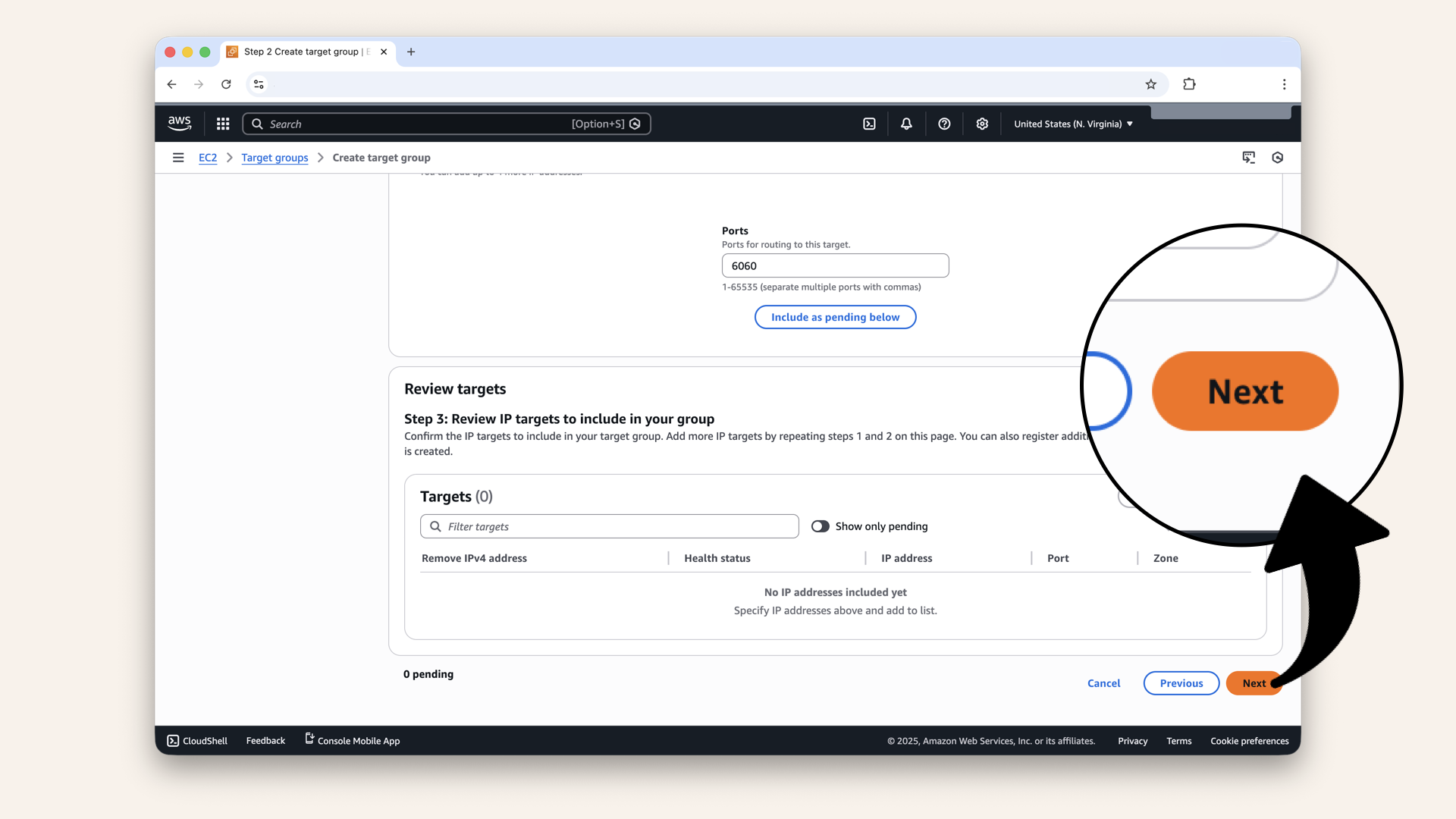

Scroll all the way down and click Next:

Dont add any targets yet. Scroll all the way down and click Next

Don't add any targets yet. Scroll all the way down and click Next

Step 1.5 Review​

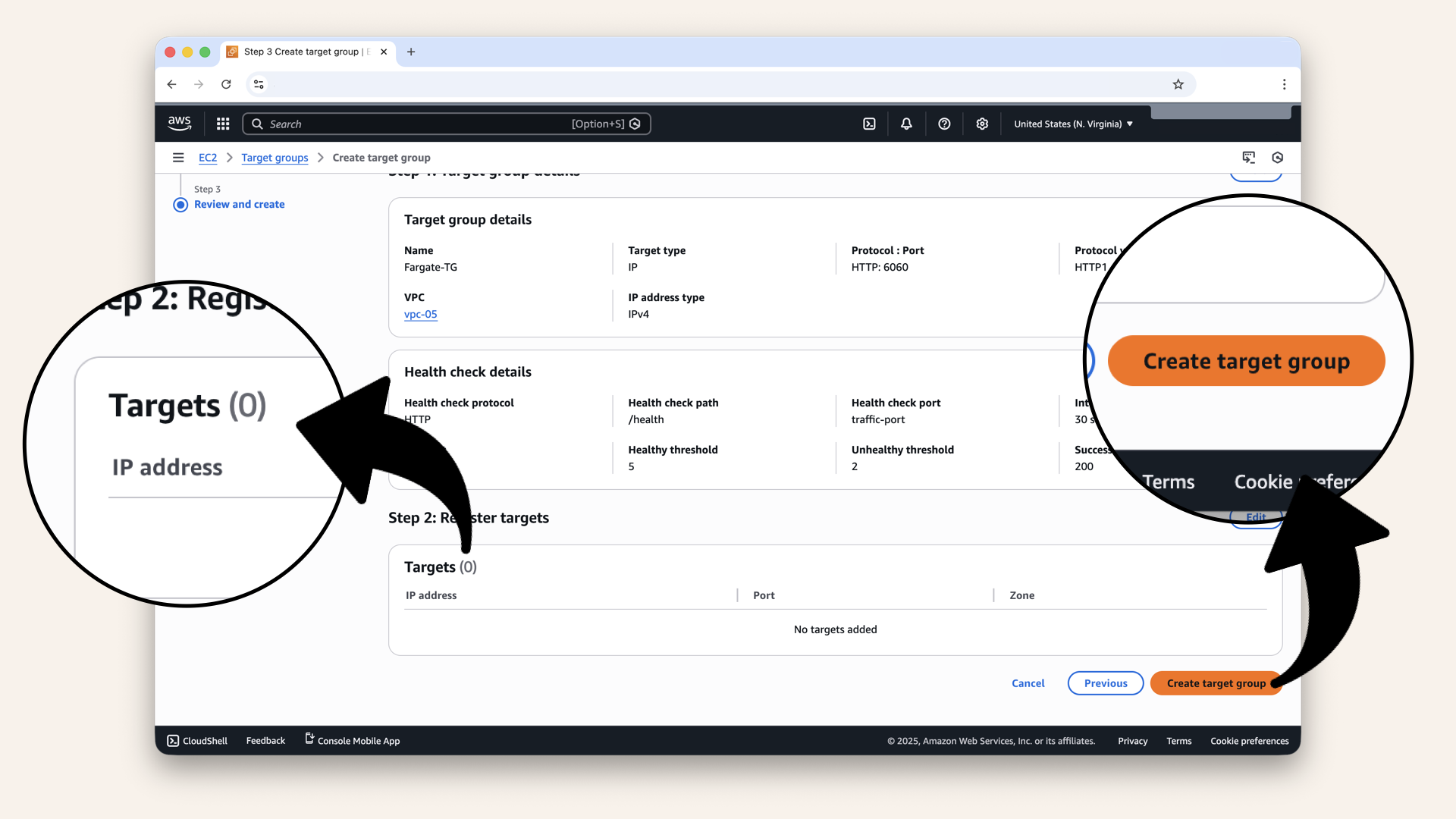

Review your settings, make sure it says 0 Targets, then click Create target group:

Review your settings, make sure it says 0 Targets, then click Create target group

Review your settings, make sure it says 0 Targets, then click Create target group

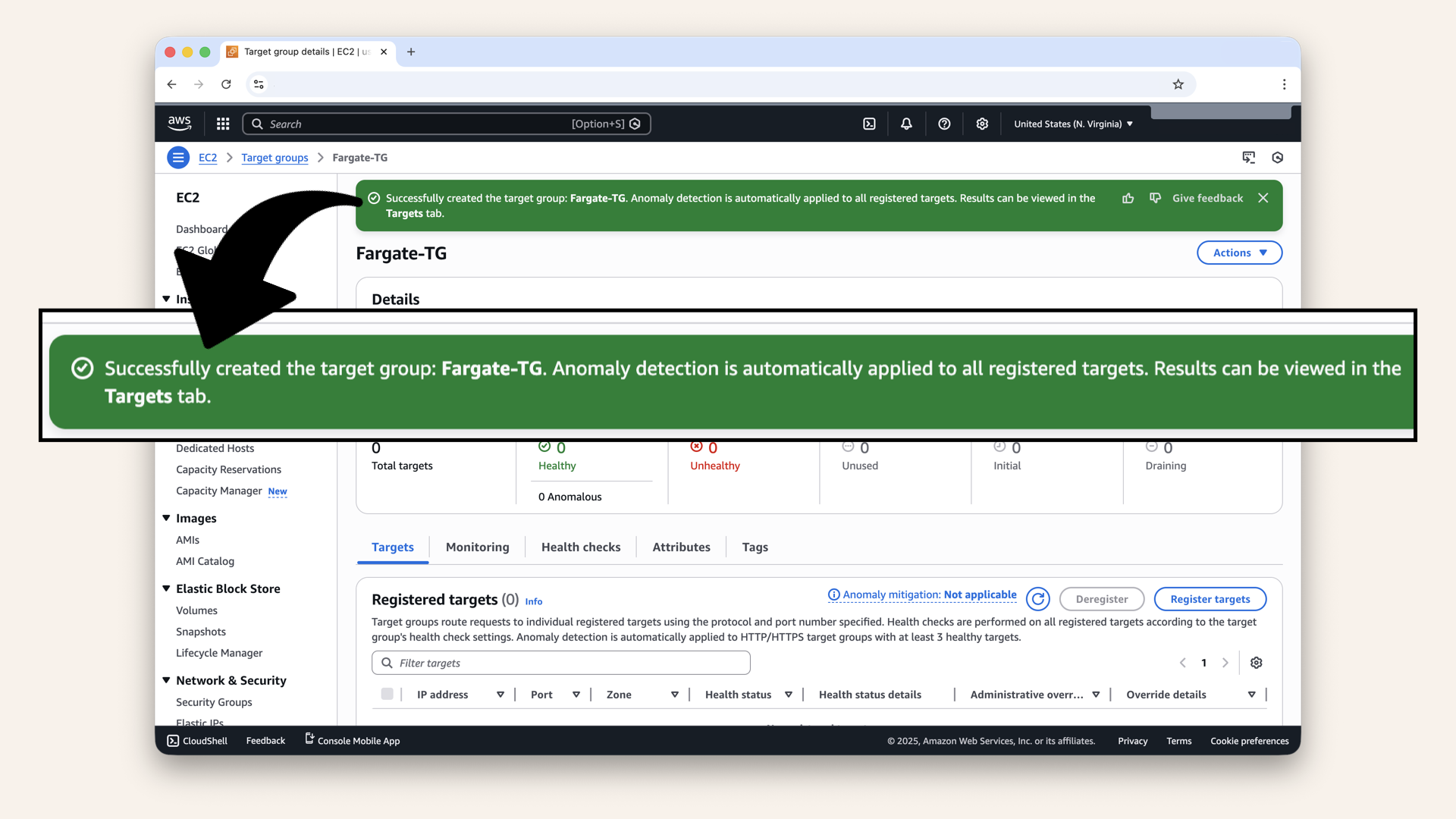

✅ You should see: "Target group created successfully":

You should see: Target group created successfully

You should see: "Target group created successfully"

Step 2: Create Application Load Balancer​

Now let's crate the ALB.

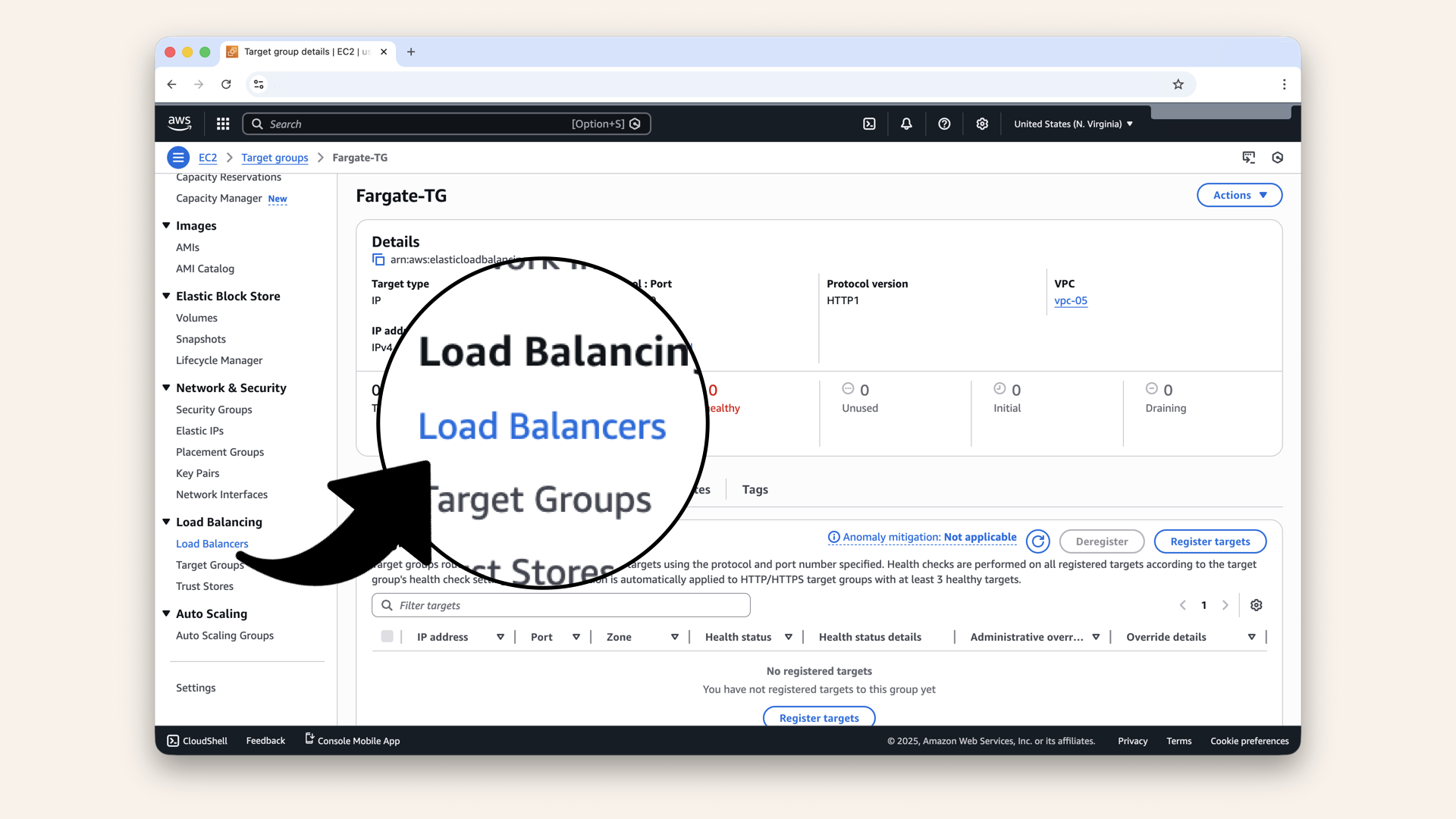

In the left menu, scroll down and click Load Balancers:

In the left menu, scroll down and click Load Balancers

In the left menu, scroll down and click Load Balancers

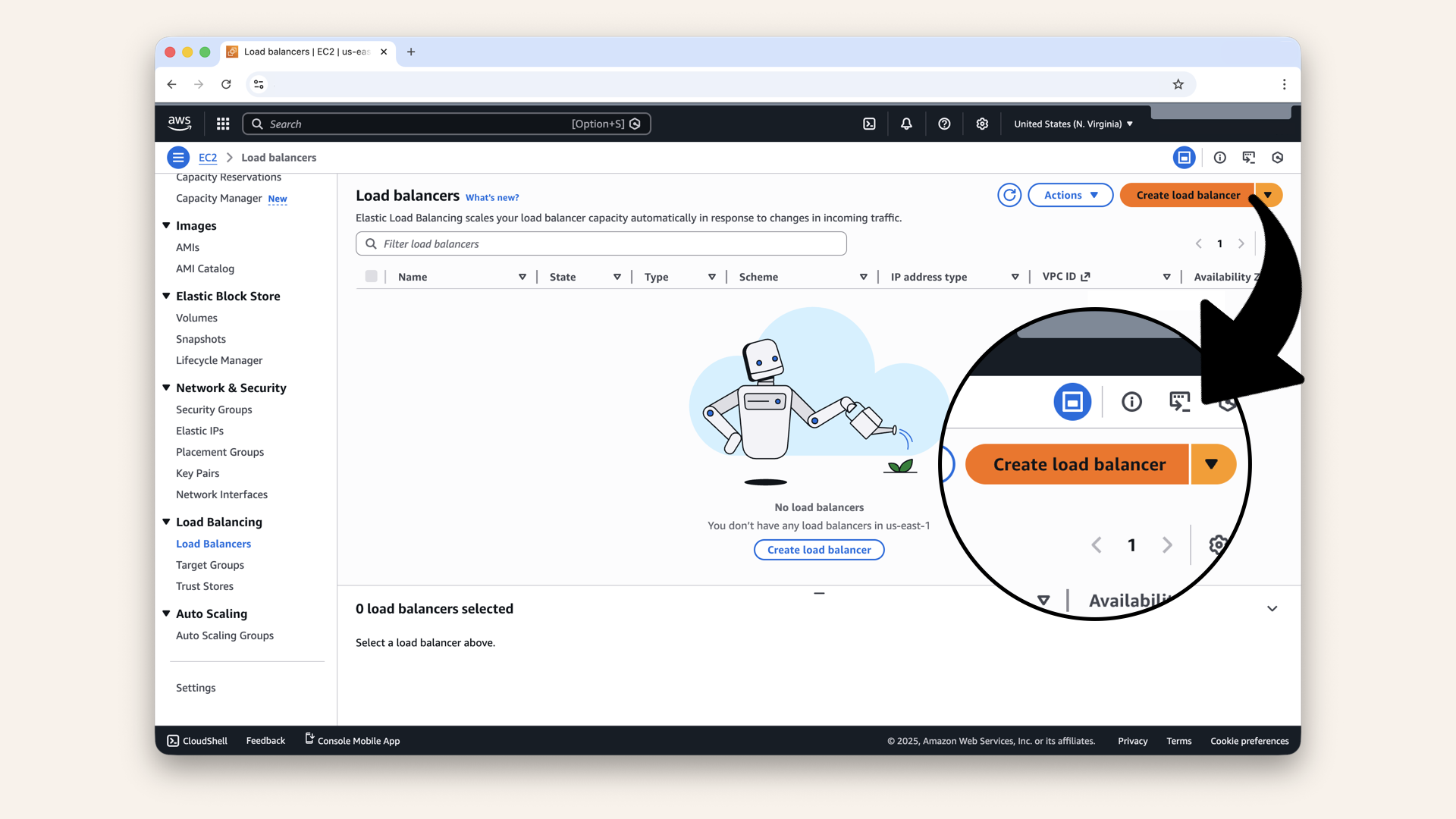

Click Create load balancer:

Click Create load balancer

Click Create load balancer

Step 2.1: Choose load balancer type​

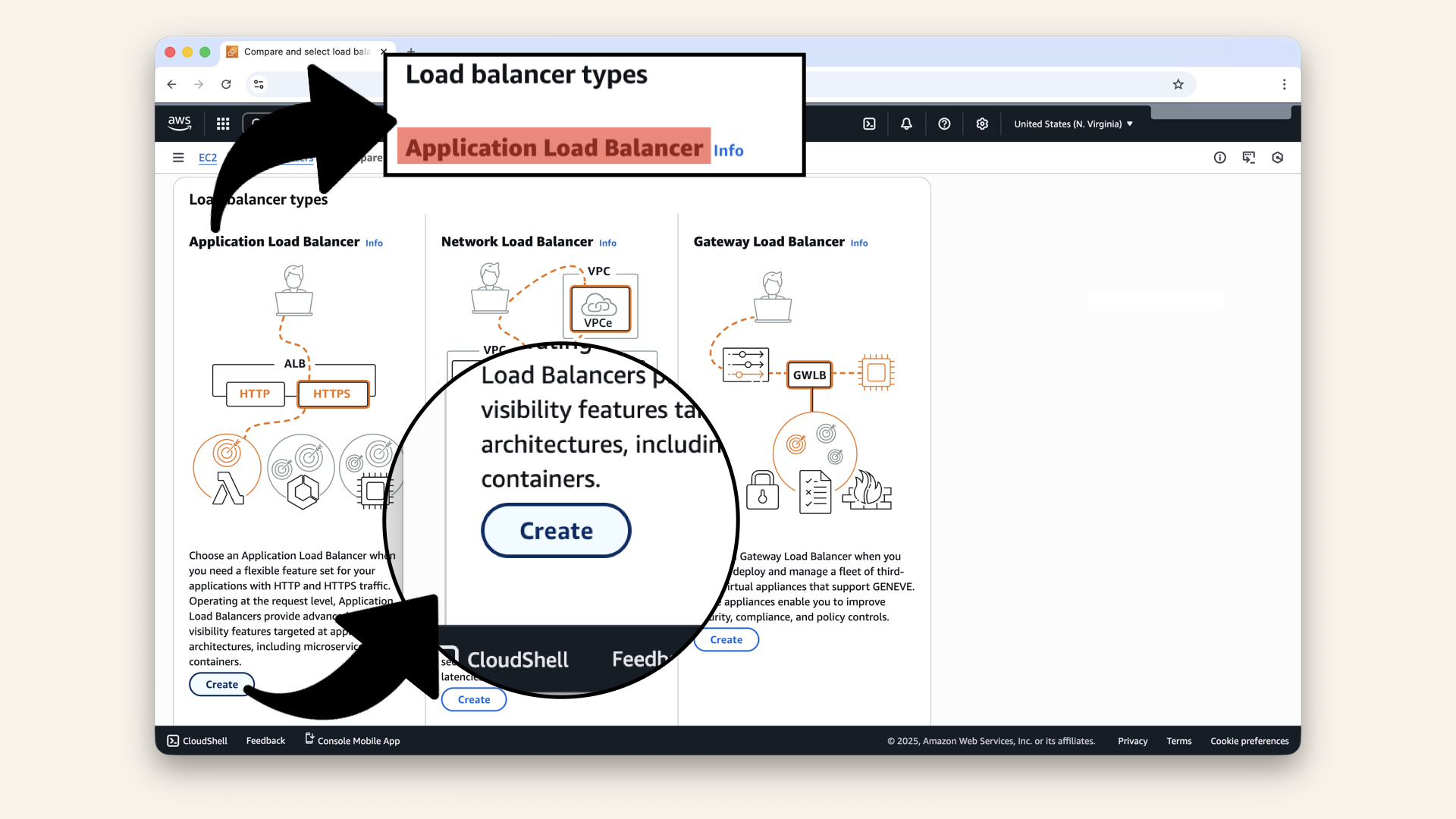

Click Create under Application Load Balancer:

Click Create under Application Load Balancer

Click Create under Application Load Balancer

Step 2.2: Configure basic settings​

Fill in the settings:

FieldValue
Load balancer name
SchemeInternet-facing
IP address typeIPv4

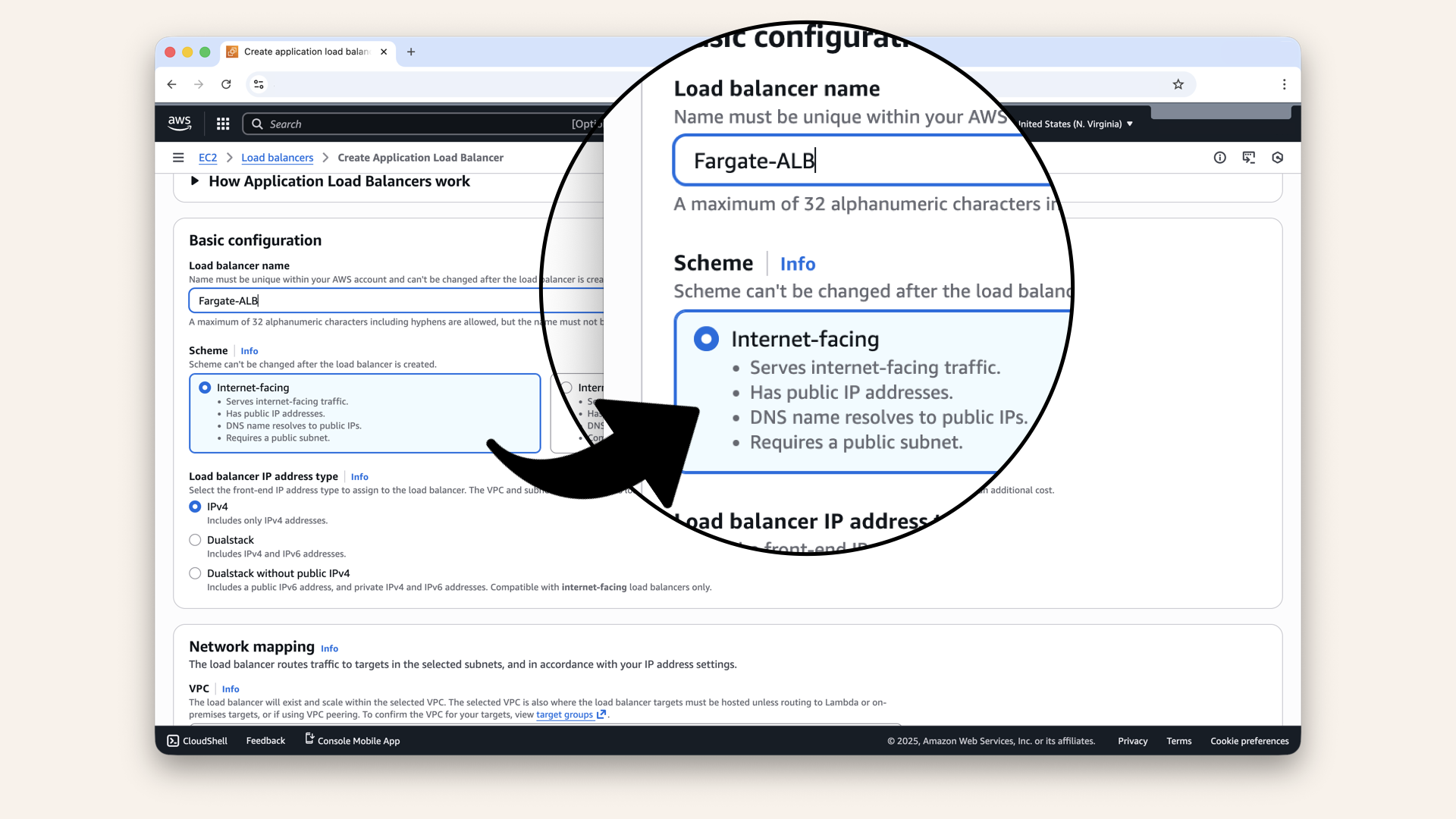

Configure ALB basic settings:

Configure ALB basic settings

Configure ALB basic settings

Internet-facing vs Internal

Internet facing:

  • Has public IP
  • Accessible from internet
  • Use for: Public web apps, APIs

Internal:

  • No public IP
  • Only accessible from within VPC
  • Use for: Internal microservices

We need internet-facing because users will access your AI from the internet.

Step 2.3: Configure network mapping​

Scroll down to Network mapping.

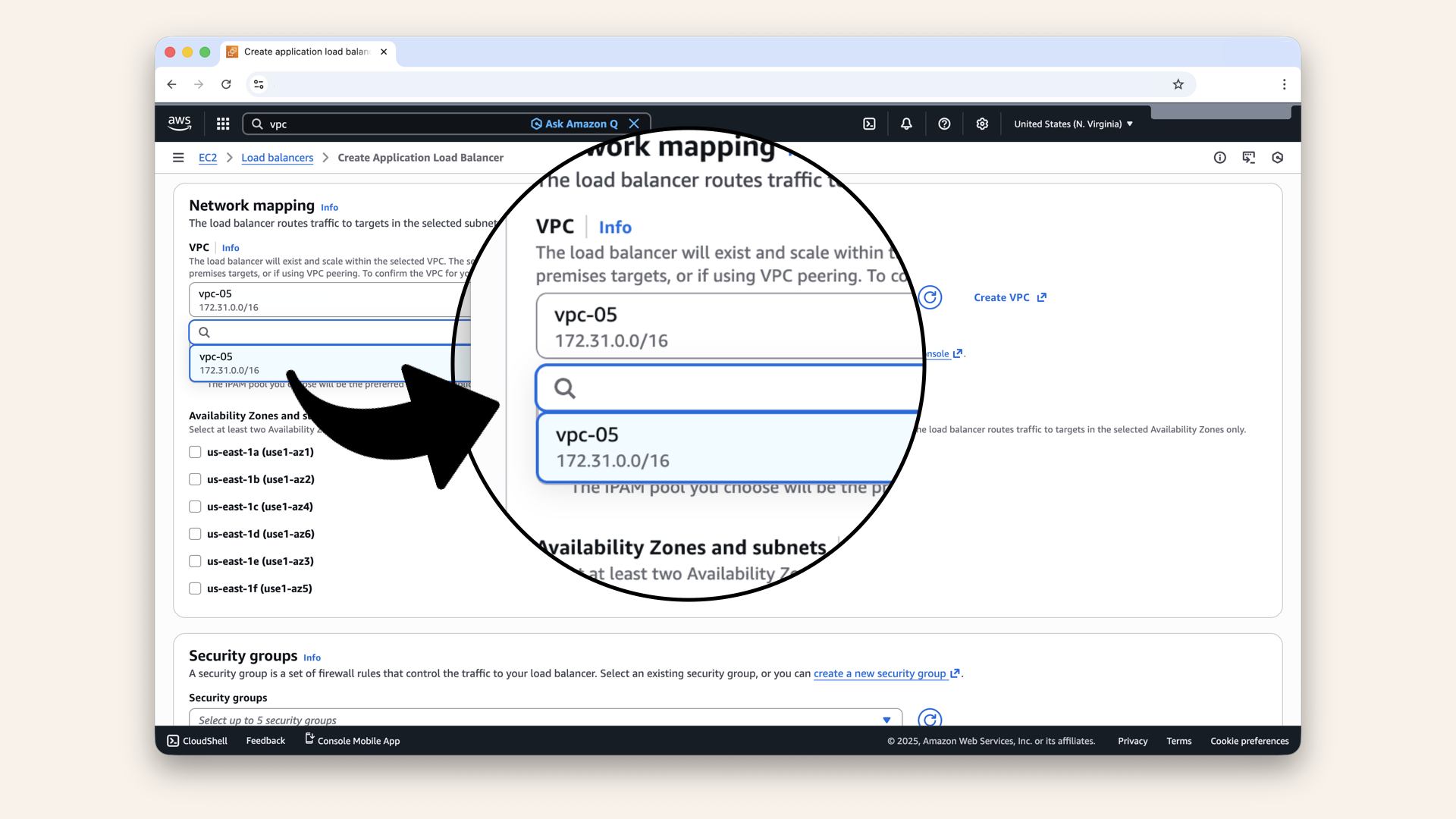

Select your VPC:

Select your VPC

Select your VPC

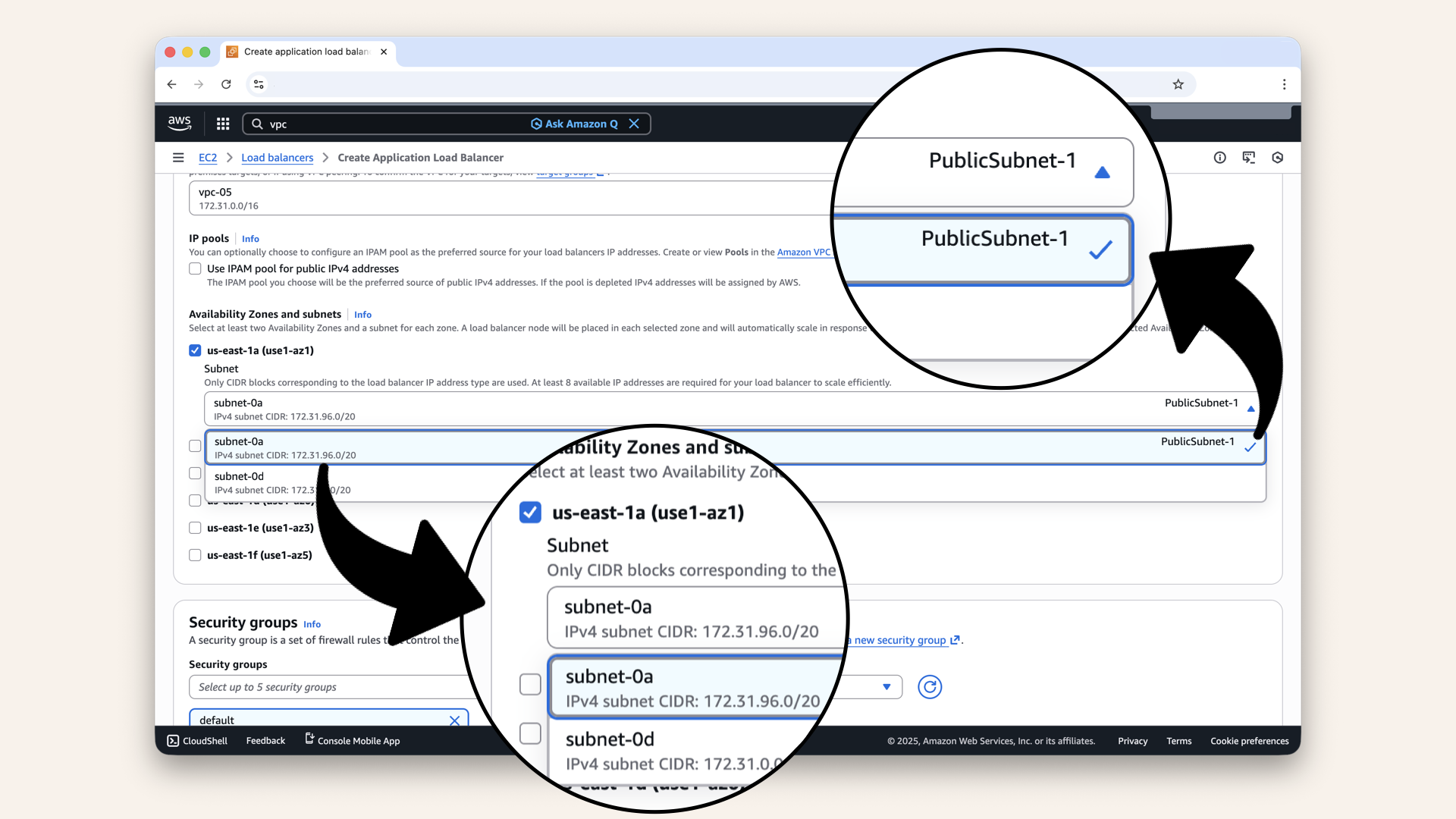

Check us-east-1a (use1-az1) and select PublicSubnet-1 from the dropdown:

Check us-east-1a and select PublicSubnet-1 from the dropdown

Check us-east-1a (use1-az1) and select PublicSubnet-1 from the dropdown

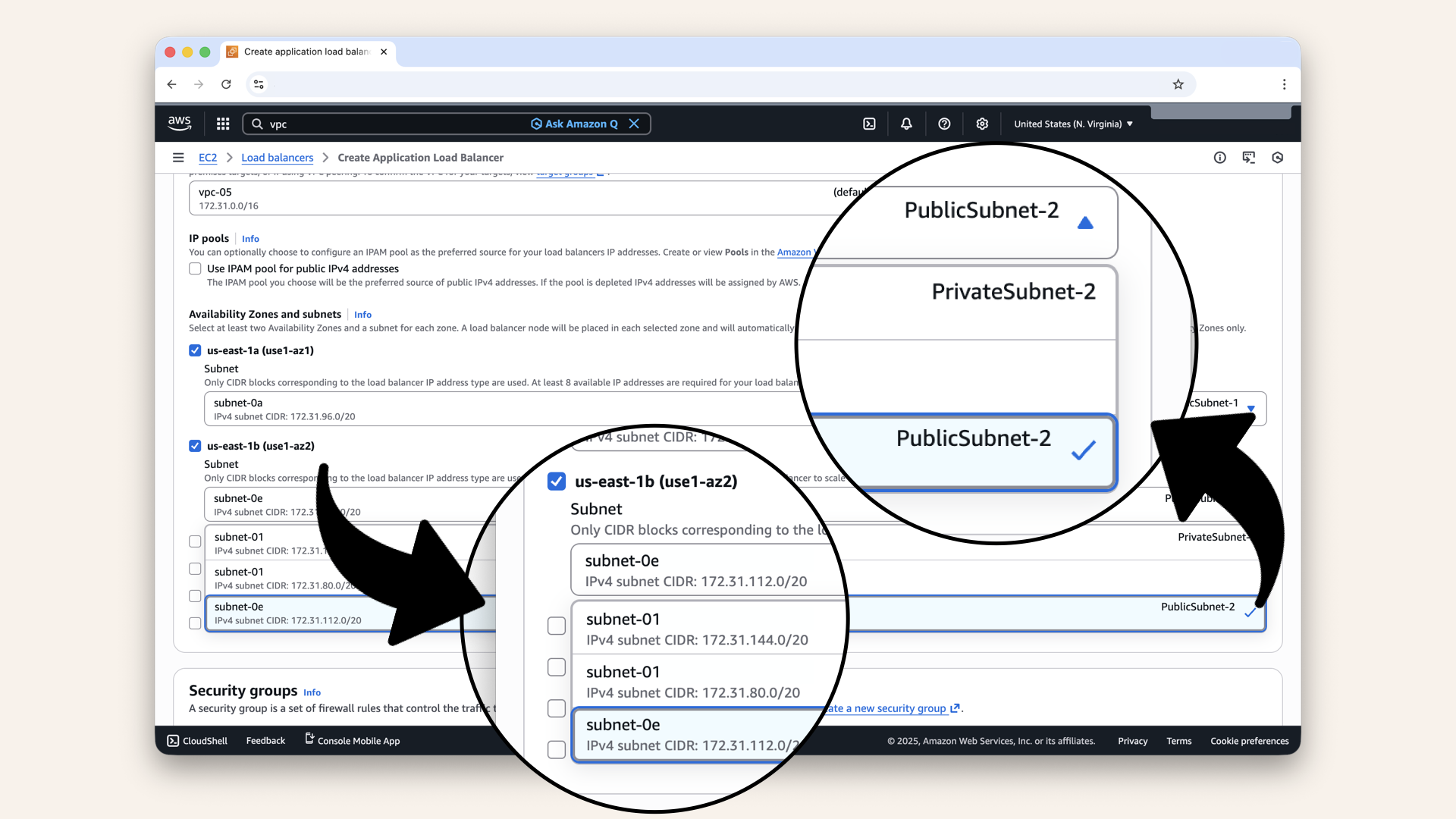

Check us-east-1b (use1-az2) and select PublicSubnet-2 from the dropdown:

Check us-east-1b and select PublicSubnet-2 from the dropdown

Check us-east-1b (use1-az2) and select PublicSubnet-2 from the dropdown

FieldValue
VPCSelect your VPC
MappingsSelect both availability zones (us-east-1a and us-east-1b)
us-east-1aSelect PublicSubnet-1
us-east-1bSelect PublicSubnet-2

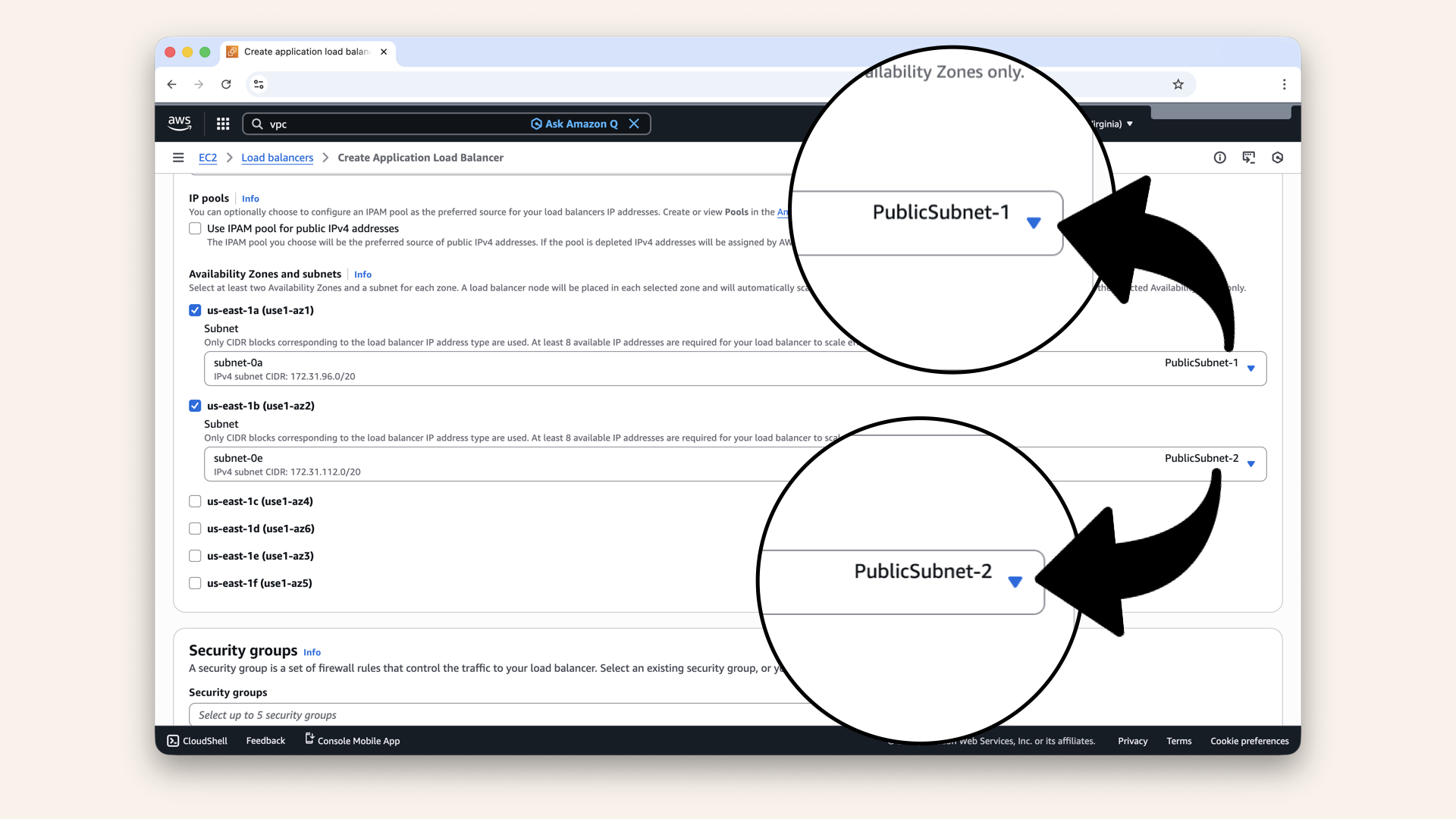

Make sure to select both PublicSubnet-1 and PublicSubnet-2:

Make sure to select PublicSubnet-1 and PublicSubnet-2

Make sure to select both PublicSubnet-1 and PublicSubnet-2

Must select 2+ availability zones

ALB requires at least 2 availability zones (AZs) for high availability.

If one AZ goes down:

  • ALB in the other AZ continues serving traffic
  • Your app stays online

This is why we created subnets in 2 AZs on Day 4!

Step 2.4: Configure security groups​

Remove the default security group and select ALB-SG:

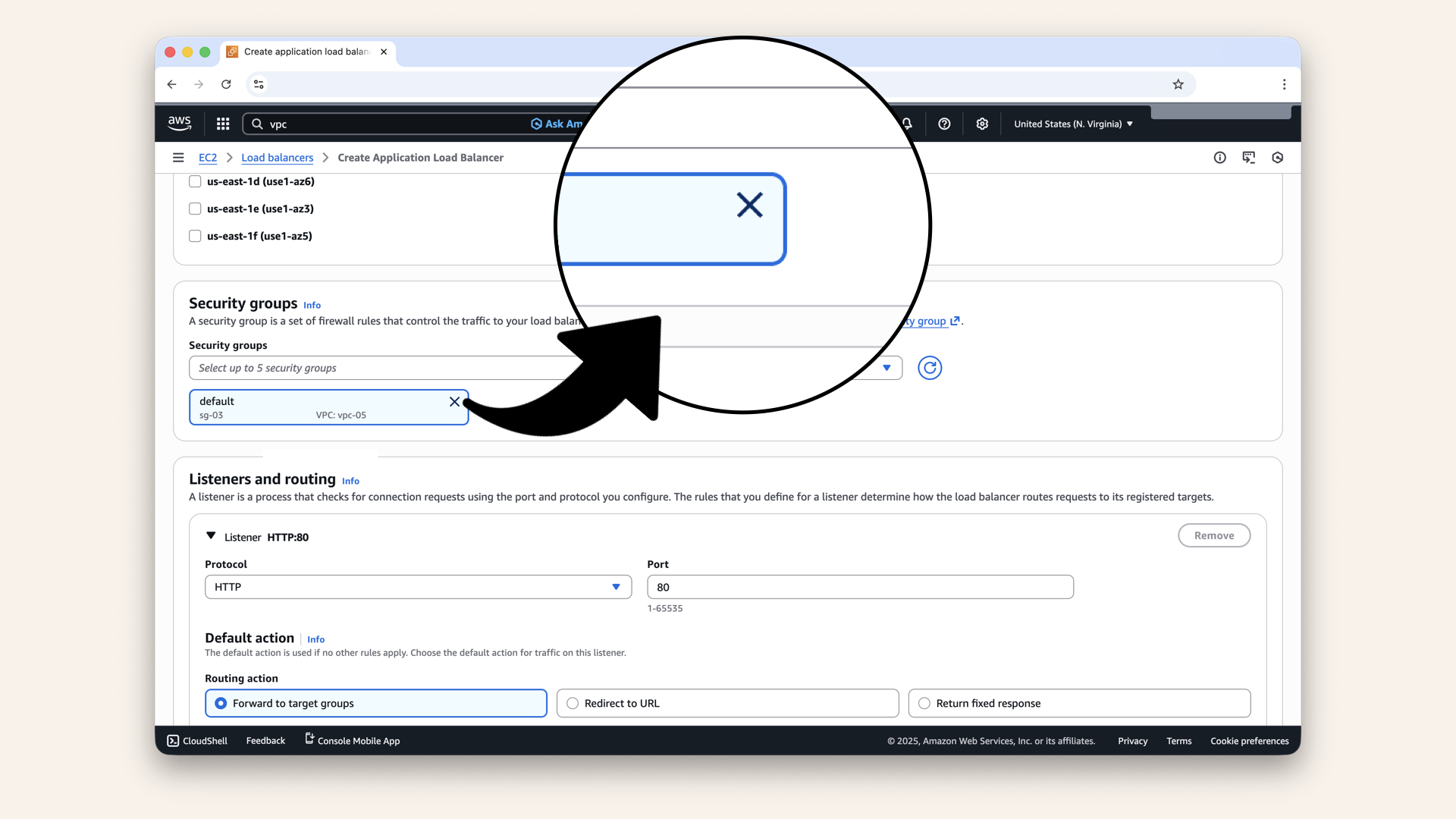

  1. Click the X next to the default security group:

Click the X next to the default security group

Click the X next to the default security group

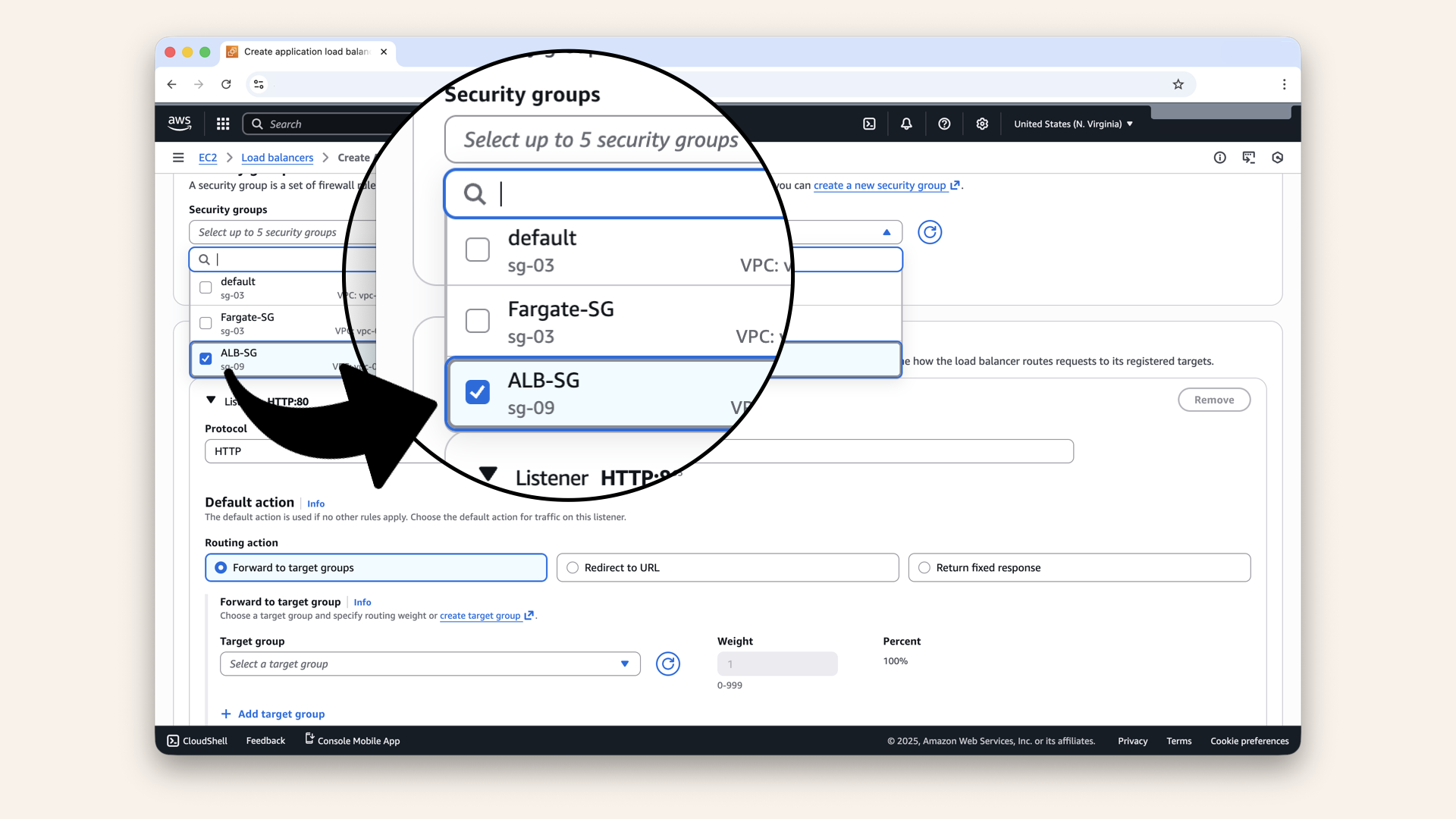

  1. Search for and select ALB-SG (created on Day 7):

Search for and select ALB-SG (created on Day 7)

Search for and select ALB-SG (created on Day 7)

Step 2.5: Configure listeners and routing​

Listeners = A process that checks for connection requests using the protocol and port you configure

Configure the default listeners:

FieldValue
ProtocolHTTP
Port80
Default actionForward to Fargate-TG

Select Fargate-TG as Target group for Default action:

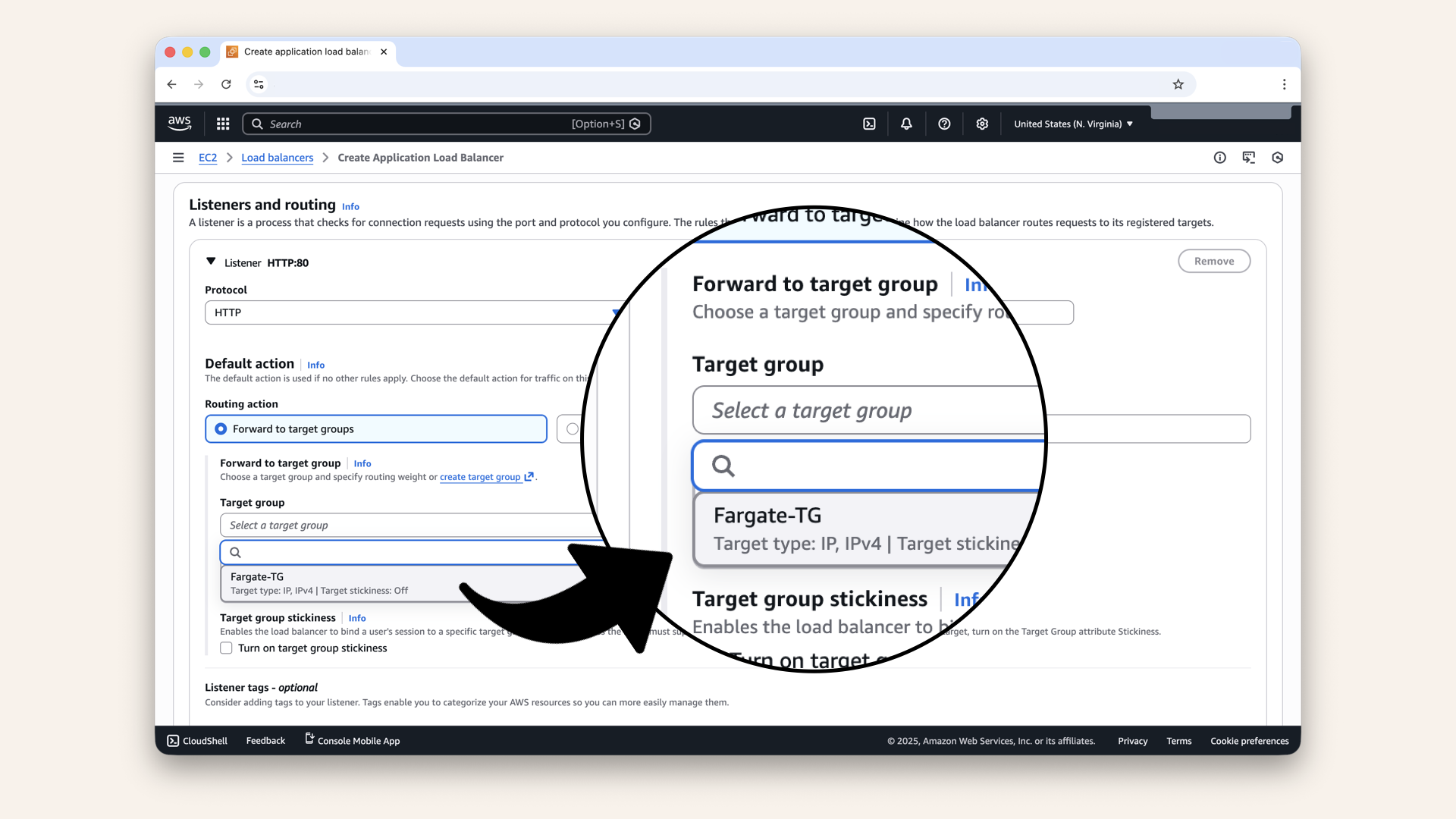

Select Fargate-TG as Default action

Select Fargate-TG as Target group for Default action

What this means:

  • ALB listens on port 80
  • When traffic arrives, forwards it to Fargate-TG
  • Target Group routes to containers on port 6060

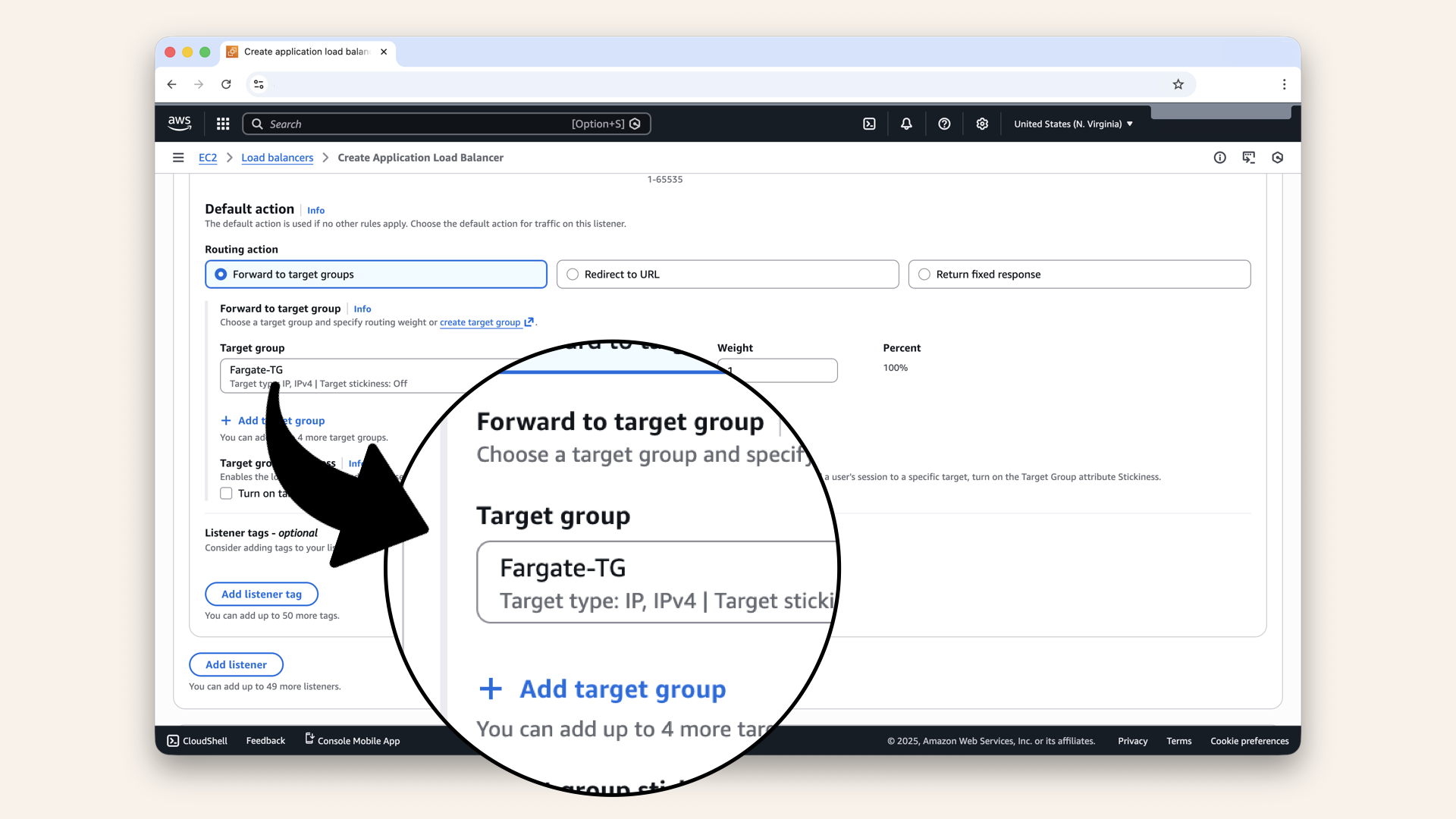

Select Fargate-TG as Target group

Select Fargate-TG as Target group

Step 2.6: Review and create​

Scroll down and review all settings:

Summary should show:
✅ Name: Fargate-ALB
✅ Scheme: Internet-facing
✅ Subnets: PublicSubnet-1, PublicSubnet-2
✅ Security group: ALB-SG
✅ Listener: HTTP:80 → Fargate-TG

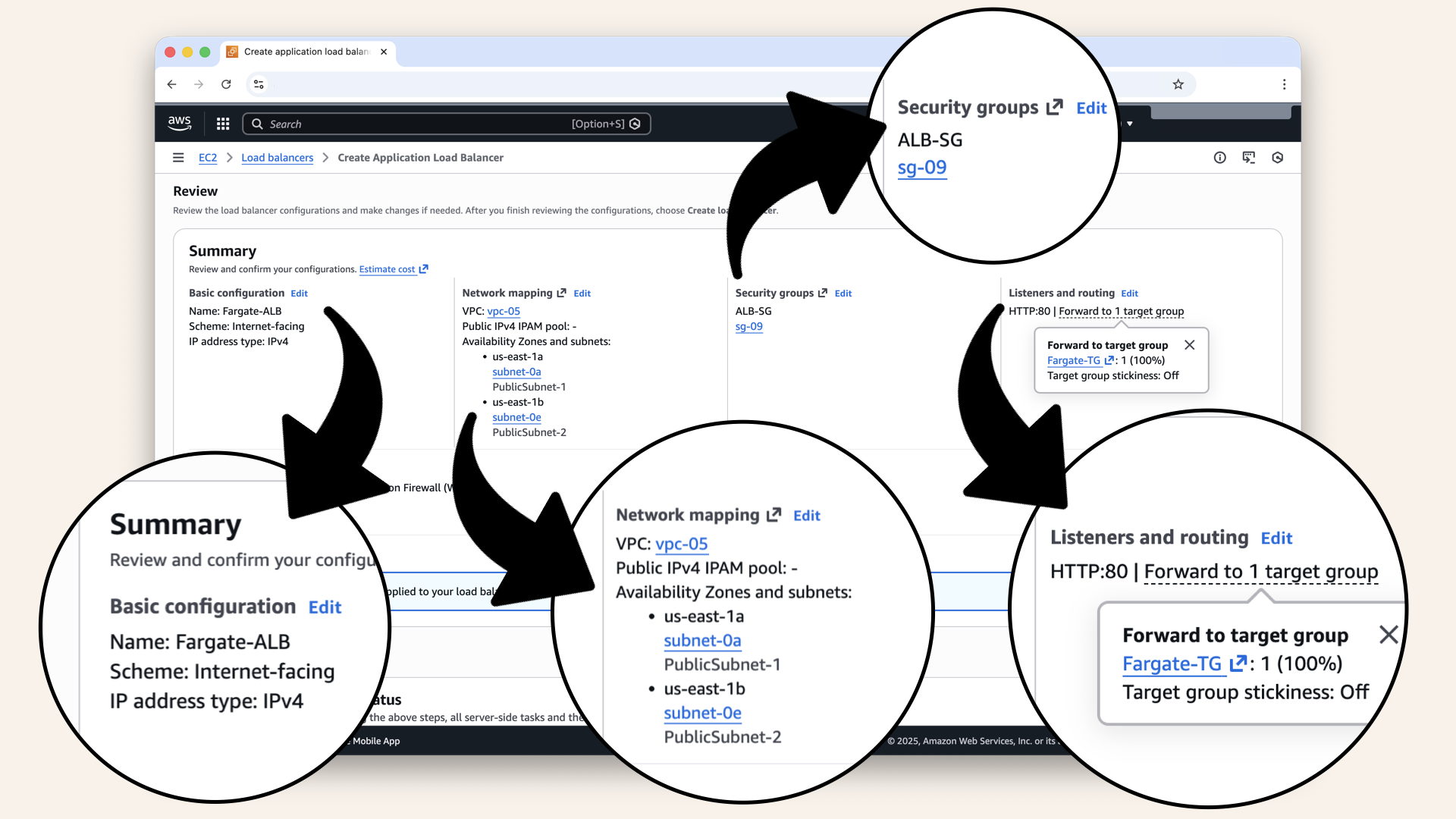

Scroll down and review all settings

Scroll down and review all settings

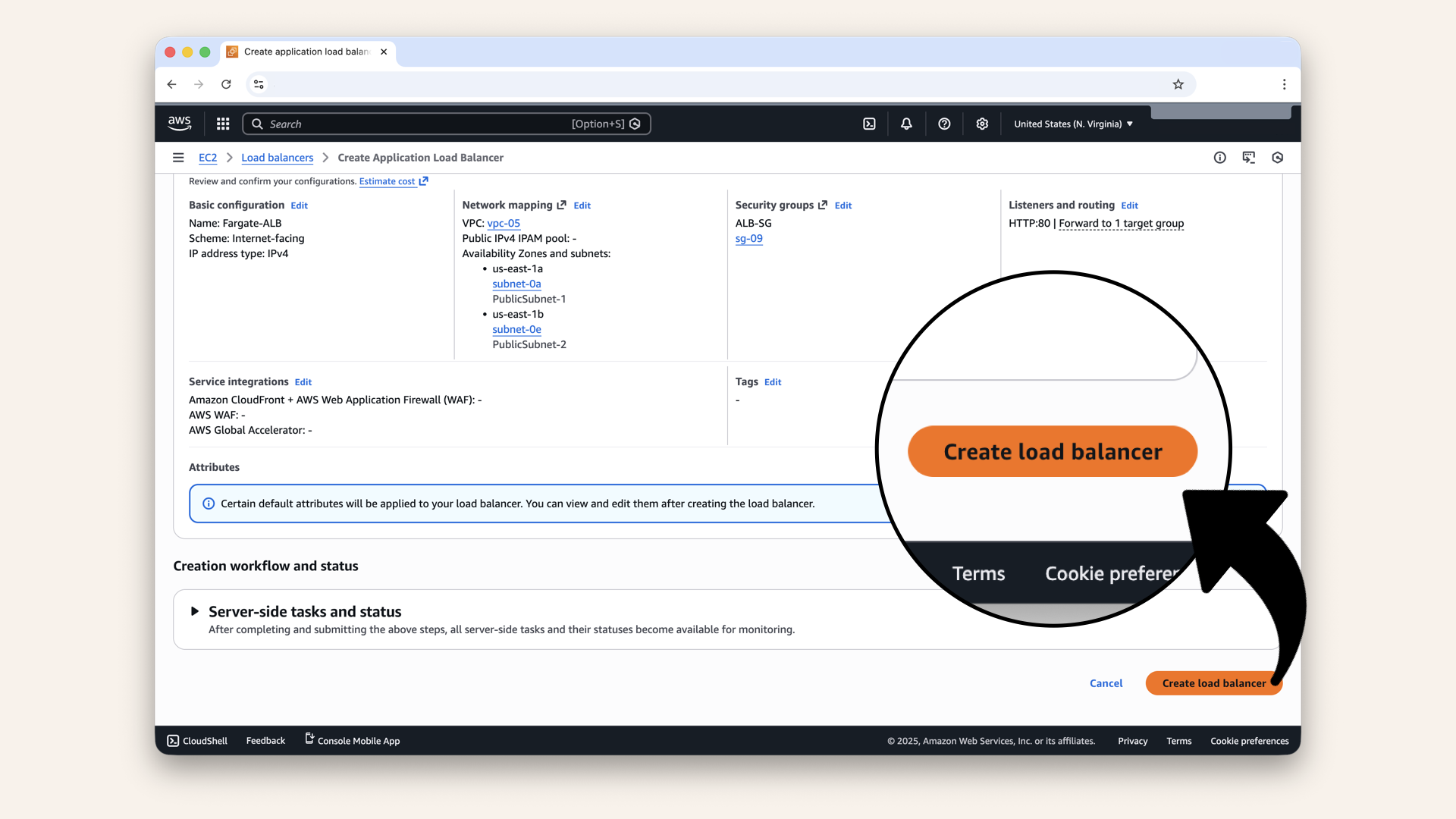

Scroll down an click Create load balancer:

Scroll down and click Create load balancer

Scroll down and click Create load balancer

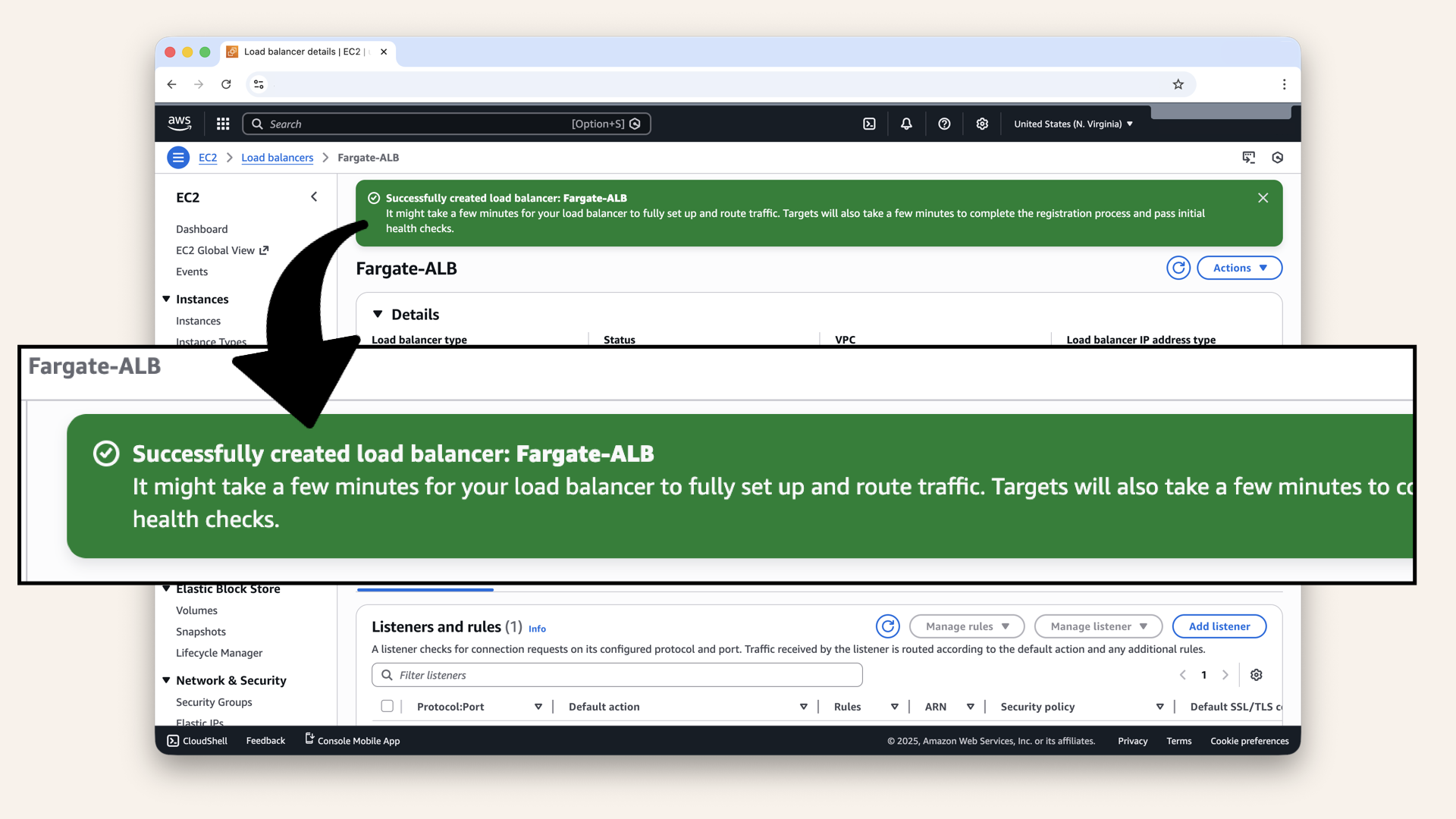

✅ You should see: "Load balancer created successfully":

You should see: Load balancer created successfully

You should see: "Load balancer created successfully"

Step 3: Wait for ALB to become active​

ALB takes 3-5 minutes to provision.

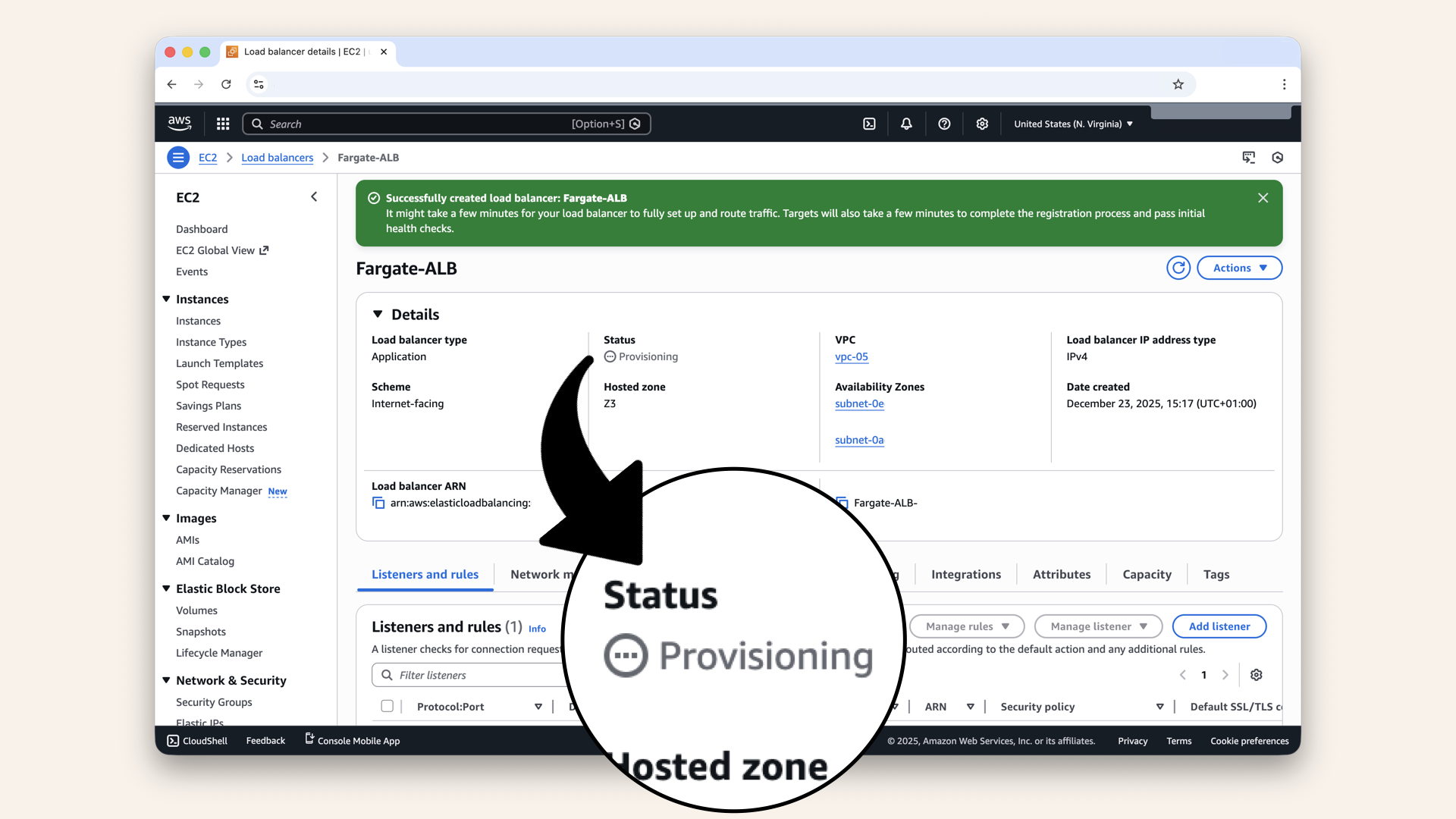

You'll see your ALB with State: Provisioning:

You will see your ALB with State: Provisioning

You'll see your ALB with State: Provisioning

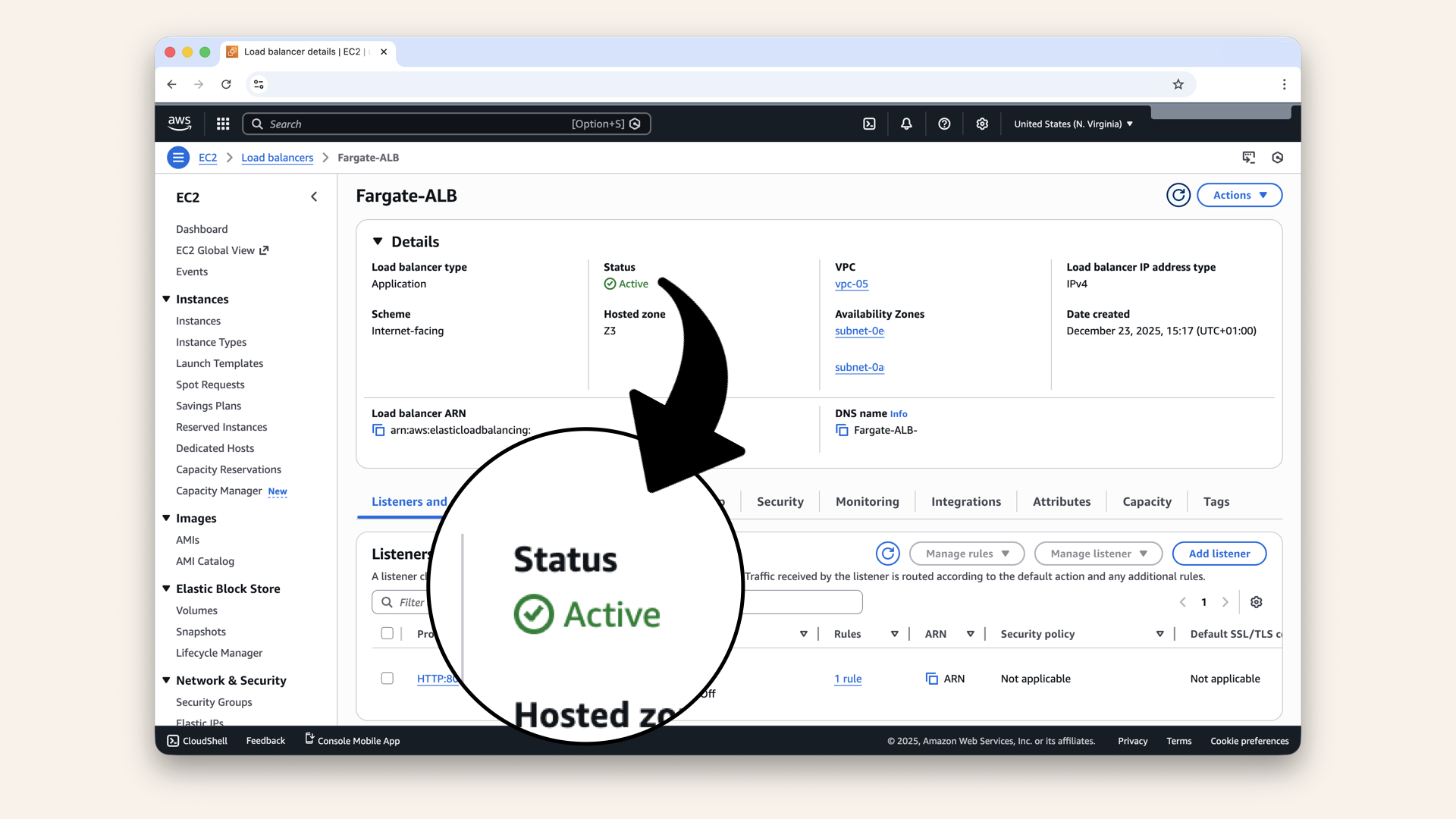

Refresh the page until State changes to Active:

Refresh the page until State changes to Active

Refresh the page until State changes to Active

✅ When it shows Active → your ALB is ready!

Step 4: Check your ALB's DNS name​

Under Details you'll see the DNS name:

Under Details youll see the DNS name

Under Details you'll see the DNS name

This is your app's public endpoint.

Right now it return 503 (no healthy targets) because we haven't deployed containers yet.

After Day 13 (Fargate deployment):

  • Containers will register with Target Group
  • Health checks will pass
  • ALB will route traffic to containers
  • The DNS will work

Step 5: Verify ALB configuration​

Let's make sure everything is configured correctly.

Check listeners​

Go to the Listeners tab:

You should see:

ProtocolPortDefault action
HTTP80Forward to Fargate-TG

Verify HTTP listener is configured:

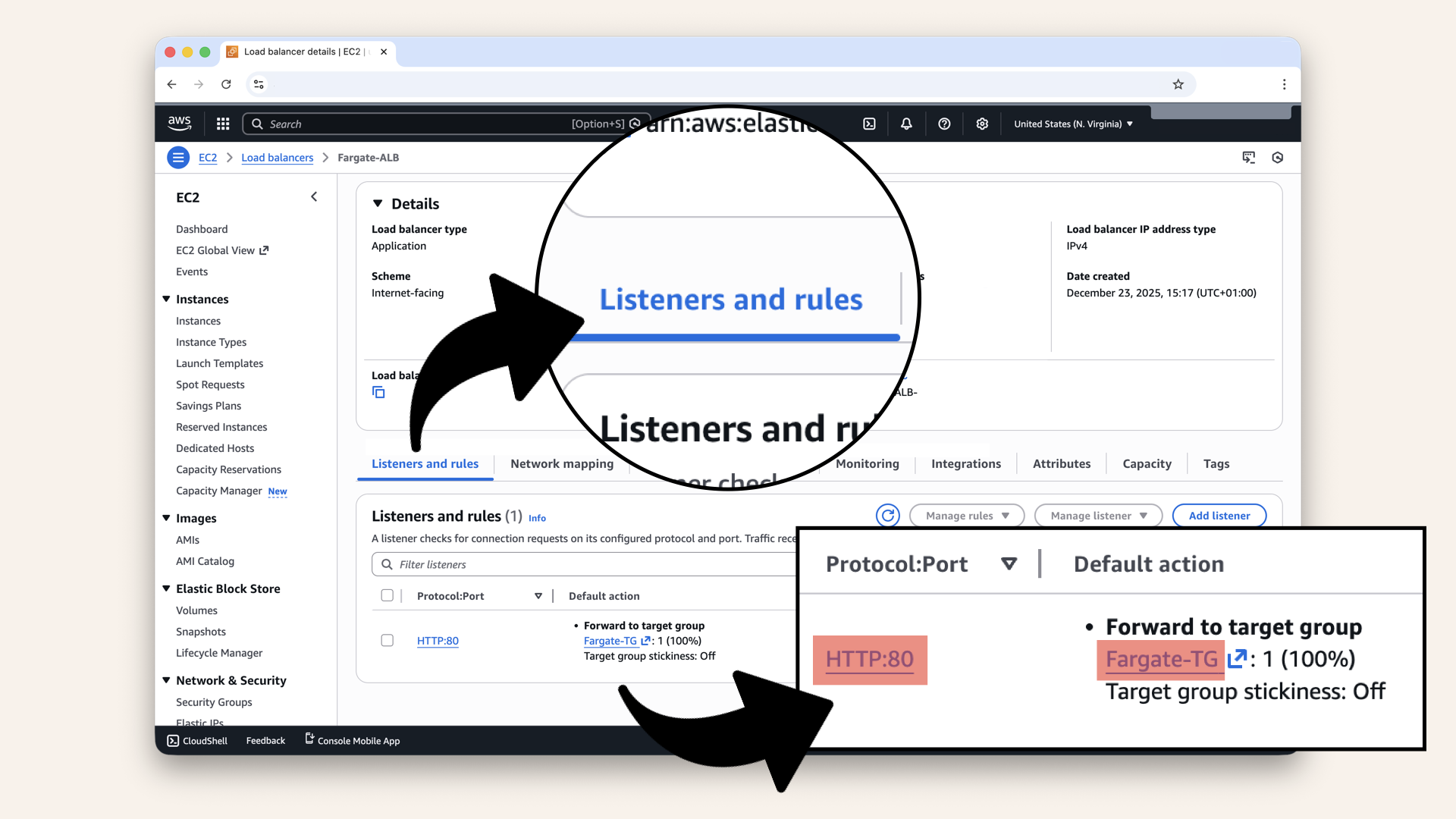

Go to the Listeners tab and verify listeners

Go to the Listeners tab and verify HTTP listener is configured

Check security groups​

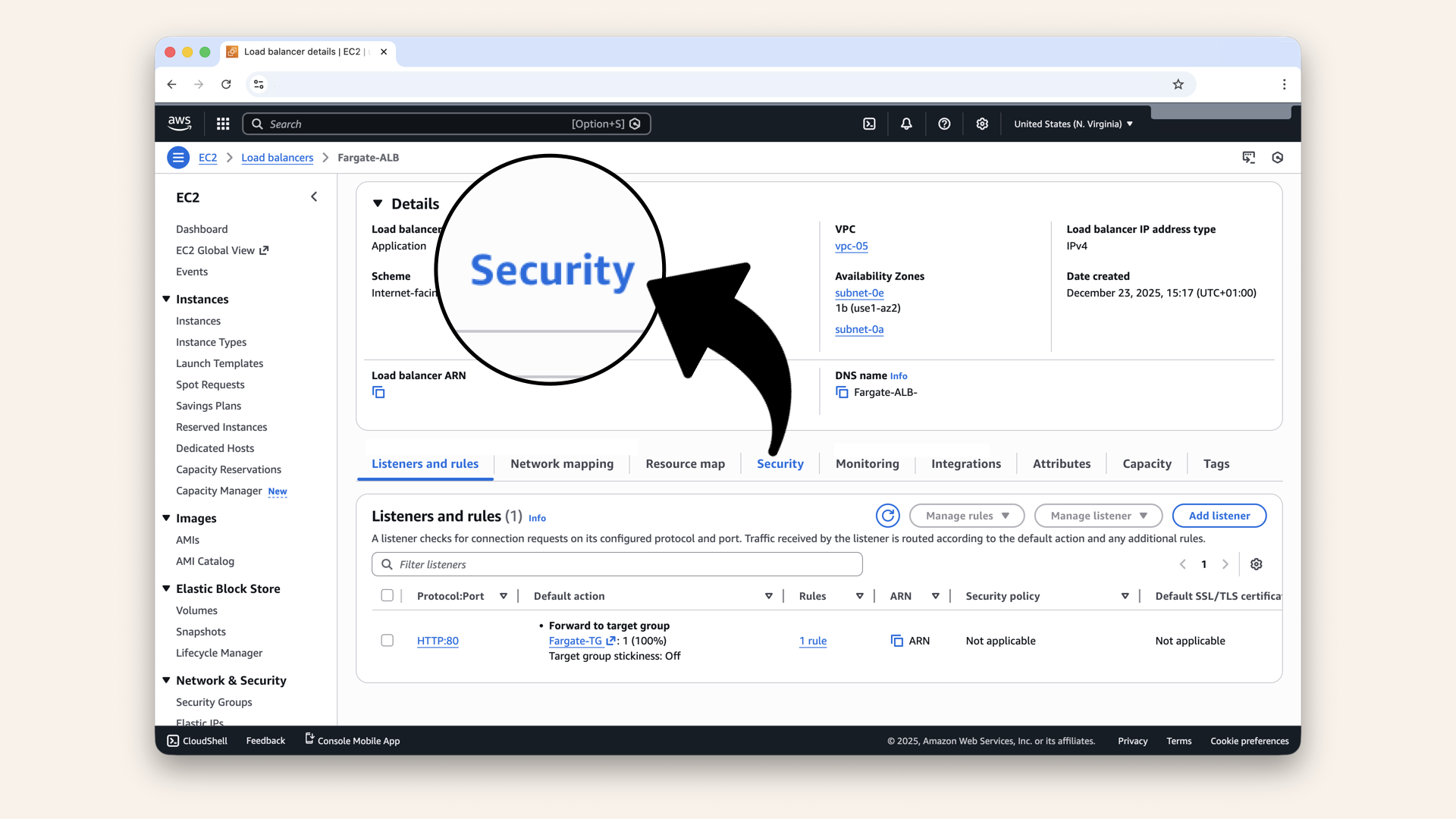

Go to the Security tab:

Go to the Security tab

Go to the Security tab

You should see:

  • Security group: ALB-SG

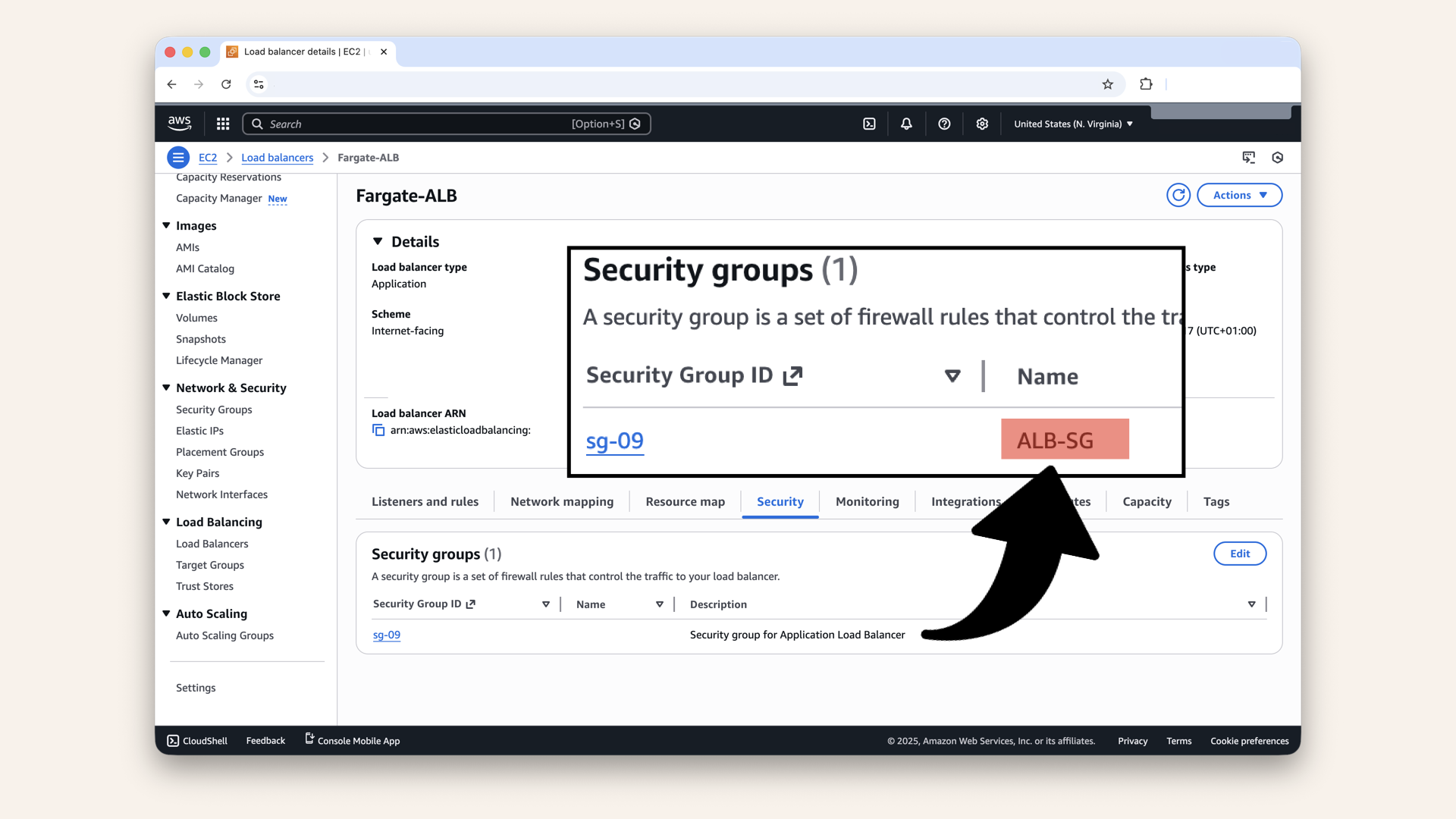

Verify ALB-SG is attached:

Verify ALB-SG is attached

Verify ALB-SG is attached

Check subnets​

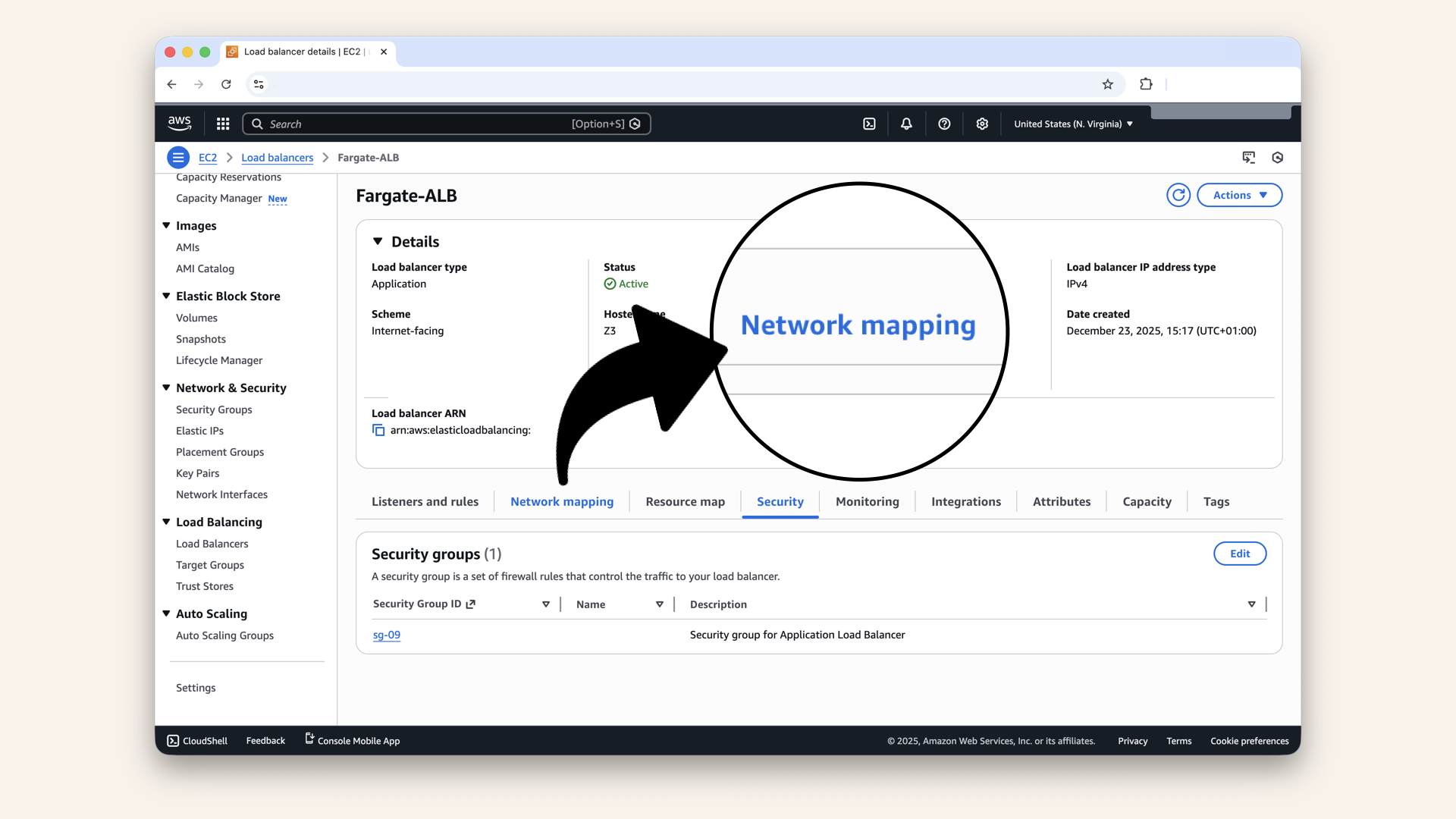

Go to the Network mapping tab:

Go to the Network mapping tab

Go to the Network mapping tab

You should see 2 subnets:
✅ PublicSubnet-1
✅ PublicSubnet-2

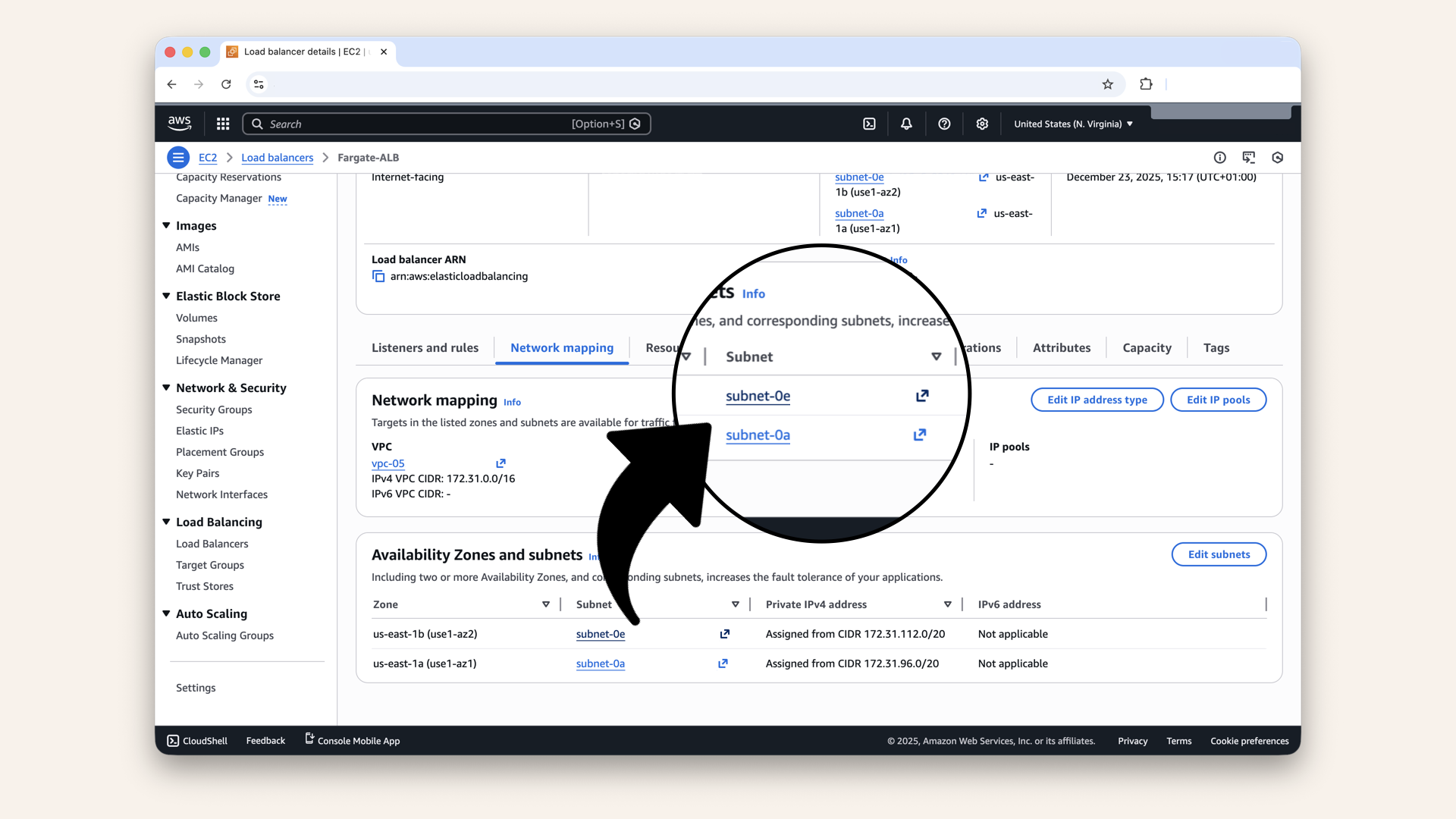

You should see 2 subnets, verify ALB is in both public subnets:

You should see 2 subnets

You should see 2 subnets, verify ALB is in both public subnets

You only see subnet ID

If you only see the subnet ID (subnet-123abc) and not the subnet name (PublicSubnet-1), click on each subnet ID.

This opens a new tab where you can verify the subnet name:

Click on each subnet ID, this opens a new tab where you can verify the subnet name

Click on each subnet ID, this opens a new tab where you can verify the subnet name

If all of these look good → your ALB is configured correctly! ✅

✅ Today's win​

If you completed all steps:

✅ Created Target Group (Fargate-TG) for post 6060
✅ Configured health checks at /health
✅ Created Application Load Balancer (Fargate-ALB)
✅ Deployed ALB in public subnets
✅ Attached ALB-SG for security
✅ Configured HTTP listener on port 80
✅ Got your public DNS endpoint

You just built the front-yard house.

Your infrastructure can now:

  • Accept traffic from the internet (via ALB)
  • Route it to private containers (via Target Group)
  • Check container health (via health checks)
  • Provide a stable endpoint (via DNS name)

Tomorrow, we'll add a custom domain.

Understanding what we built​

The complete traffic flow:

Security layers:

  1. ✅ ALB in public subnet (internet-accessible)
  2. ✅ ALB-SG allows HTTP/HTTPS from anywhere
  3. ✅ Containers in private subnet (not directly accessible)
  4. ✅ Fargate-SG only allows traffic from ALB-SG
  5. ✅ Health checks ensure only healthy containers receive traffic

This is production-grade architecture.

ALB costs​

ALB is not free tier eligible

Pricing: [as of Dec 2025]

  • $0.0225 per hour (~$16.20/month)
  • $0.008 per LCU-hour (Load Balancer Capacity Unit)

For low traffic (testing/dev):

  • ALB cost: ~$16/month
  • LCU cost: ~$1-2/month
    → Total: ~$18/month

For production with moderate traffic:

  • ALB cost: ~$16/month
  • LCU cost: ~$5-10/month
    → Total: ~$25/month
Cost optimization

To reduce costs during development:

  1. Delete ALB when not actively testing (you can recreate anytime)
  2. Monitor LCU usage in CloudWatch

For production:

  • ALB is essential and worth the cost
  • High availability across AZs
  • Automatic scaling
  • Health checks and failover

Why we're not adding HTTPS yet​

You might notice: We only configured HTTP (port 80), not HTTPS (port 443).

That's intentional.

To add HTTPS, you need:

  1. A custom domain name (Day 10)
  2. An SSL certificate (Day 11)

Tomorrow and the next day, we'll:

  • Get a domain from Route 53
  • Create SSL certificate with Automatic
  • Add HTTPS listener to ALB
  • Redirect HTTP → HTTPS

For now, HTTP is enough to test the infrastructure.

Common mistakes (and how to avoid them)​

❌ Mistake #1: ALB in private subnets​

Result: ALB can't be accessed from internet
Fix: ALB must be in public subnets (PublicSubnet-1 & PublicSubnet-2)

❌ Mistake #2: Wrong security group​

Result: Traffic blocked, can't reach ALB
Fix: Use ALB-SG (allows HTTP/HTTPS from 0.0.0.0/0)

❌ Mistake #3: Only one availability zone selected​

Result: ALB creation fails
Fix: Select at least 2 AZs (PublicSubnet-1 in us-east-1a and PublicSubnet-2 in us-east-1b)

❌ Mistake #4: Target Group protocol mismatch​

Result: Health checks fail, traffic doesn't route

Fix:

  • Target Group: HTTP on port 6060
  • ALB listener: HTTP on port 80 These can be different. ALB translates 80 → 6060

Troubleshooting​

ALB stuck in "Provisioning" state

If ALB stays "Provisioning" for more than 10 minutes:

  1. Check if you selected 2+ availability zones
  2. Verify subnets are public (have route to IGW)
  3. Check AWS Service Health Dashboard
  4. Delete and recreate if stuck after 15 minutes

Common cause: Subnet doesn't have route to Internet Gateway

Can't access ALB's DNS name (connection refused)

Check:

  1. ALB state is "Active" (not "Provisioning")
  2. Security group ALB-SG allows inbound HTTP (80) from 0.0.0.0/0
  3. You're using HTTP (not HTTPS) → http://your-alb-dns.com
  4. ALB is in public subnets

Note: You'll get 503 "Service Unavailable" until you deploy containers (Day 13). That's normal!

ALB returns 503 Service Unavailable

This is EXPECTED right now!

Why:

  • Target Group has no registered targets (containers)
  • No healthy targets = ALB returns 503

When it will work:

  • After Day 13 (Fargate deployment)
  • Containers register with Target Group
  • Health checks pass
  • ALB routes traffic successfully

For now, 503 proves:

  • ✅ ALB is accessible
  • ✅ Security group allows traffic
  • ✅ Listener is configured
  • ❌ Just need to deploy containers!
Target Group shows "unused"

This is normal!

Target Group won't have any targets until:

  • You deploy Fargate containers (Day 13)
  • ECS service automatically registers container IPs

For now:

  • Target Group exists ✅
  • Health check configured ✅
  • Ready for Fargate ✅

Tomorrow's preview​

Today: You built the front door (ALB):

Think of an Application Load Balancer as the front-yard house

Think of an Application Load Balancer as the front-yard house

Tomorrow (Day 10): We get a custom domain name

What we'll do:
Right now, your ALB has an ugly DNS name: fargate-alb-1234567890.us-east-1.elb.amazonaws.com

Tomorrow we'll:

  1. Register a domain with Route 53 (or use an existing one)
  2. Create a hosted zone
  3. Add an A record pointing to your ALB
  4. Get a clean URL like: ai-caller.yourdomain.com

Why this matters:

  • Easier to remember
  • Professional
  • Required for SSL certificate (Day 11)
  • Better for users

After Day 10, you'll have a real domain pointing to your AI agent!

What we learned today​

1. What Application Load Balancers are​

Managed AWS service that routes HTTP/HTTPS traffic to targets

2. How Target Groups work​

Collections of targets (containers) that receive traffic from ALB

3. Why ALB lives in public subnets​

Needs internet access while routing to private containers

4. Health checks keep apps reliable​

ALB automatically detects and routes around unhealthy containers

5. Listeners configure traffic routing​

Protocol + Port + Action (forward to Target Group)

The application layer begins​

Days 1-2: Local development (your laptop) ✅
Day 3: VPC (your territory) ✅
Day 4: Subnets (front yards vs back yards) ✅
Day 5: NAT Gateway (back gate) ✅
Day 6: Route Tables (the roads) ✅
Day 7: Security Groups (the bouncers) ✅
Day 8: Test Your Network (validation) ✅
Day 9: Application Load Balancer (front door) ← YOU ARE HERE ✅
Day 10: Custom Domain (DNS)
Day 11: SSL Certificate (HTTPS)
Day 12: Deploy Frontend
Days 13-17: Fargate Deployment
Days 18-24: Features & Polish

You're over 1/3 done! Infrastructure is 90% complete! 🚀

Share your progress​

ALB deployed? Share it!

Twitter/X:

"Day 9: Built an Application Load Balancer: the front door to my AI calling system. Accepts HTTP traffic from internet, routes to private containers. Got my public endpoint! Following @norahsakal's advent calendar 🎄"

LinkedIn:

"Day 9 of building AI calling agents: Created an Application Load Balancer in public subnets. It accepts internet traffic and routes to Fargate containers in private subnets. Production-ready front door with health checks and auto-scaling!"

Tag me! I want to celebrate your progress! 🎉

This advent calendar is completely free.

But if you want:

✅ Complete codebase (one clean repo)
✅ Complete walkthroughs
✅ Support when stuck
✅ Production templates
✅ Advanced features

Join the waitlist for the full course (launching February 2026):

Building something with AI calling?

Let's chat about your use case!
Schedule a free call ↗ - no pitch, just two builders talking.

Tomorrow: Day 10 - Get your custom domain 🌐

See you then!

— Norah
