Day 13: Build your secure backend trigger

January 17, 2026 · 37 min read

Norah Klintberg Sakal

AI Consultant & Developer

Build your secure backend trigger

What you'll learn

How to build a secure Lambda backend with API Gateway and Cognito authorization to trigger AI calls

Why you need a secure trigger

Day 12: You build a protected frontend

Today: We build the secure backend that triggers calls

Here's the critical security issue:

Remember your ALB endpoint we built on Day 9 ↗?

https://ai-caller.yourdomain.com

If we add a /make-call endpoint directly to Fargate:

POST https://ai-caller.yourdomain.com/make-call
→ Publicly accessible
→ Anyone can trigger calls
→ Could rack up *huge* OpenAI/Twilio bills
→ Even with frontend auth, the endpoint is exposed

This is not acceptable.

Think of it like your pool house control panel:

Without backend protection:

The control panel inside your pool house is exposed
Anyone who gets in can pull the "Make Call" lever
Each pull racks up Twilio and OpenAI charges
You get a massive bill

With Lambda + API Gateway:

A locked cover protects the control panel (API Gateway)
The lock checks your invite before opening (Cognito Authorizer)
Only an authorized operator can pull levers (Lambda)
No valid token = no access to the controls

Solution: Lock the control panel with Lambda + API Gateway + Cognito Authorizer

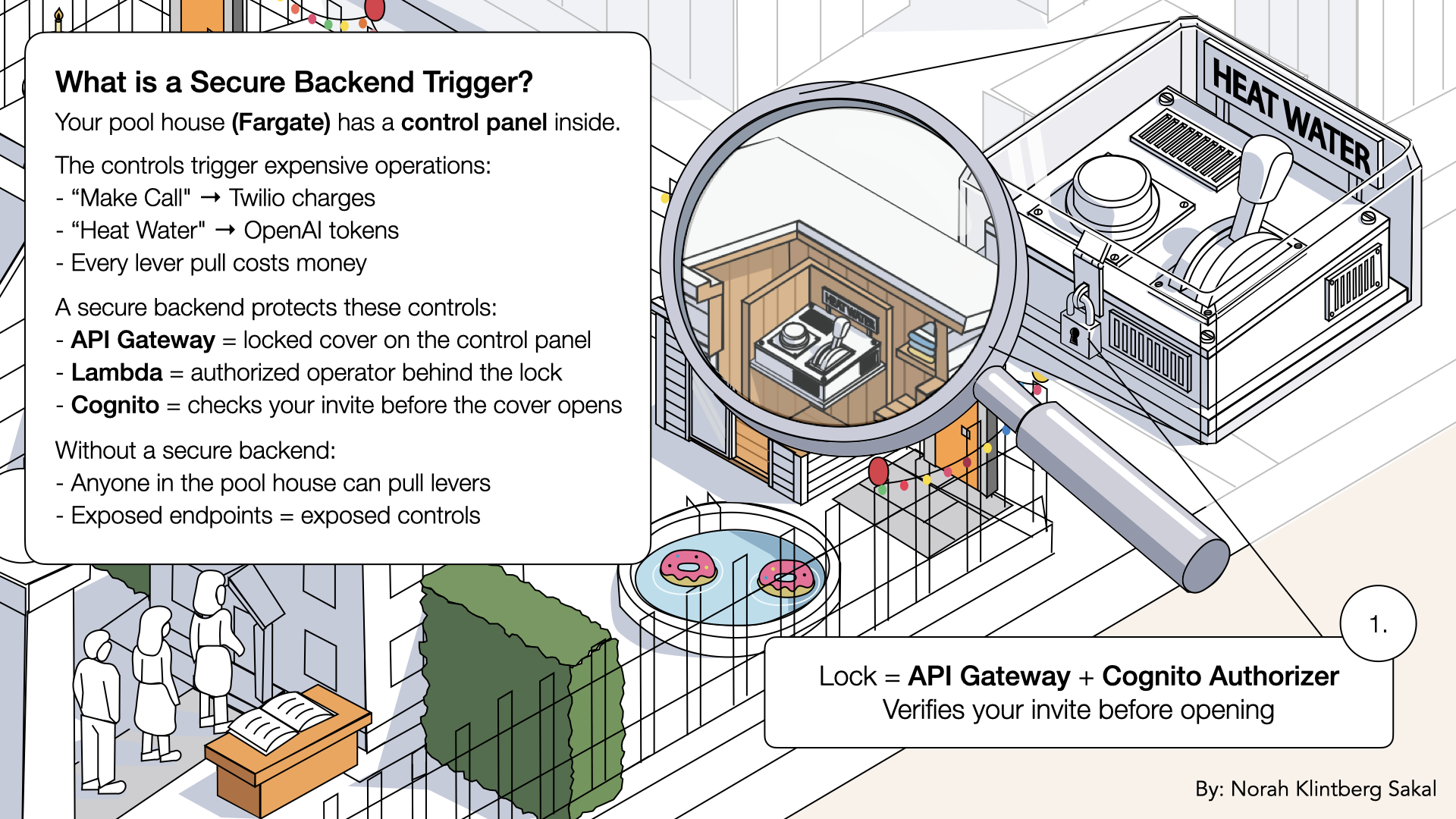

API Gateway = locked cover on the control panel inside your pool house:

API Gateway = locked cover on the control panel inside your pool house

API Gateway = locked cover on the control panel inside your pool house

The Lambda function isn't publicly accessible. API Gateway checks your Cognito token before letting any requests through. Only authenticated users can trigger calls.

By the end of today, you'll have:

✅ Lambda function that triggers calls
✅ API Gateway with Cognito authorizer
✅ Frontend connected to secure endpoint
✅ Test call triggered (mock response for now)
✅ No public exposure of call trigger

Let's build your secure backend 🔐

What you'll build today

A complete secure trigger system:

Component	Technology	Purpose
Function	AWS Lambda	Triggers AI calls
API Layer	API Gateway	HTTP endpoint + routing
Auth	Cognito Authorizer	Validates JWT tokens
Deployment	AWS SAM	Infrastructure as code
Build	CloudShell	No local AWS setup needed

Security flow:

Tomorrow: Lambda will actually trigger Fargate. Today we prove the security layer works.

What you'll learn

Why Lambda is more secure than public endpoints
How API Gateway protects your backend
How Cognito Authorizers validate JWTs
How to deploy with AWS SAM
How to use CloudShell (no local AWS setup)

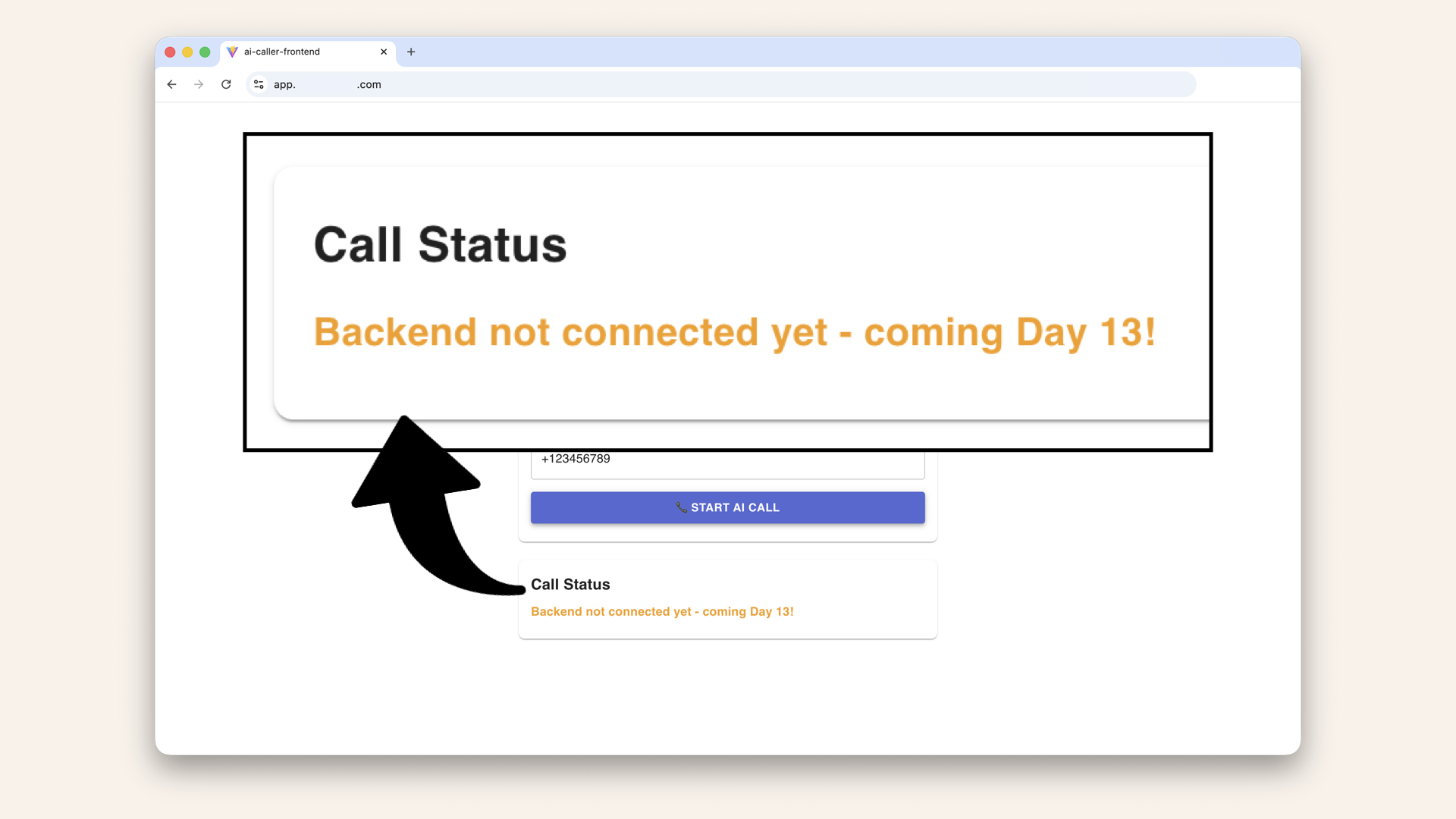

How to connect frontend to authenticated API

This advent calendar is completely free.

But if you want:

✅ Complete codebase (one clean repo)
✅ Complete walkthroughs
✅ Support when stuck
✅ Production templates
✅ Advanced features

Join the waitlist for the full course (launching February 2026):

Building something with AI calling? Let's chat about your use case!
Schedule a free call ↗ - no pitch, just two builders talking.

Time required

30-40 minutes

SAM project setup: 10 min
Lambda + API Gateway: 10 min
Cognito Authorizer: 10 min
Frontend connection: 10 min

Prerequisites

We're using CloudShell

No local AWS CLI setup needed

We'll build locally, then deploy from AWS CloudShell. This saves you from configuring IAM credentials on your machine.

Understanding the architecture (3-minute primer)

Why not just add an endpoint to Fargate?

The problem with public endpoints:

Frontend → ALB → Fargate /make-call
                    ↓
              Anyone can call this directly!
              curl https://ai-caller.yourdomain.com/make-call
              ↓
              💸💸💸 Massive bill

Even if your frontend requires login, the Fargate endpoint is still public. Bad actors can bypass your frontend entirely.

Why Lambda + API Gateway is secure

Frontend → API Gateway → Lambda → (tomorrow) Fargate
              ↓
         Cognito checks JWT
              ↓
         Invalid? → 401 Unauthorized
         Valid? → Lambda executes

Key differences:

Approach	Public Endpoint?	Auth Check
Fargate direct	✅ Yes, ALB is public	❌ None (or DIY)
Lambda + API GW	❌ No direct access	✅ Built-in Cognito

Lambda is not publicly accessible.
It can only be invoked through API Gateway (which checks auth) or other AWS services.

What is AWS SAM?

SAM = Serverless Application Model

It's a framework for building serverless apps:

Defines Lambda functions
Creates API Gateway
Sets up IAM roles
All in one template.yaml file

Think of it like Docker Compose for serverless:

docker-compose.yaml → defines containers
template.yaml → defines Lambda + API Gateway

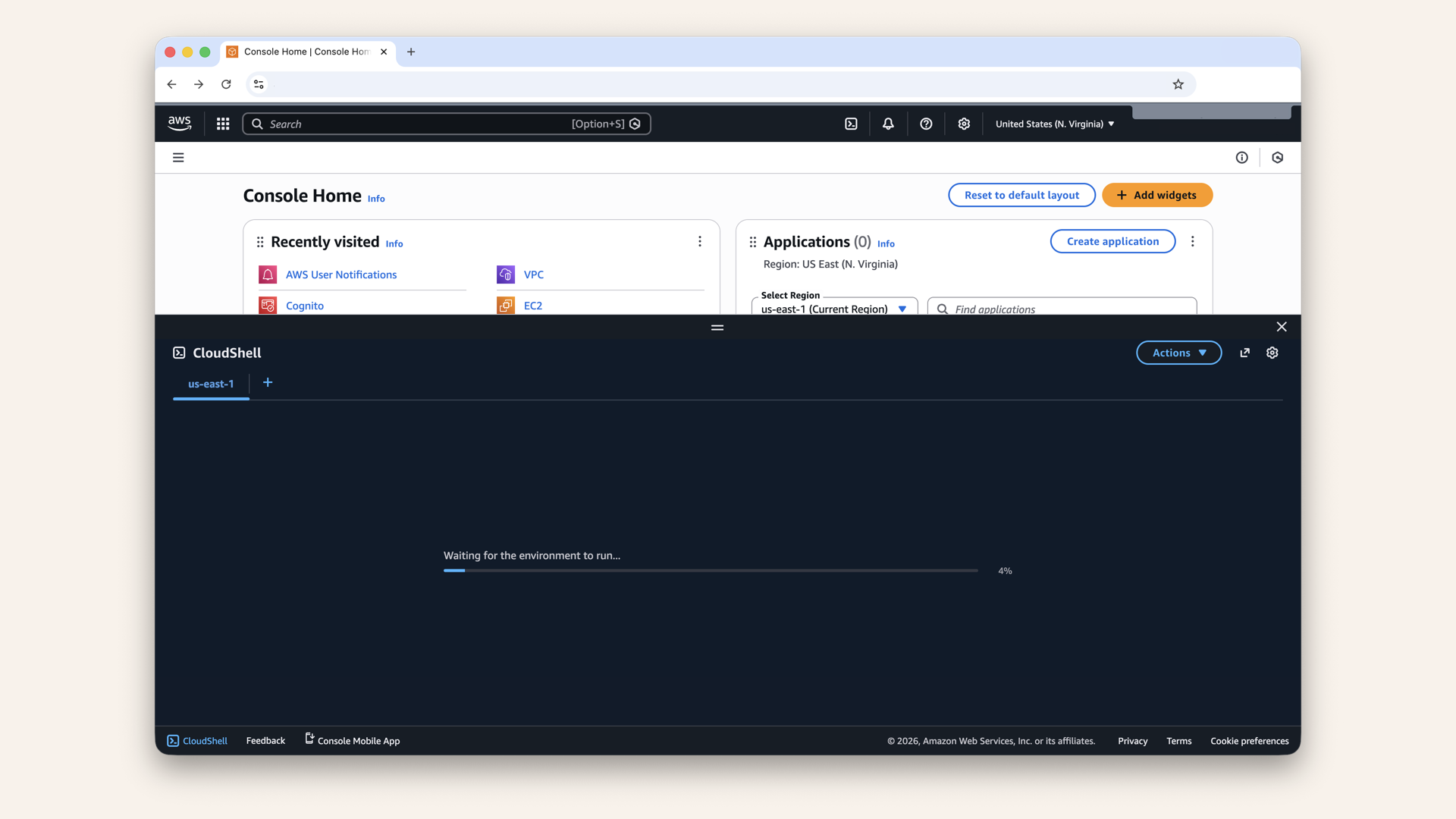

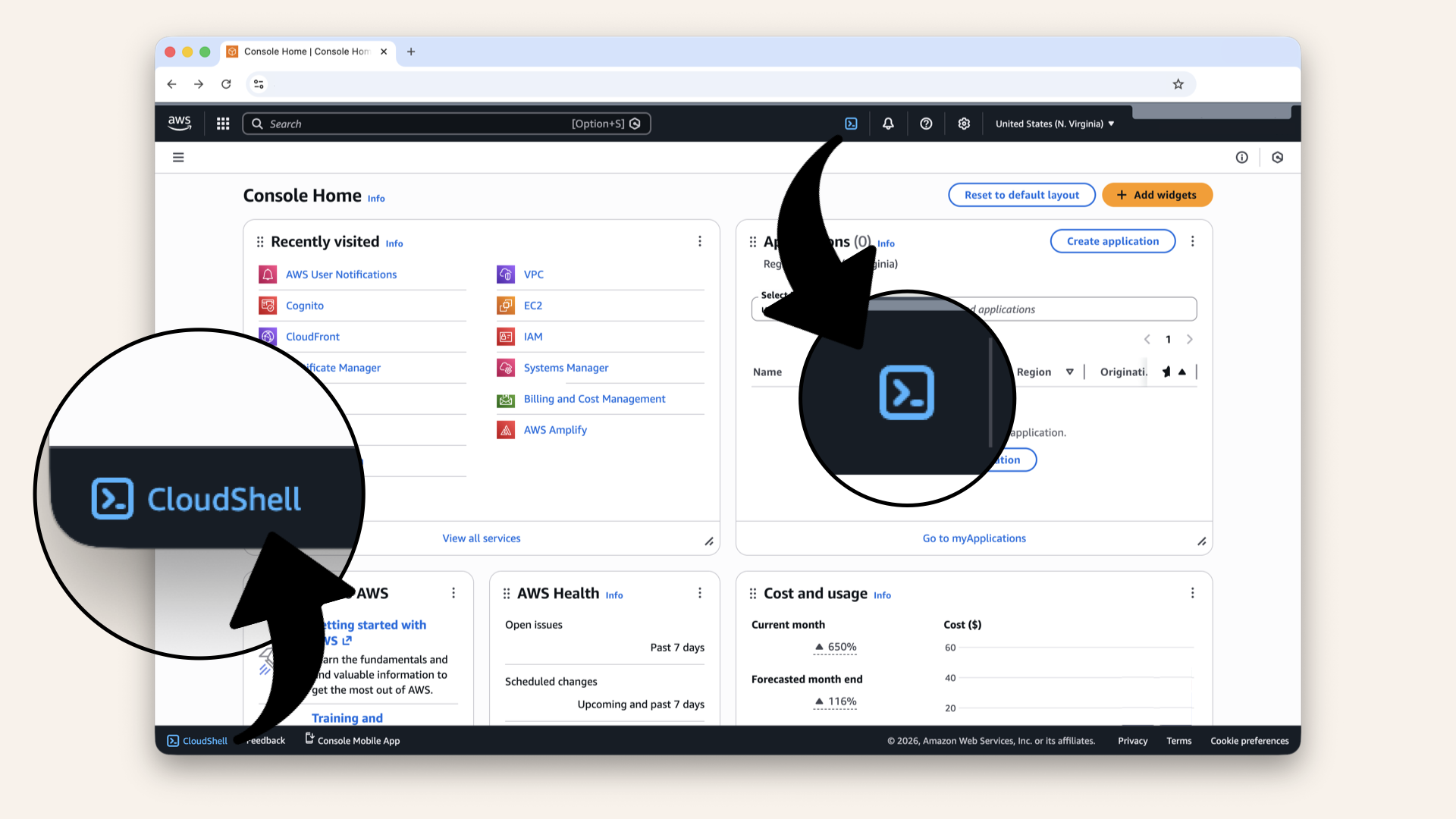

What is CloudShell?

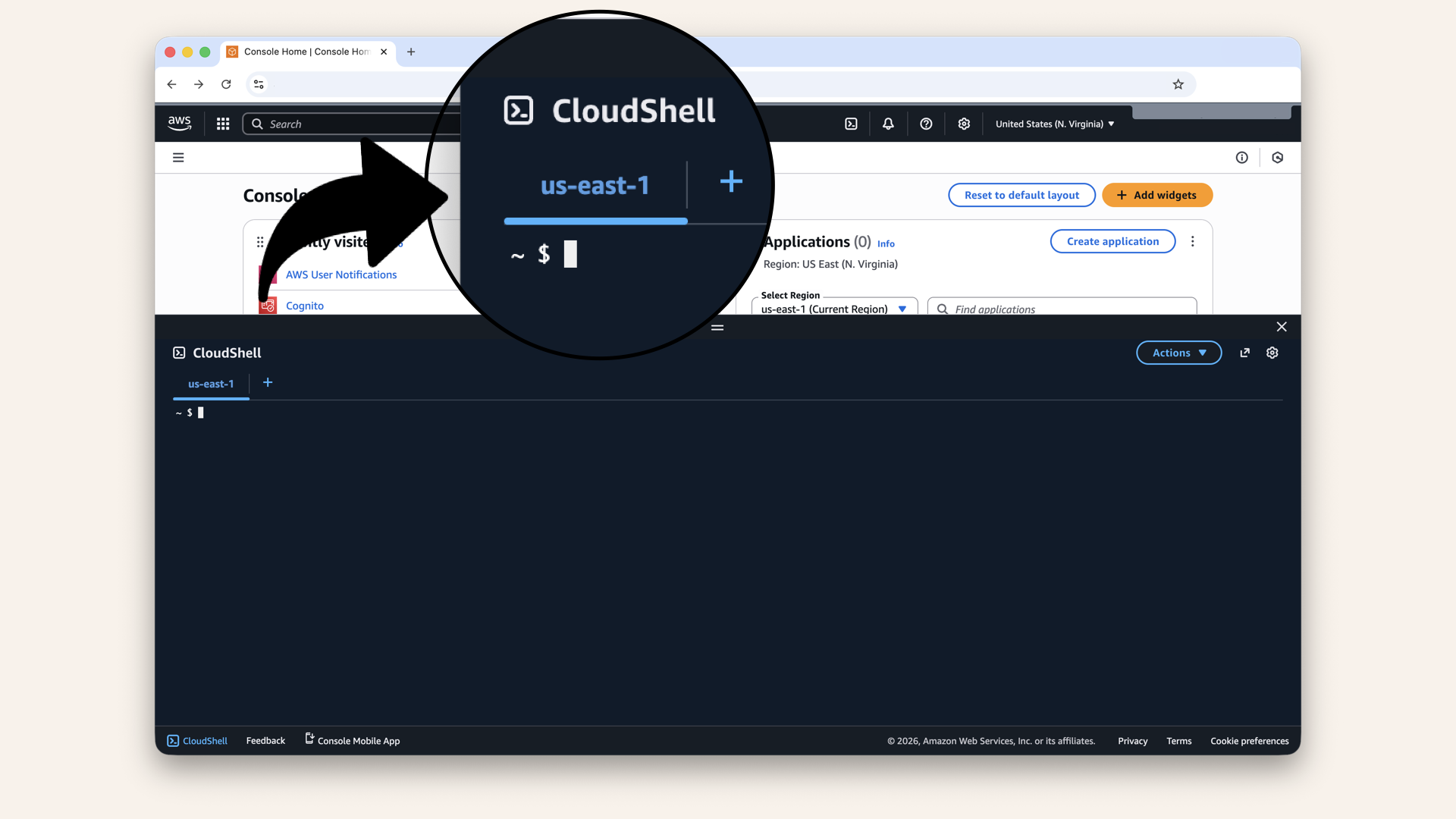

CloudShell = AWS terminal in your browser

Benefits:
✅ Pre-authenticated (uses your console login)
✅ AWS CLI pre-installed
✅ SAM CLI pre-installed
✅ No local IAM setup needed

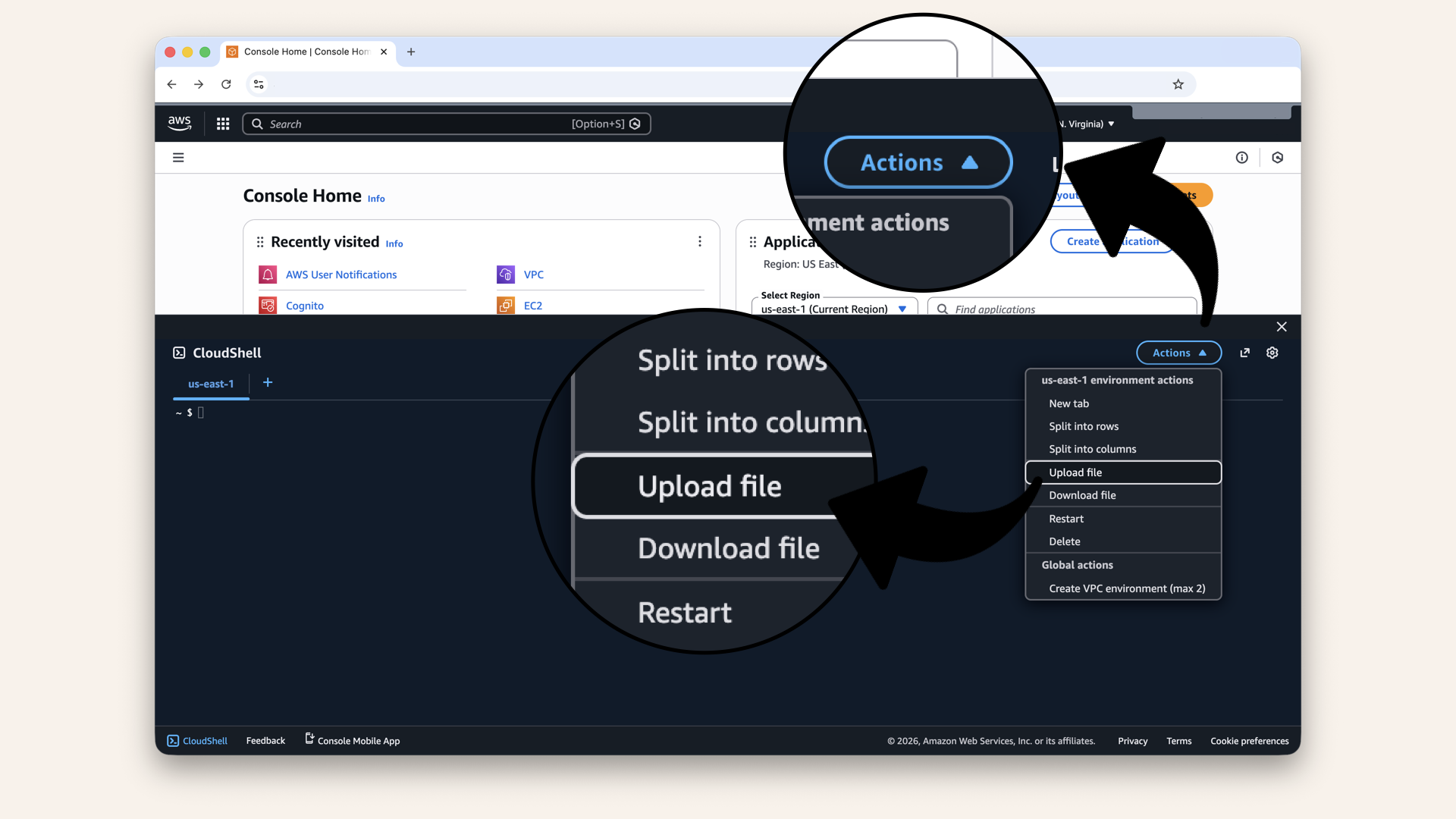

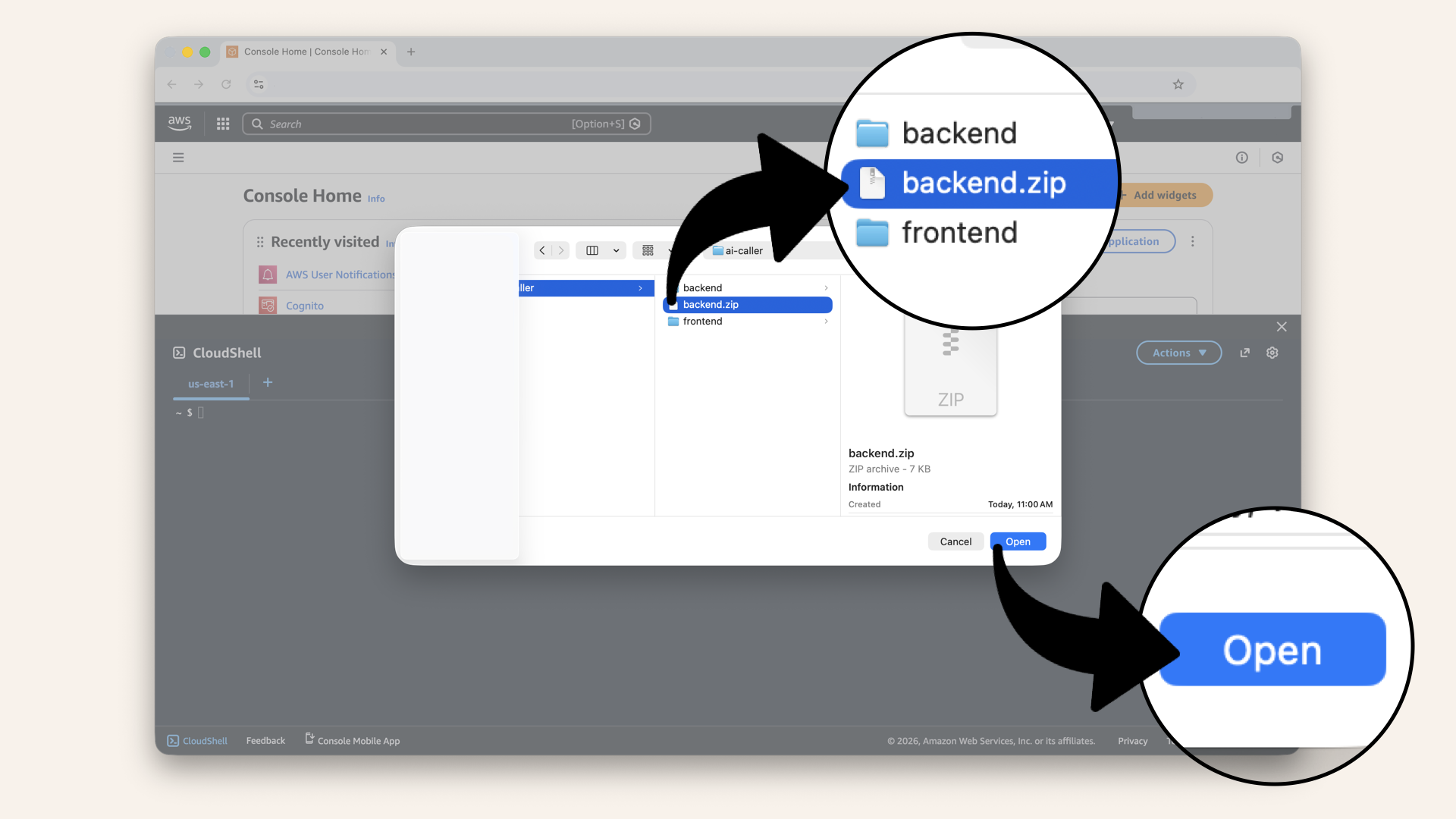

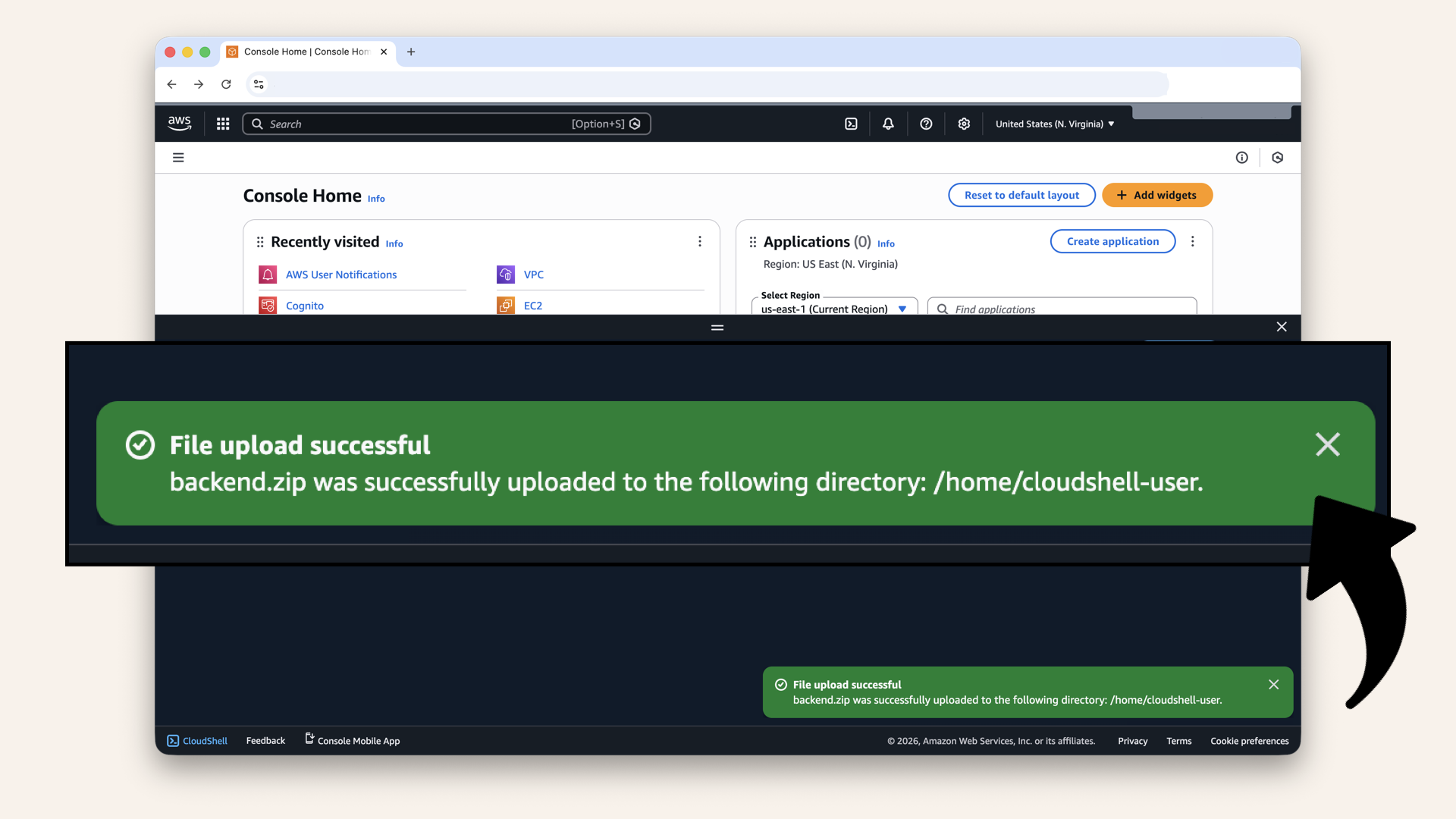

We'll build locally, upload to CloudShell, deploy from there.

Step 1: Install SAM CLI locally

Before we create our backend, we need to install SAM CLI.

Follow the installation guide for your OS: SAM CLI installation guide ↗

Run this in your terminal to verify installation:

Your terminal

sam --version

Expected output:

SAM CLI, version 1.x.x

Come back here once SAM CLI is installed.

Step 2: Create the backend project

Navigate to your ai-caller project folder:

Your terminal

cd ai-caller

Your project structure should look like:

ai-caller/
└── frontend/          # Day 12 frontend

Make sure you're in ai-caller

Make sure you're in ai-caller root before creating the backend project.

Run this to check:

Mac/Linux
Windows

Your terminal

pwd

Your terminal

cd

✅ You should see the path /ai-caller

Create the backend folder:

Your terminal

mkdir backend
cd backend

Your project structure should now look like:

ai-caller/
├── frontend/          # Day 12 frontend
└── backend/           # New folder

Step 2.1: Create template.yaml

This is the SAM configuration file that defines you Lambda and API Gateway.

Create in the backend folder:

ai-caller/
├── frontend/           # Day 12 frontend
└── backend/
    └── template.yaml   <---- Create this file

Open template.yaml in your editor.

Add this configuration to template.yaml:

template.yaml
AWSTemplateFormatVersion: '2010-09-09'
Transform: AWS::Serverless-2016-10-31
Description: AI Caller Backend - Secure trigger for AI calling agent

Parameters:
  CognitoUserPoolArn:
    Type: String
    Description: ARN of the Cognito User Pool from Day 12

Globals:
  Function:
    Timeout: 30
    Runtime: python3.9
    MemorySize: 256

Resources:
  # Lambda Function
  TriggerCallFunction:
    Type: AWS::Serverless::Function
    Properties:
      CodeUri: src/
      Handler: app.lambda_handler
      Description: Triggers AI calling agent
      Events:
        TriggerCall:
          Type: Api
          Properties:
            Path: /trigger-call
            Method: post
            RestApiId: !Ref CallApi

  # API Gateway with Cognito Authorizer
  CallApi:
    Type: AWS::Serverless::Api
    Properties:
      StageName: prod
      Cors:
        AllowMethods: "'GET,POST,OPTIONS'"
        AllowHeaders: "'Content-Type,Authorization,X-Amz-Date,X-Api-Key,X-Amz-Security-Token'"
        AllowOrigin: "'*'"
      Auth:
        DefaultAuthorizer: CognitoAuthorizer
        AddDefaultAuthorizerToCorsPreflight: false
        Authorizers:
          CognitoAuthorizer:
            UserPoolArn: !Ref CognitoUserPoolArn

  # Override auth for health endpoint (public)
  HealthApiMethod:
    Type: AWS::Serverless::Function
    Properties:
      CodeUri: src/
      Handler: app.health_handler
      Description: Health check endpoint
      Events:
        HealthCheck:
          Type: Api
          Properties:
            Path: /health
            Method: get
            RestApiId: !Ref CallApi
            Auth:
              Authorizer: NONE

Outputs:
  ApiUrl:
    Description: API Gateway endpoint URL
    Value: !Sub "https://${CallApi}.execute-api.${AWS::Region}.amazonaws.com/prod"
  TriggerCallEndpoint:
    Description: Trigger call endpoint (requires auth)
    Value: !Sub "https://${CallApi}.execute-api.${AWS::Region}.amazonaws.com/prod/trigger-call"
  HealthEndpoint:
    Description: Health check endpoint (public)
    Value: !Sub "https://${CallApi}.execute-api.${AWS::Region}.amazonaws.com/prod/health"

What this template does

Deep dive

Parameter:

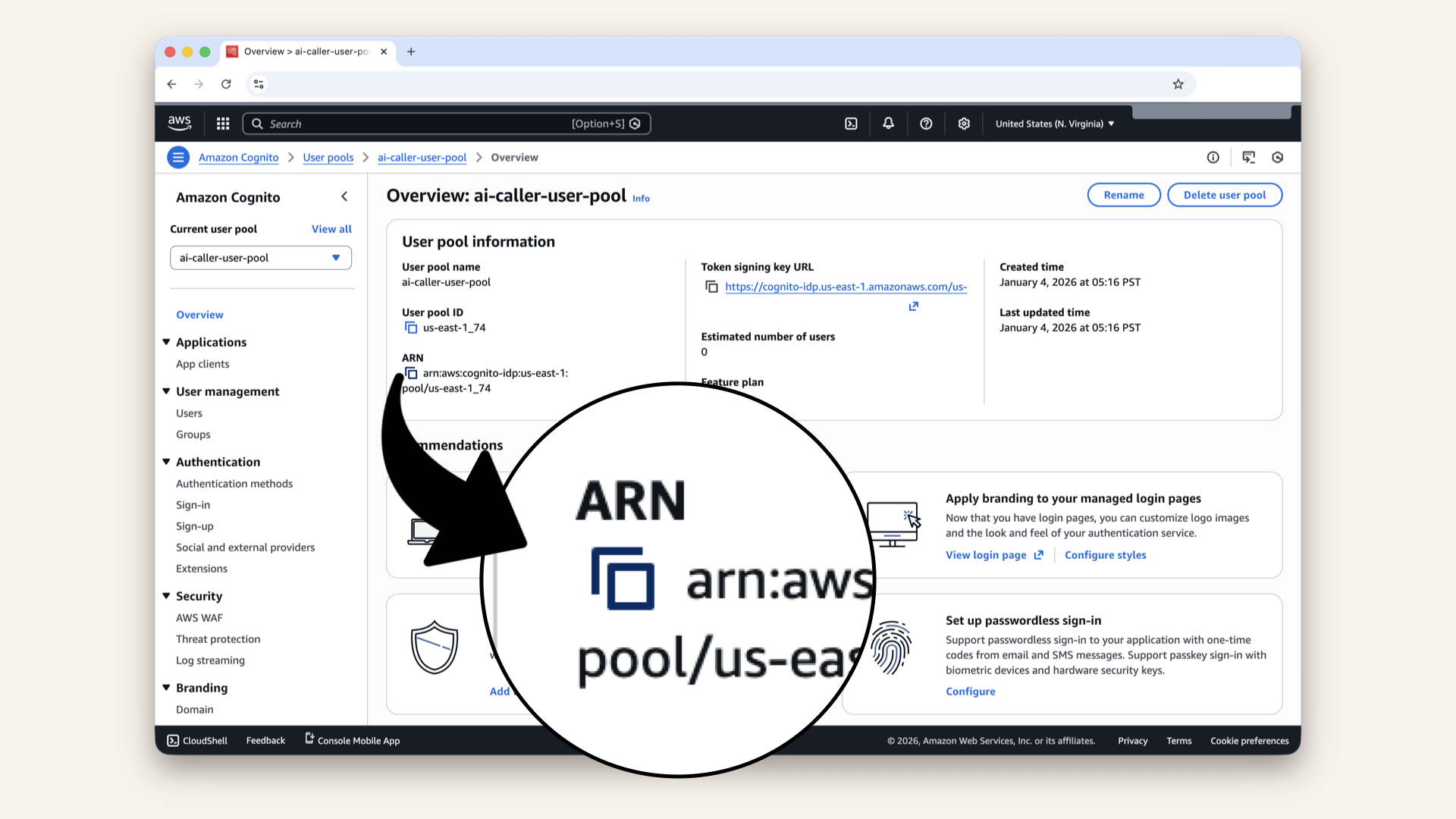

CognitoUserPoolArn: Your User Pool from Day 12 ↗ (passed during deploy)

Resources:

TriggerCallFunction: Lambda function that handles call triggers
CallApi: API Gateway with Cognito authorizer built-in
CognitoAuthorizer: Validates JWT tokens from your Cognito User Pool

Key security features:

DefaultAuthorizer: CognitoAuthorizer → All endpoints require auth by default
Auth: Authorizer: NONE on health → Health check is public (for monitoring)
CORS configured for frontend requests

Step 2.2: Create the Lambda function

Let's create the source directory src.

Run this in your terminal to create the folder in backend:

Your terminal

mkdir src

Your project structure should now look like:

ai-caller/
├── frontend/           # Day 12 frontend
└── backend/
    ├── template.yaml
    └── src             # New folder

Create in the src folder:

ai-caller/
├── frontend/           # Day 12 frontend
└── backend/
    ├── template.yaml
    └── src
        └── app.py      <-- Create this file

Add this code to app.py:

src/app.py
# src/app.py
import json
import os

def json_response(body, status_code=200):
    """Return a properly formatted API Gateway response."""
    return {
        "statusCode": status_code,
        "headers": {
            "Content-Type": "application/json",
            "Access-Control-Allow-Origin": "*",
            "Access-Control-Allow-Headers": "Content-Type,Authorization",
            "Access-Control-Allow-Methods": "GET,POST,OPTIONS"
        },
        "body": json.dumps(body)
    }

def health_handler(event, context):
    """Public health check endpoint."""
    return json_response({"status": "healthy", "service": "ai-caller-backend"})

def lambda_handler(event, context):
    """
    Main handler for triggering AI calls.

    This endpoint is protected by Cognito Authorizer.
    Only authenticated users can reach this code.
    """

    # Get the authenticated user info from Cognito
    try:
        claims = event.get('requestContext', {}).get('authorizer', {}).get('claims', {})
        user_email = claims.get('email', 'unknown')
        user_sub = claims.get('sub', 'unknown')
    except Exception:
        user_email = 'unknown'
        user_sub = 'unknown'

    # Parse the request body
    try:
        body = json.loads(event.get('body', '{}'))
    except json.JSONDecodeError:
        return json_response({"error": "Invalid JSON in request body"}, 400)

    # Get phone number from request
    phone_number = body.get('phone_number')

    if not phone_number:
        return json_response({"error": "phone_number is required"}, 400)

    # Validate phone number format (basic E.164 check)
    if not phone_number.startswith('+') or len(phone_number) < 10:
        return json_response({
            "error": "Invalid phone number format. Use E.164 format: +1234567890"
        }, 400)

    # For now, return a mock response
    # Tomorrow (Day 14): This will actually trigger Fargate!

    print(f"Call trigger requested by user: {user_email} (sub: {user_sub})")
    print(f"Target phone number: {phone_number}")

    return json_response({
        "success": True,
        "message": "Call trigger received! (Mock response - Fargate connection coming Day 14)",
        "data": {
            "phone_number": phone_number,
            "triggered_by": user_email,
            "status": "pending_fargate_integration"
        }
    })

What this code does

Deep dive

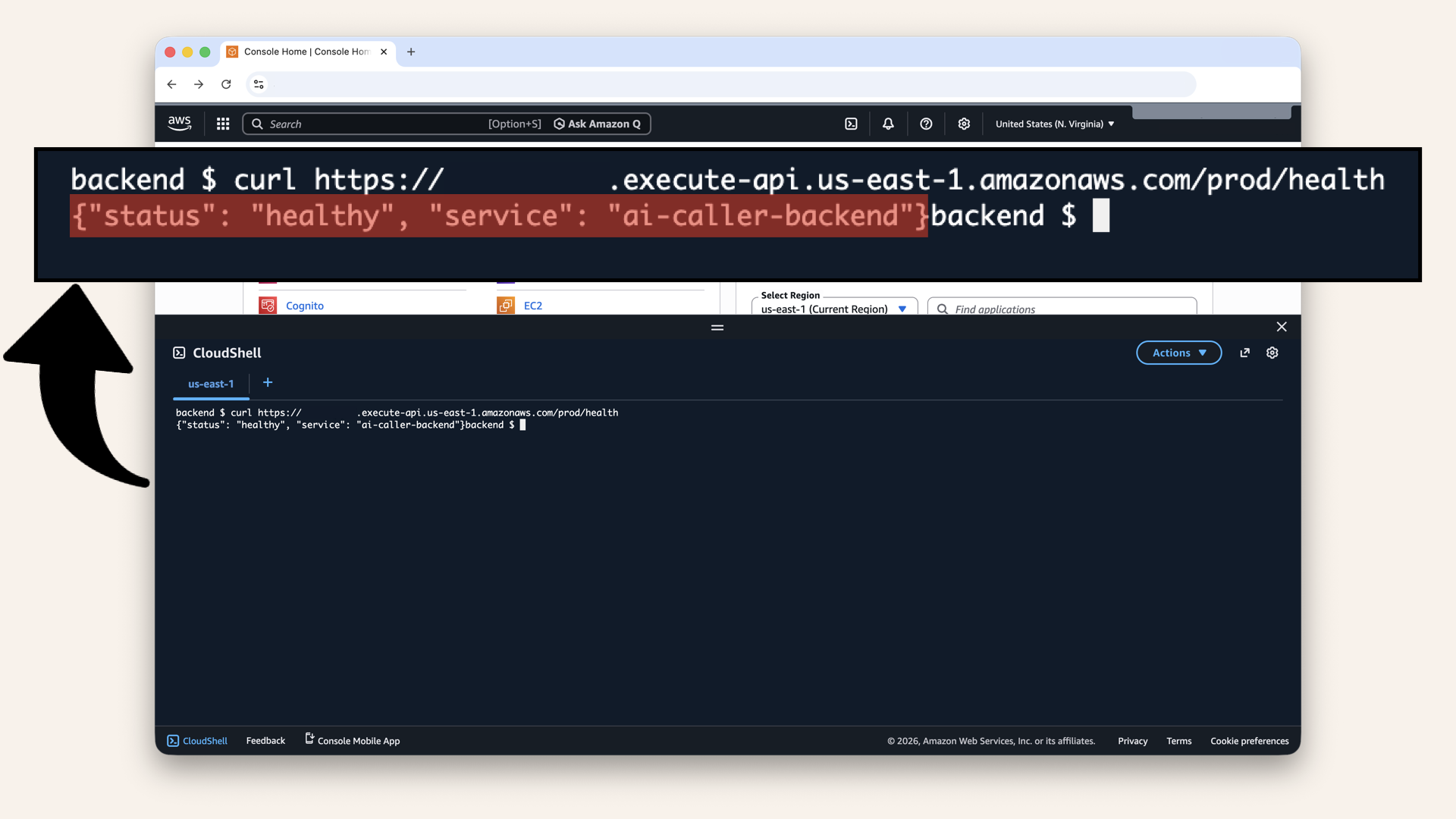

health_handler:

Public endpoint for monitoring
ALB and other services can check if Lambda is healthy

lambda_handler:

Protected by Cognito (only authenticated users reach this)
Extracts user info from JWT claims
Validated phone number format
Returns mock response (tomorrow we connect Fargate)

Security note:

The Cognito Authorizer validates the JWT before this code runs
If the token is invalid, API Gateway returns 401 immediately
your Lambda code only runs for authenticated users

Step 2.3: Create requirements.txt

Create in the src folder:

ai-caller/
├── frontend/                   # Day 12 frontend
└── backend/
    ├── template.yaml
    └── src
        ├── app.py
        └── requirements.txt     <-- Create this file

Add these dependencies (empty for now, we'll add boto3 tomorrow):

src/requirements.txt
# Dependencies for AI Caller Backend
# boto3 is included in Lambda runtime by default
# We'll add more when connecting to Fargate (Day 14)

Step 3: Get your Cognito User Pool ARN

Before deploying, you need your Cognito User Pool ARN from Day 12.

Open the AWS Console ↗

In the search bar at the top, type cognito and click Cognito from the dropdown:

In the search bar at the top, type cognito and click Cognito from the dropdown

You'll see your user pool listed, click on it:

You will see your user pool, click on it

You'll see your user pool, click on it

Click the copy icon to copy your user pool ARN:

Click the copy icon to copy your user pool ARN

Click the copy icon to copy your user pool ARN

Save this ARN - you'll need it during deployment later.

Step 4: Zip your project for CloudShell

We'll deploy from CloudShell to avoid local AWs credential setup.

Make sure you're in the backend folder:

Your terminal

pwd
# Should show: .../ai-caller/backend

Your project structure should look like:

ai-caller/
├── frontend/                   # Day 12 frontend
└── backend/
    ├── template.yaml
    └── src/
        ├── app.py
        └── requirements.txt

Step 4.1: Zip project

macOS/Linux
Windows (PowerShell)

Zip the backend folder:

Your terminal

cd ..
zip -r backend.zip backend/

Zip the backend folder:

Your terminal

cd ..
Compress-Archive -Path backend -DestinationPath backend.zip

You should now have backend.zip in your ai-caller folder:

ai-caller/
├── frontend/           # Day 12 frontend
├── backend
│   ├── main.py
│   ├── src
│   │   ├── app.py
│   │   └── requirements.txt
│   └── template.yaml
└── backend.zip         <--- New zip

Step 5: Deploy from CloudShell

Why CloudShell?

CloudShell saves you from setting up IAM users and configuring AWS CLI locally.

Deep dive

Without CloudShell, you'd need to:

Create an IAM user in AWS Console
Generate access keys
Install AWS CLI locally
Run aws configure and paste your keys

With CloudShell:
✅ Already authenticated (uses your console session)
✅ AWS CLI pre-installed
✅ SAM CLI pre-installed
✅ No keys to manage

Is CloudShell production-ready?

For learning and small deployments: absolutely

For production CI/CD pipelines: you'll want proper IAM roles and automated deployments (GitHub actions etc.).

Step 5.1: Open CloudShell

Open the AWS Console ↗

Click the CloudShell icon in the top navigation bar or left bottom menu:

Click the CloudShell icon in the top navigation bar or left bottom menu

This opens a browser terminal with AWS CLI + SAM pre-installed and already authenticated:

This opens a browser terminal with AWS CLI + SAM pre-installed and already authenticated

Wait for CloudShell to initiate (first time takes ~30 seconds):

Wait for CloudShell to initiate (first time takes 30 seconds)

Wait for CloudShell to initiate (first time takes ~30 seconds)

Step 5.2: Upload your zip file

In CloudShell, click Actions then click Upload file:

In CloudShell, click Actions then click Upload file

In CloudShell, click Actions then click Upload file

Select your backend.zip file and click Open:

Select your backend.zip file and click Open

Select your backend.zip file and click Open

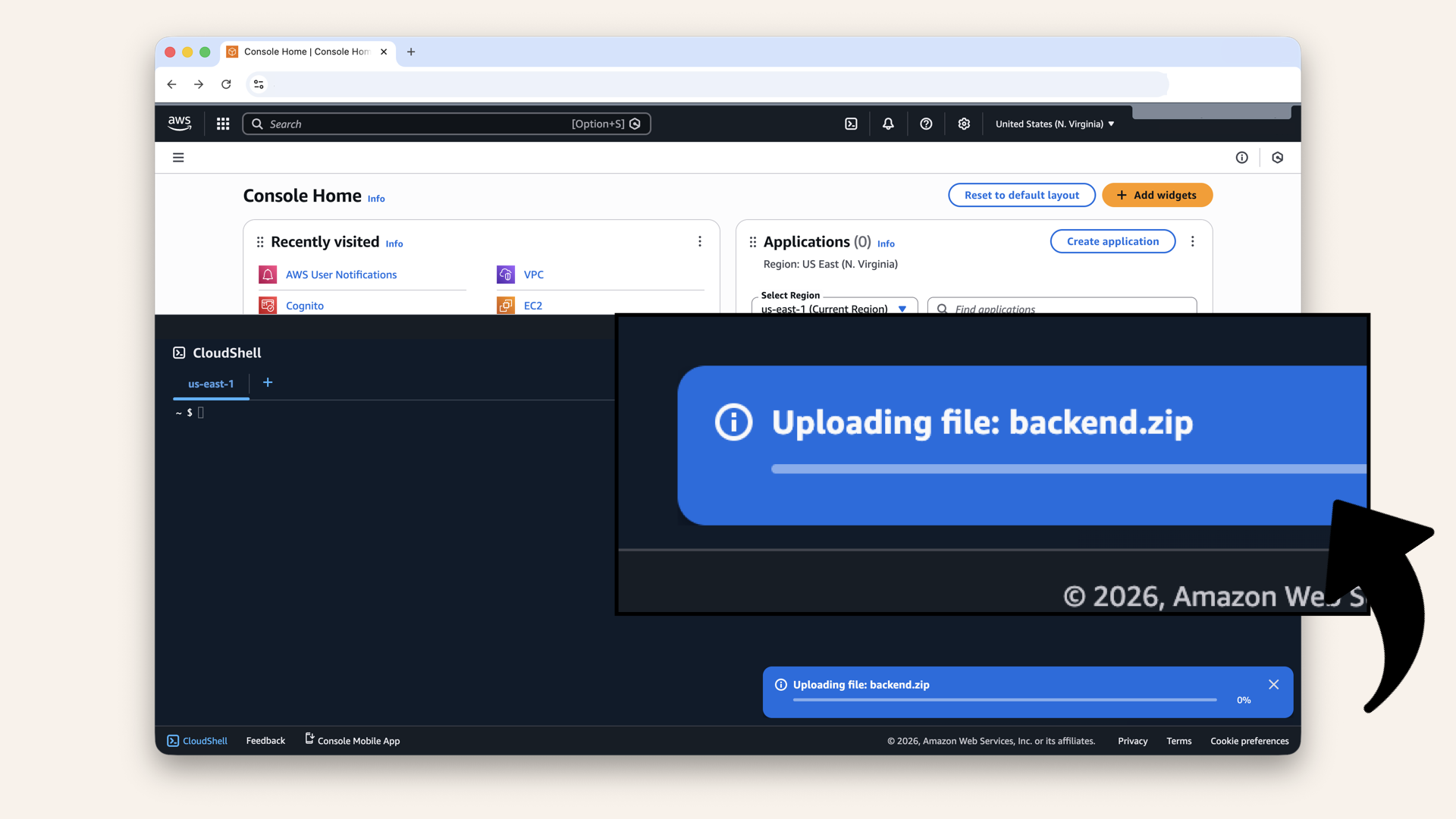

You'll see CloudShell upload backend.zip:

You will see CloudShell upload backend.zip

You'll see CloudShell upload backend.zip

✅ You should see "File upload successful":

You should see File upload successful

You should see "File upload successful"

Step 5.3: Unzip and navigate

Run this in CloudShell to unzip the project:

AWS CloudShell

unzip backend.zip
cd backend

Run this to verify the structure:

AWS CloudShell

ls -la

Expected output:

template.yaml
src/

Seeing more than 2 files?

If you see extra files like .idea/, .DS_Store or __pycache__/, don't worry, these are just editor/system files that got included in your zip.

Common culprits:

.idea/ → PyCharm/IntelliJ project settings
.DS_Store → macOS folder metadata
__pycache__/ → Python bytecode cache
.vscode/ → VS Code settings

They won't affect your deployment. SAM only uses template.yaml and the src/ folder.

Step 5.4: Build and deploy

Run this command in CloudShell to build the SAM application:

AWS CloudShell

sam build

Expected output:

...
Building codeuri: .../src runtime: python3.9 ...
Build Succeeded
...

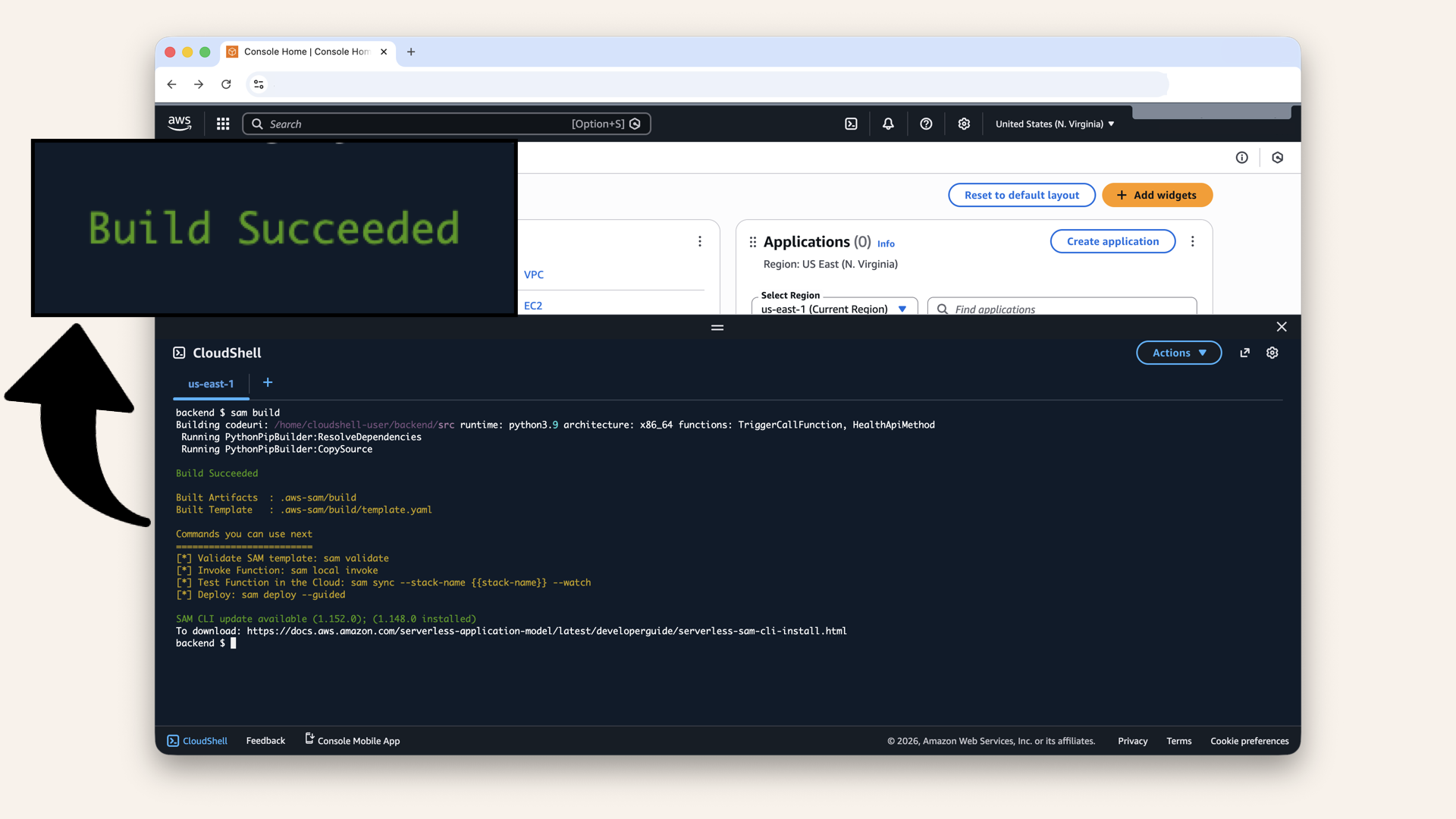

Expected output: Build Succeeded

Expected output: Build Succeeded

Run this to deploy with guided steps:

AWS CloudShell

sam deploy --guided

Answer the prompts:

Prompt	Answer
Stack name
Region	(same as your Cognito)
Parameter CognitoUserPoolArn	Paste your ARN from Step 3
Confirm changes before deploy	`n`
Allow SAM CLI IAM role creation	`y`
Disable rollback	`n`
Save arguments to samconfig.toml	`y`
SAM configuration file [samconfig.yaml]	press Enter
SAM configuration environment [default]	press Enter

Wait for deployment (2-3 minutes)

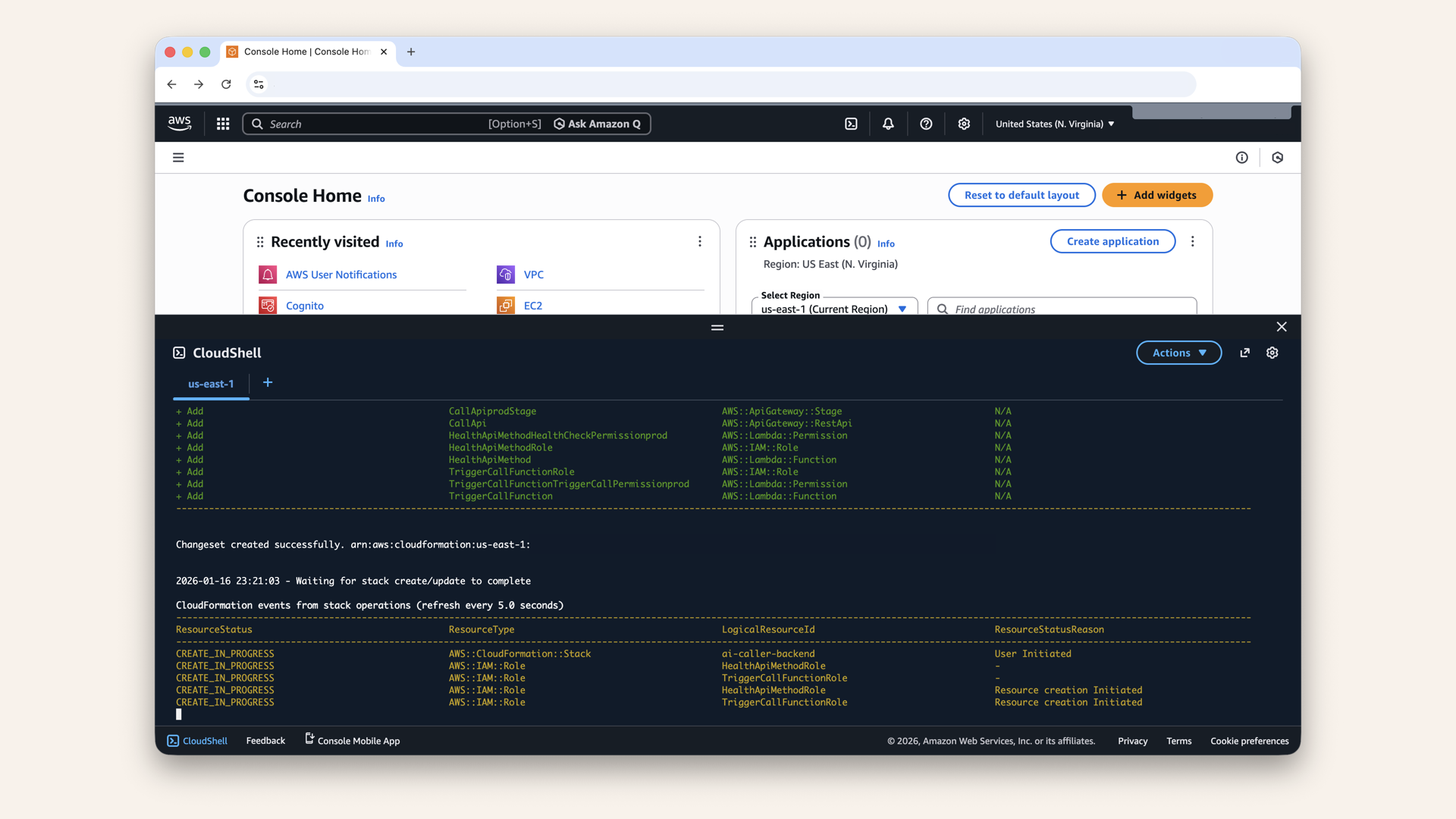

You'll see the deployment in progress:

You will see the deployment in progress

You'll see the deployment in progress

✅ You should see: "Successfully created stack":

You should see: Successfully created stack

You should see: "Successfully created stack"

Step 5.5: Get your API URL

After deployment succeeds, you'll see outputs:

CloudFormation outputs from deployed stack
-----------------------------------------
Key                 ApiUrl
Description         API Gateway endpoint URL
Value               https://abc123xyz.execute-api.us-east-1.amazonaws.com/prod

Key                 TriggerCallEndpoint
Description         Trigger call endpoint (requires auth)
Value               https://abc123xyz.execute-api.us-east-1.amazonaws.com/prod/trigger-call

Key                 HealthEndpoint
Description         Health check endpoint (public)
Value               https://abc123xyz.execute-api.us-east-1.amazonaws.com/prod/health

Save these 3 URLs, you'll need them in next steps.

Need to see outputs again?

Run this command in CloudShell:

AWS CloudShell

sam list stack-outputs --stack-name ai-caller-backend

Step 6: Test your endpoints

Step 6.1: Test the health endpoint (public)

Run this curl command from CloudShell or your local terminal:

Your terminal or AWS CloudShell

curl https://YOUR_API_ID.execute-api.us-east-1.amazonaws.com/prod/health

Expected response:

{"status": "healthy", "service": "ai-caller-backend"}

✅ Health endpoint works:

Health endpoint works

Expected response: {"status": "healthy", "service": "ai-caller-backend"}

Step 6.2: Test the trigger endpoint (without auth)

Try calling the trigger endpoint without authentication:

Your terminal or AWS CloudShell
curl -X POST https://YOUR_API_ID.execute-api.us-east-1.amazonaws.com/prod/trigger-call \
  -H "Content-Type: application/json" \
  -d '{"phone_number": "+1234567890"}'

Expected response:

{"message": "Unauthorized"}

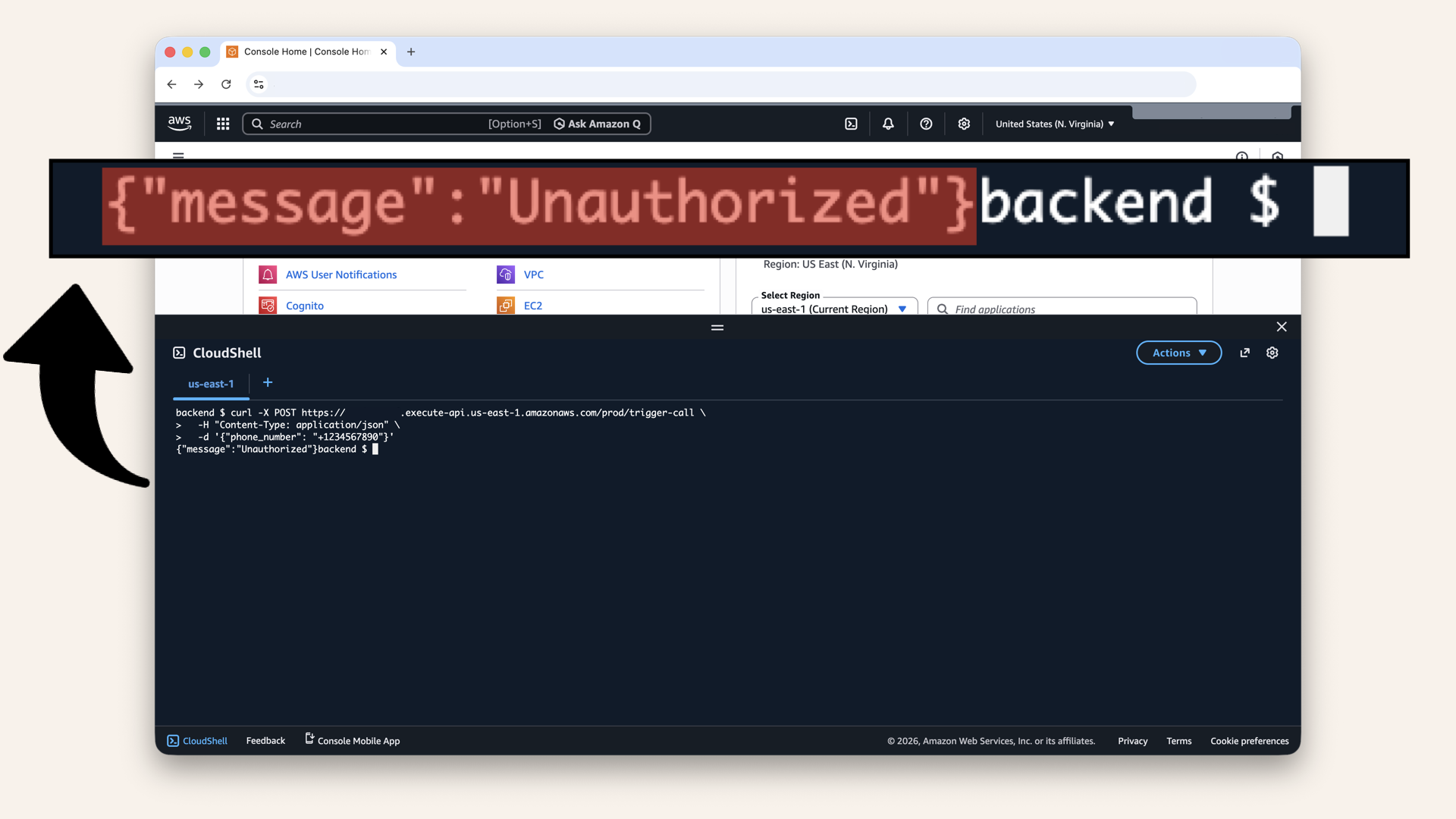

✅ The endpoint is protected. Without a valid Cognito token, you get 401 unauthorized:

The endpoint is protected. Without a valid Cognito token, you get 401

The endpoint is protected. Without a valid Cognito token, you get 401 unauthorized

Step 6.3: Test with authentication

To test with auth, you need a valid JWT token from Cognito.

Let's test from your frontend.

Step 7: Connect your frontend

Now let's update your Day 12 frontend to call the secure backend.

Step 7.1: Update your frontend code

Open your frontend project from Day 12 ↗

Navigate to the frontend folder and start the dev server:

Your terminal

cd frontend
npm run dev

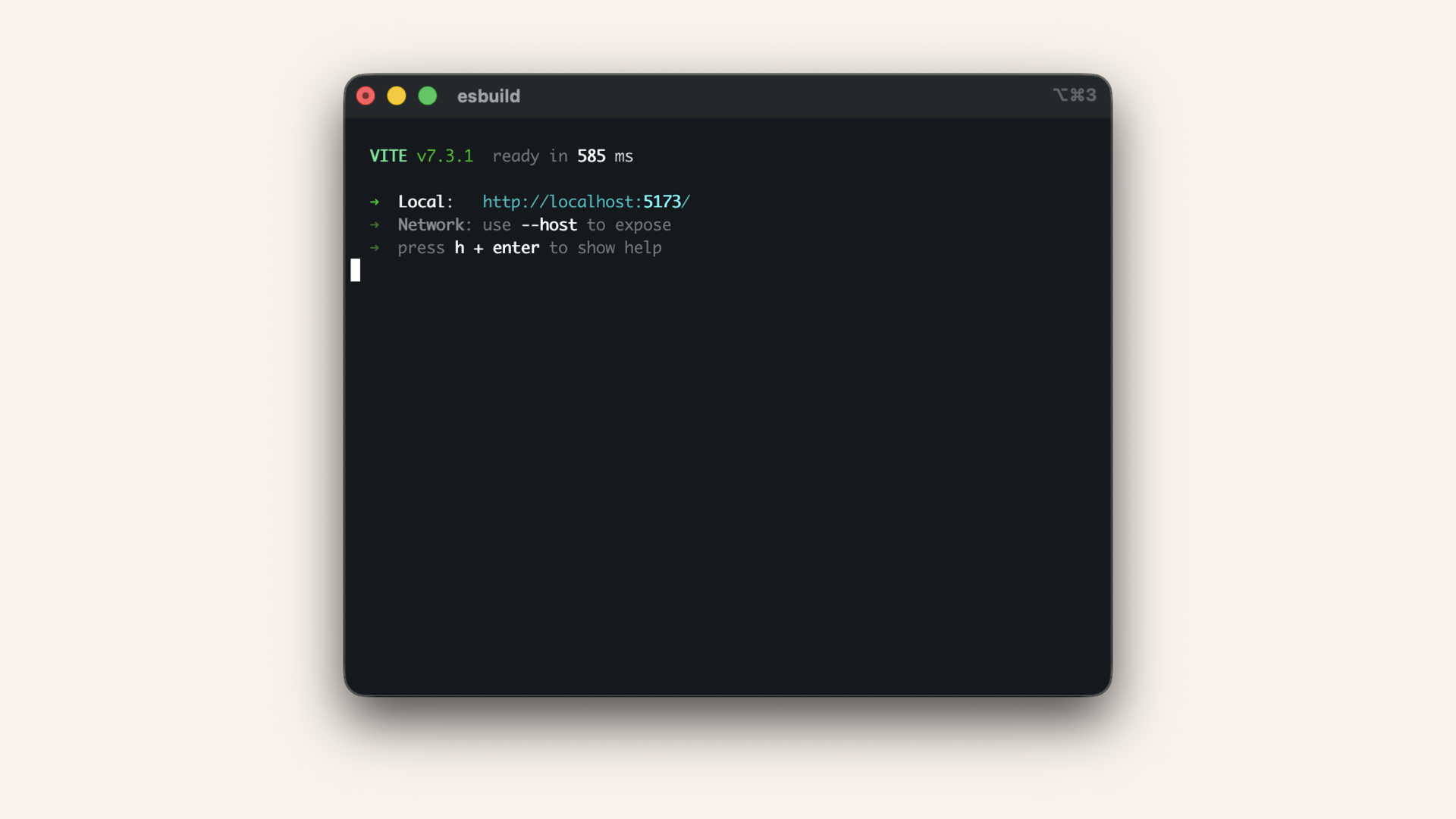

Navigate to the frontend folder and start the dev server

Navigate to the frontend folder and start the dev server

Visit the running dev server on http://localhost:5173/

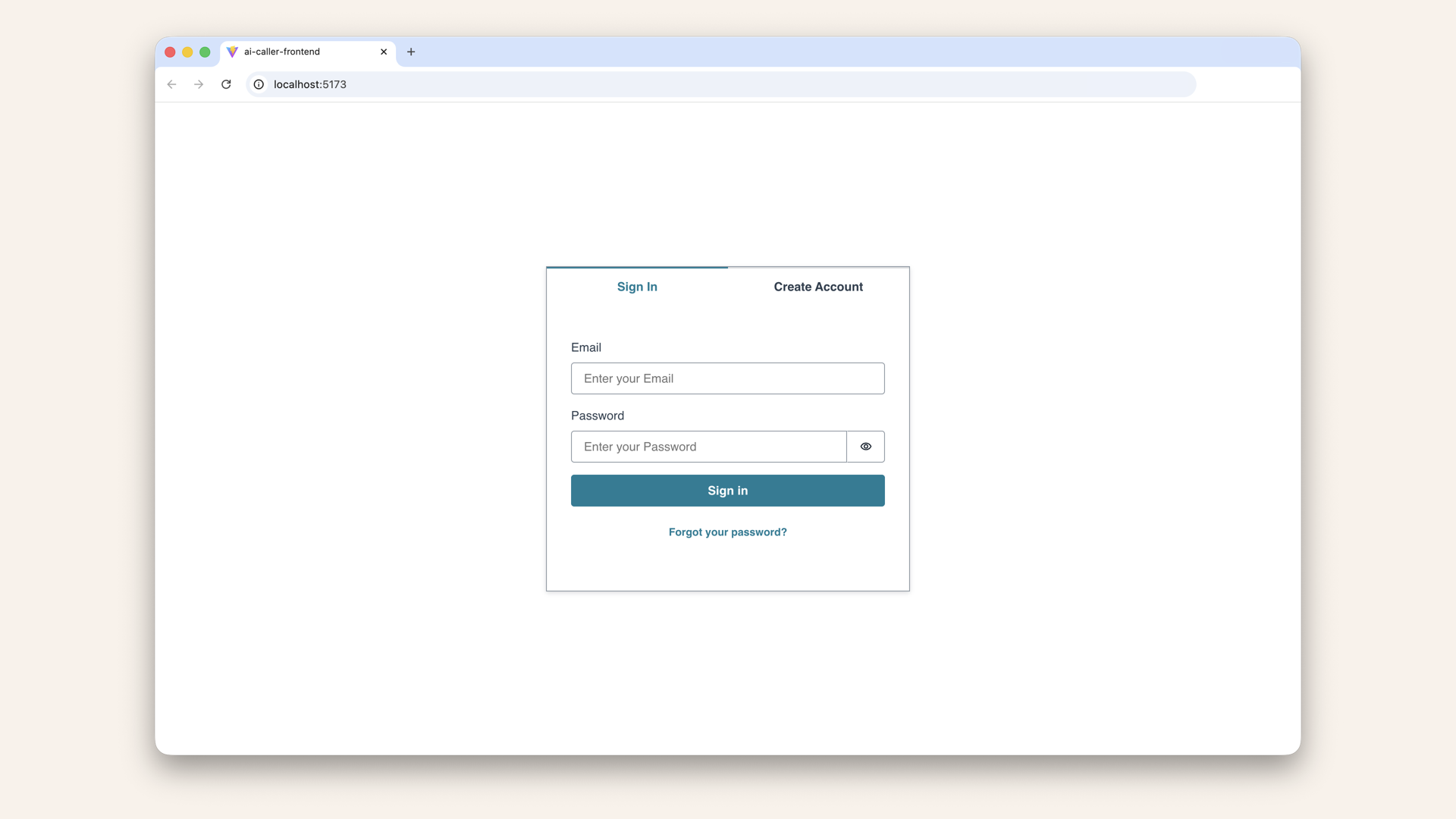

You should see the login screen:

You should see the login screen

Go ahead and log in.

✅ You should see the protected app:

Go ahead and log in and you should see the protected app

Open the src/App.jsx file in your editor.

Add your API URL constant after the imports, before the function App() line:

src/App.jsx
const API_URL = "https://YOUR_API_ID.execute-api.us-east-1.amazonaws.com/prod";

The top of your App.jsx file should look now like this:

src/App.jsx
// ... other imports
import awsconfig from "./aws-exports";

Amplify.configure(awsconfig);

const API_URL = "https://YOUR_API_ID.execute-api.us-east-1.amazonaws.com/prod"; // <-- Add this line

function App() {
  // ... rest of component

Replace YOUR_API_ID

Use the API Gateway URL from Step 5.5 It looks like:

https://abc123xyz.execute-api.us-east-1.amazonaws.com/prod

Step 7.2: Update handleStartCall

Find the handleStartCall function (around line 29):

src/App.jsx
const handleStartCall = async () => {
  // ... rest of function

Replace the entire handleStartCall function with this code:

src/App.jsx
const handleStartCall = async () => {
  if (!phoneNumber) {
    setStatus("Please enter a phone number");
    return;
  }

  setLoading(true);
  setStatus("Triggering call...");

  try {
    const session = await fetchAuthSession();
    const idToken = session.tokens?.idToken?.toString();

    if (!idToken) {
      setStatus("Error: Not authenticated");
      setLoading(false);
      return;
    }

    const response = await fetch(`${API_URL}/trigger-call`, {
      method: "POST",
      headers: {
        "Content-Type": "application/json",
        Authorization: idToken,
      },
      body: JSON.stringify({ phone_number: phoneNumber }),
    });

    const data = await response.json();

    if (response.ok) {
      setStatus(`✅ ${data.message}`);
    } else {
      setStatus(`❌ Error: ${data.error || "Unknown error"}`);
    }
  } catch (error) {
    setStatus(`❌ Error: ${error.message}`);
  } finally {
    setLoading(false);
  }
};

What changed:

Before (Day 12)	After (Day 13)
`setTimeout` placeholder	Real `fetch` call to API Gateway
Fake delay	Actual backend request
Hardcoded message	Response from Lambda

Everything else stays the same

You're only changing two things:

Adding const API_URL = ... after imports
Replacing the handleStartCall function

The rest of App.jsx (imports, UI components, etc.) stays exactly as it was in Day 12.

Step 7.2: Test the complete flow

Open http://localhost:5173 in your browser

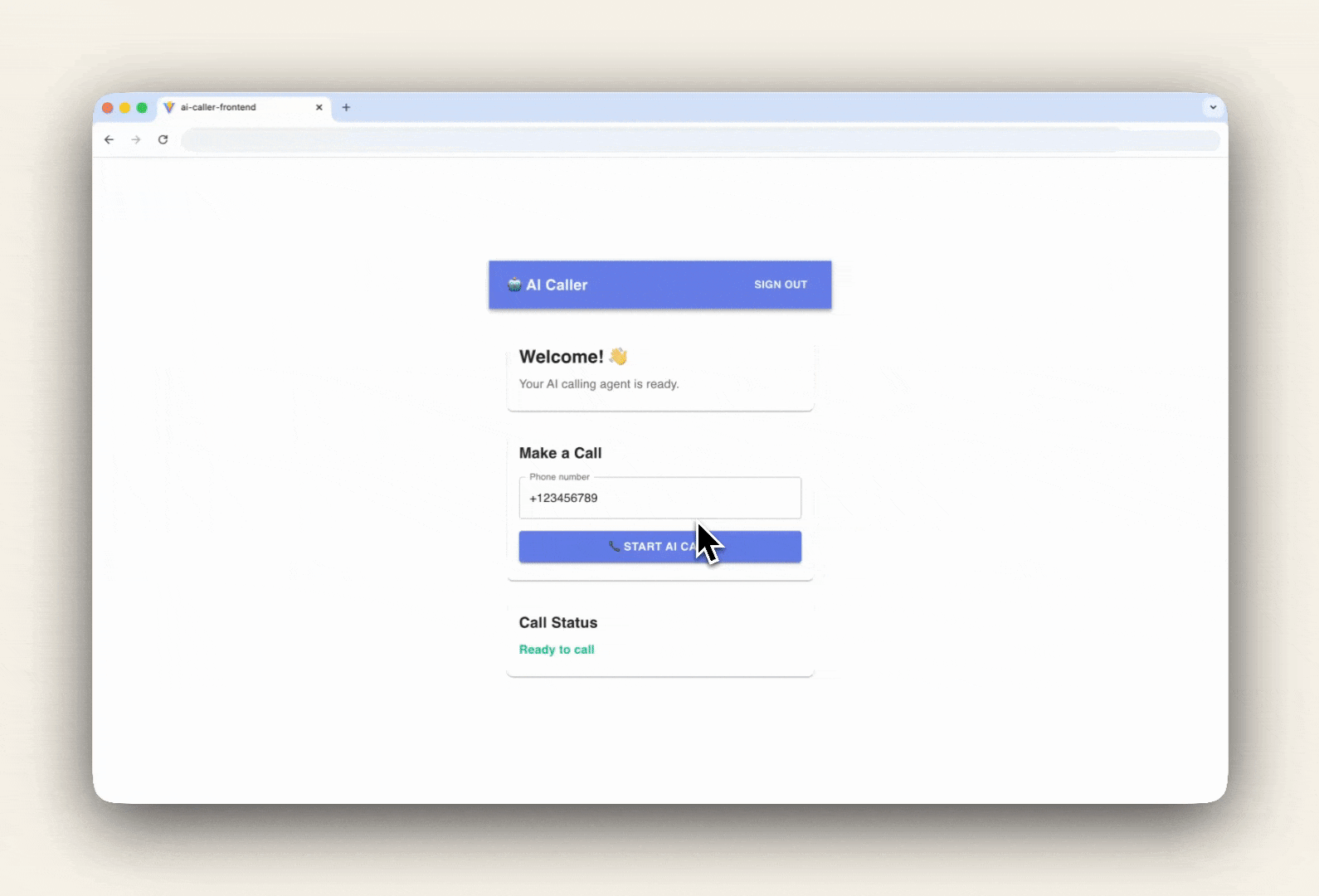

Enter a phone number, e.g. and click "Start AI Call"

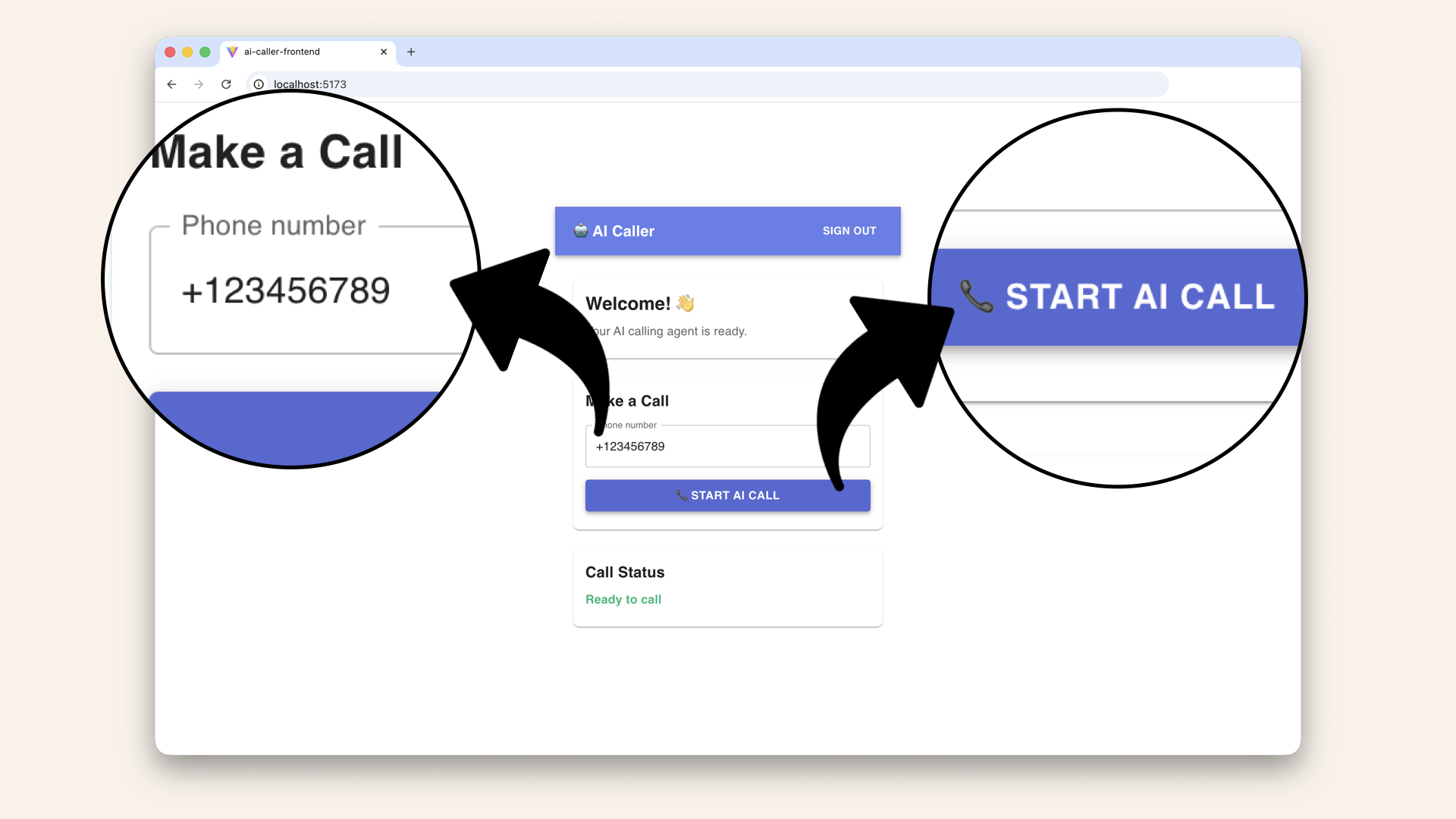

Add a made-up phone number and try to click on Start AI call

Add a made-up phone number and try to click on "Start AI call"

Expected result:

✅ Call trigger received! (Mock response - Fargate connection coming Day 14)

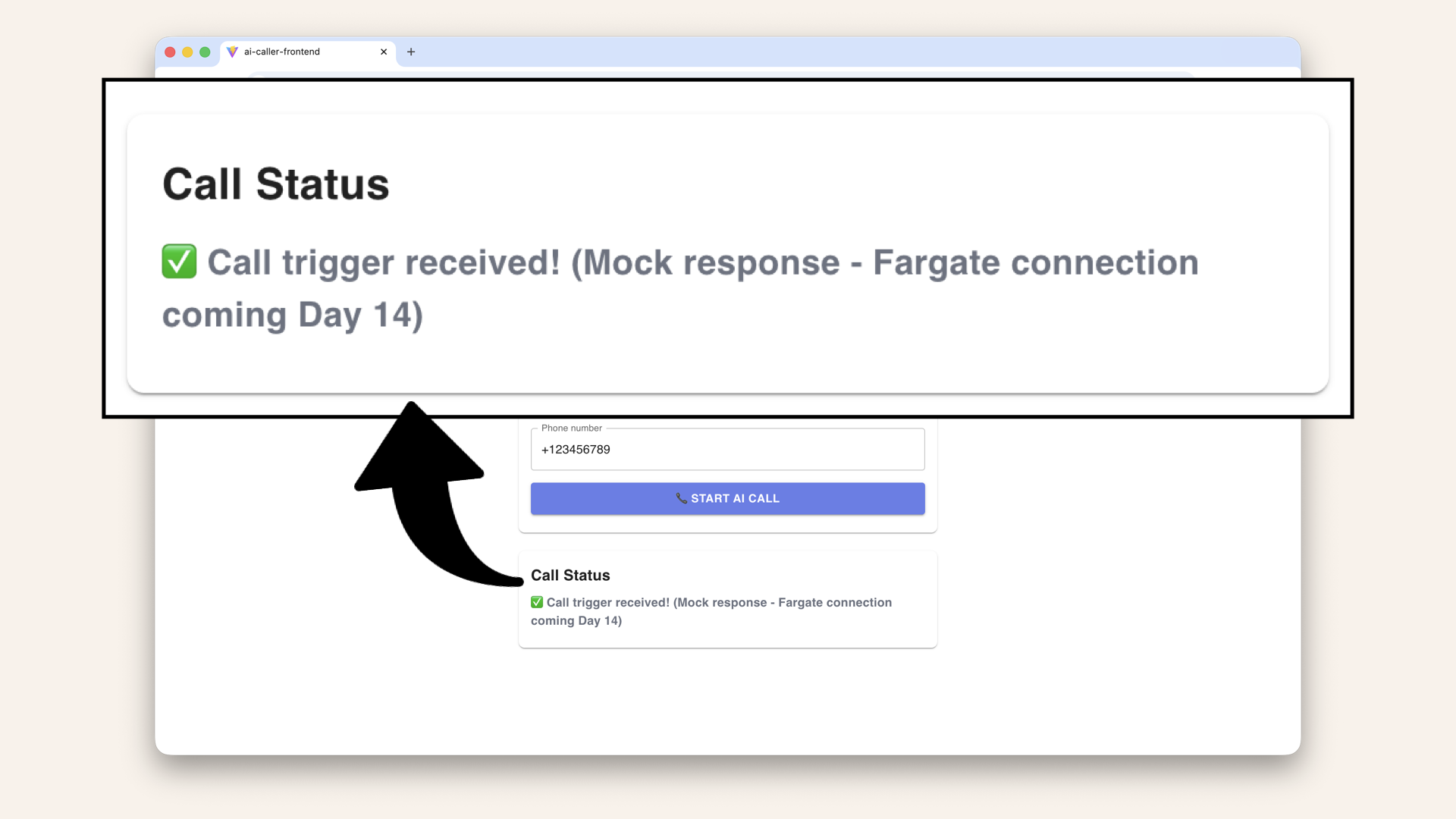

Expected result: ✅ Call trigger received! (Mock response - Fargate connection coming Day 14)

Expected result: ✅ Call trigger received! (Mock response - Fargate connection coming Day 14)

✅ It works!

The response: "✅ Call trigger received! (Mock response - Fargate connection coming Day 14)" is from your app.py in your backend folder on line 67:

src/app.py
return json_response({
    "success": True,
    "message": "Call trigger received! (Mock response - Fargate connection coming Day 14)",
    "data": {
        "phone_number": phone_number,
        "triggered_by": user_email,
        "status": "pending_fargate_integration"
    }
})

Step 8: Redeploy frontend

Step 8.1: Build for production

Run this in your terminal:

Your terminal

npm run build

Make sure you're in frontend

Make sure you're in frontend root when running npm run build

Run this to check:

Mac/Linux
Windows

Your terminal

pwd

Your terminal

cd

✅ You should see the path /frontend

Run npm run build in your terminal

Run npm run build in your terminal

This creates a dist/ folder with optimized production files.

Open your folder system, the dist should have been updated:

Your folder system
.
├── dist            <--- This folder got updated
│   ├── assets
│   ├── index.html
│   └── vite.svg
├── eslint.config.js
├── index.html
├── package-lock.json
├── package.json
├── public
│   └── vite.svg
├── README.md
├── src
│   ├── App.css
│   ├── App.jsx
│   ├── assets
│   ├── aws-exports.js
│   ├── index.css
│   └── main.jsx
└── vite.config.js

Step 8.2: Deploy to S3

Open the AWS Console ↗

In the search bar at the top, type s3 and click S3 from the dropdown:

In the search bar at the top, type s3 and click S3 from the dropdown

You'll see your bucket listed, click on it:

You will see your bucket listed, click on it

You'll see your bucket listed, click on it

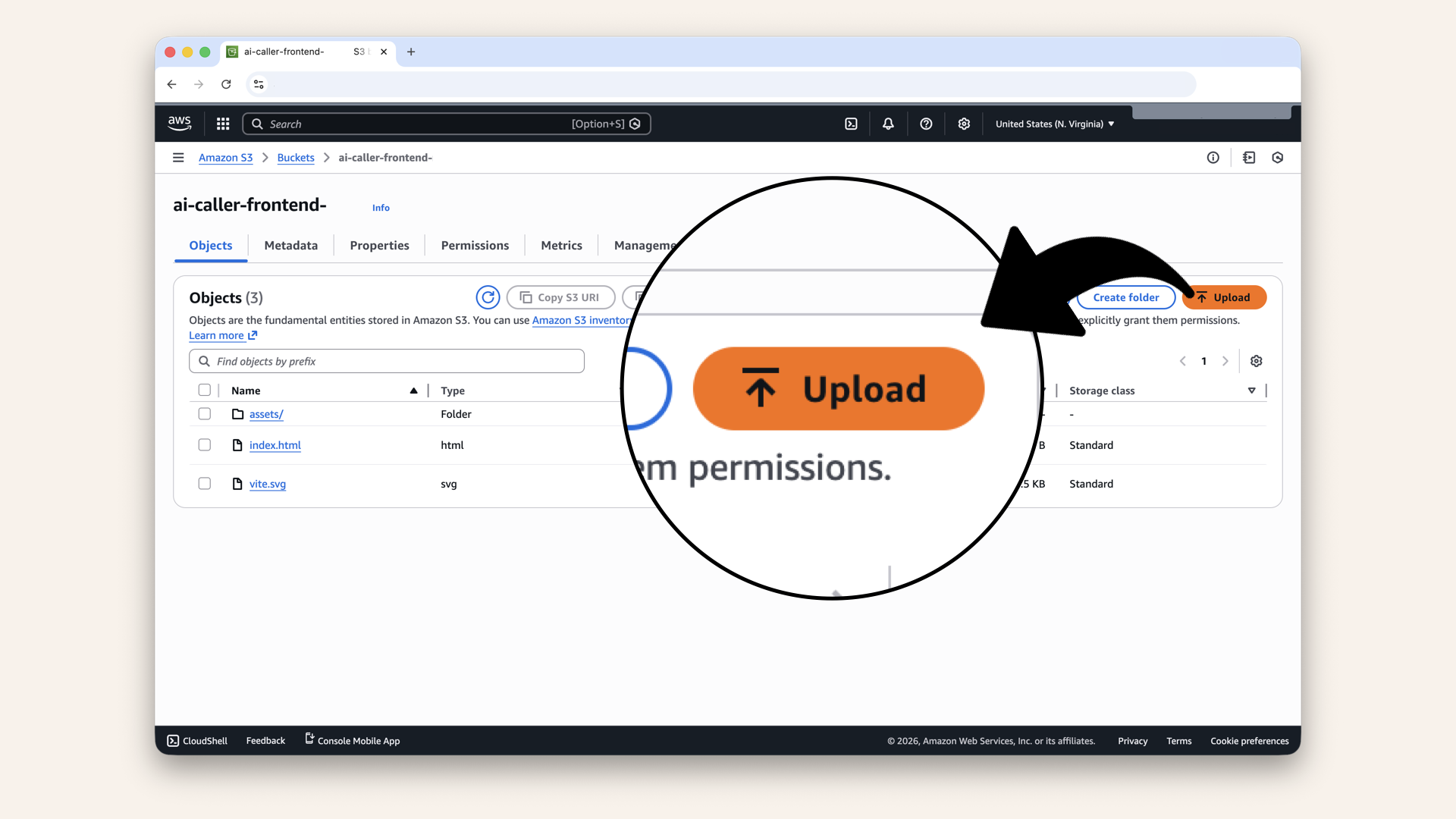

Click Upload:

Click Upload

Click Add files:

Click Add files

Select all files from dist/ folder and click Open:

Select all files from dist/ folder

Select all files from dist/ folder and click Open

Important: Upload the contents of dist/

Important: Upload the contents of dist/, not the dist/ folder itself.

You should upload:

index.html
assets/ folder
vite.svg

✅ You should see the selected files:

You should see the selected files

Click Add folder:

Click Add folder

Select the assets folder and click Upload:

Select the assets folder and click Upload

Select the assets folder and click Upload

Click Upload when asked if upload files from the folder assets:

Click Upload when asked if upload files from Assets

Click Upload when asked if upload files from Assets

You should see the selected files and the files in the assets folder:

You should see the selected files and the files in the assets folder

You should see the selected files and the files in the assets folder

Scroll down and click Upload:

Scroll down and click Upload

Scroll down and click Upload

✅ You should see "Upload succeeded":

You should see Upload succeeded

You should see "Upload succeeded"

Step 8.3: Check the changes

Visit your frontend https://app.yourdomain.com

Enter a phone number, e.g. and click "Start AI Call":

Enter a phone number and click Start AI Call

Enter a phone number and click "Start AI Call"

Still seeing "Backend not connected yet"?

If your changes aren't showing up (like in the image above), you need to invalidate the CloudFront cache. CloudFront is still serving the old version of your files.

Step 9: Invalidate distribution cache

CloudFront caches your frontend files at edge locations worldwide.

When you upload new files to S3, CloudFront doesn't automatically know, it keeps serving the cached version until you tell it to refresh.

Open the AWS Console ↗

In the search bar at the top, type cloudfront and click CloudFront from the dropdown menu:

In the search bar at the top, type cloudfront and click CloudFront from the dropdown

You'll see your distribution listed, click on it:

You will see your distribution listed, click on it

You'll see your distribution listed, click on it

Click the Invalidation tab:

Click the Invalidation tab

Click the Invalidation tab

Click the Create invalidation:

Click the Create invalidation

Click the Create invalidation

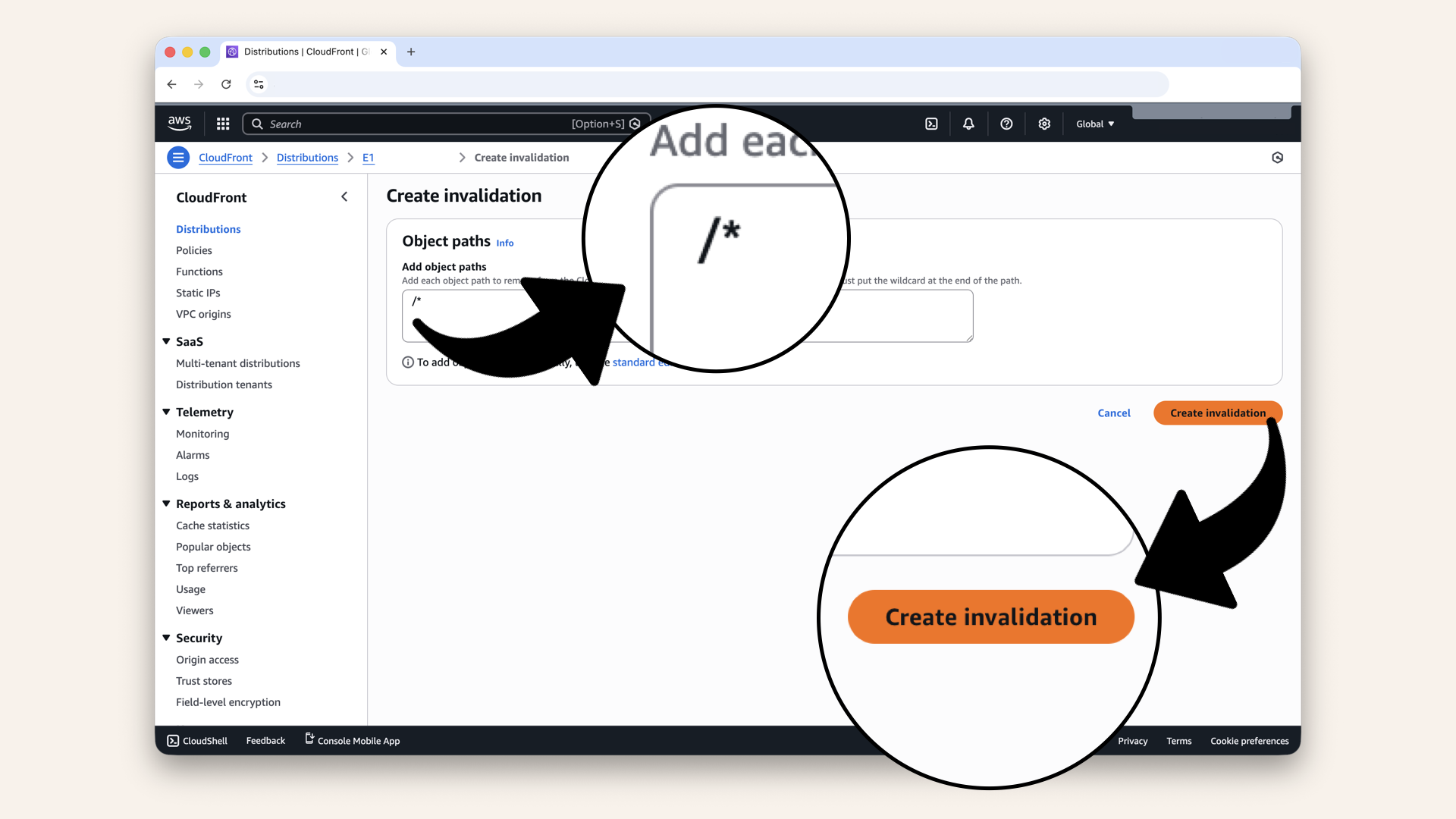

Type the wildcard and click Create invalidation

Type the wildcard /* and click Create invalidation

What the wildcard does

Deep dive

The /* wildcard tells CloudFront to invalidate all cached files.

You could be more specific:

/index.html → Only the homepage
/assets/* → Only files in the assets folder
/assets/index-*.js → Only JavaScript bundles

For small deployments like ours, /* is easiest. CloudFront gives you 1,000 free invalidation paths per month, and /* counts as one path.

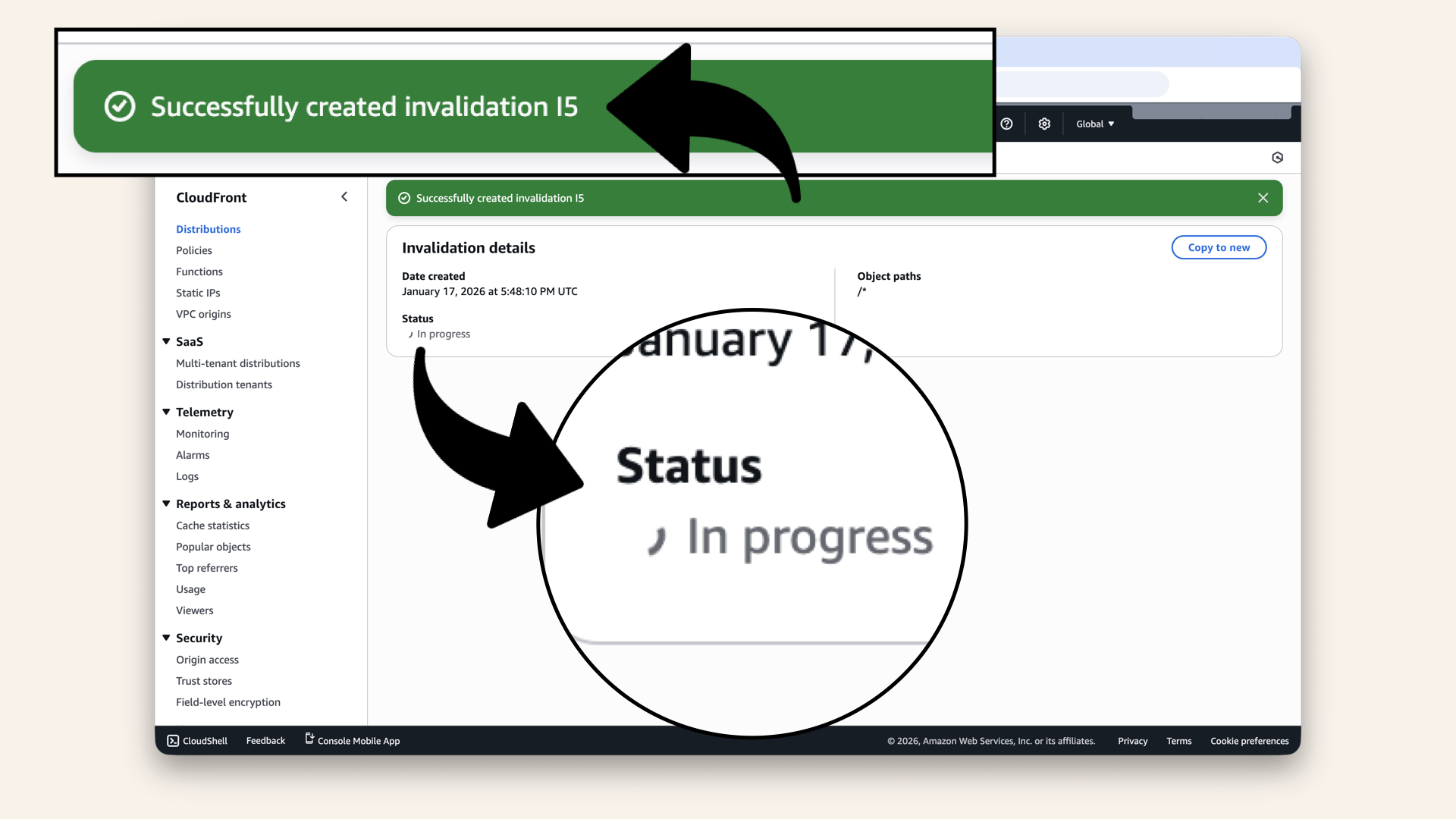

✅ You should see "Successfully created invalidation" with status In progress:

You should see Successfully created invalidation with status In progress

You should see "Successfully created invalidation" with status In progress

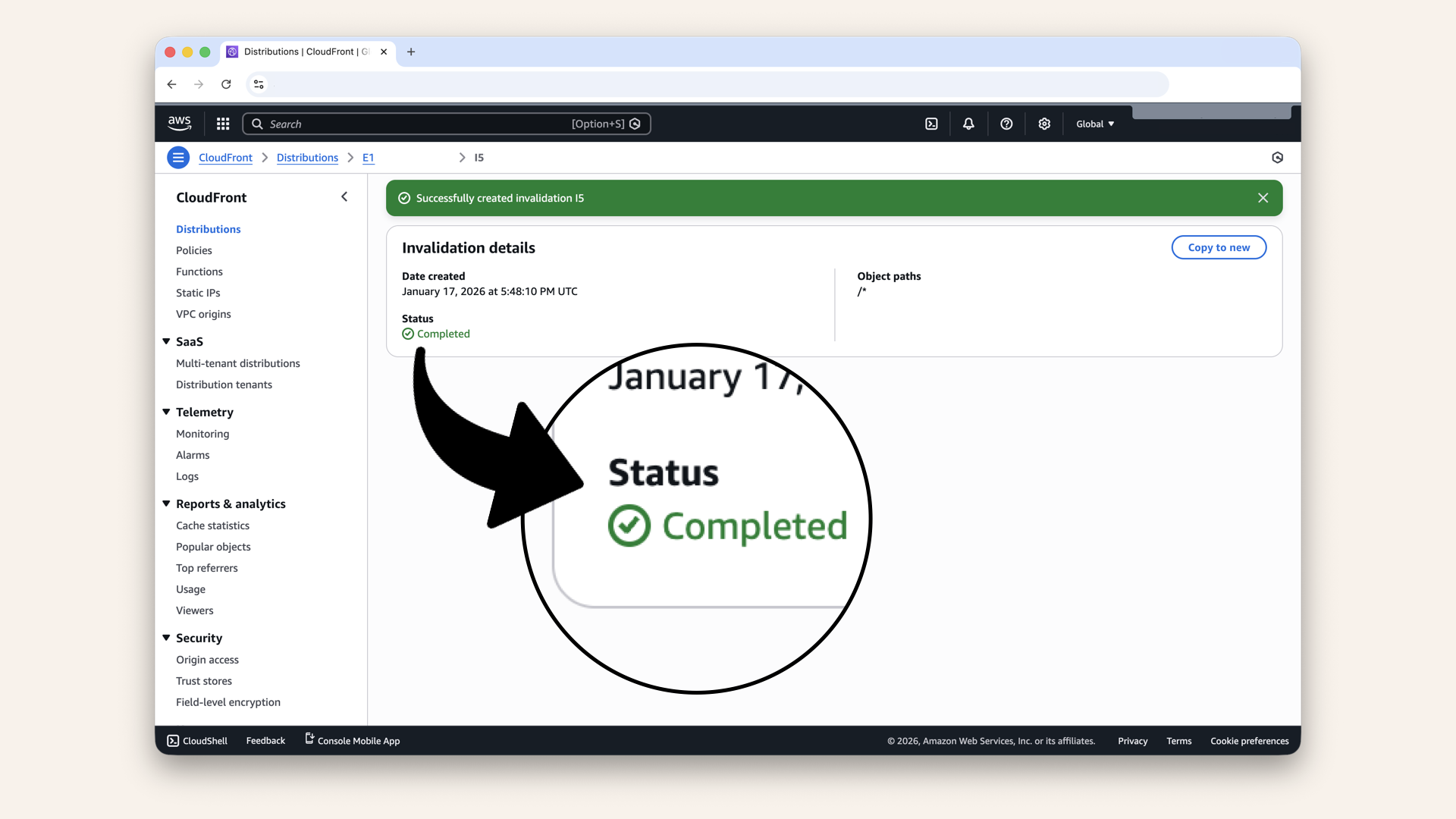

Wait 1-2 minutes until status changes to Completed:

Wait 1-2 minutes until status changes to Completed

Wait 1-2 minutes until status changes to Completed

Step 9.1: Hard refresh your browser

Head back to https://app.yourdomain.com

Do a hard refresh to clear your browser's local cache:

Mac
Windows

Browser	Shortcut
Chrome	`Cmd + Shift + R`
Safari	`Cmd + Option + R`
Firefox	`Cmd + Shift + R`

Browser	Shortcut
Chrome	`Ctrl + Shift + R`
Edge	`Ctrl + Shift + R`
Firefox	`Ctrl + Shift + R`

Why a hard refresh?

Your browser also caches files locally, separate from CloudFront's cache.

A normal refresh might still show the old JavaScript. A hard refresh forces the browser to re-download everything from CloudFront's freshly invalidated cache.

Step 9.2: Test the backend connection

Enter a phone number again, e.g. and click "Start AI Call":

Enter a phone number again, e.g. +123456789 and click Start AI Call

Enter a phone number again, e.g. +123456789 and click "Start AI Call"

✅ You should see the response from your Lambda backend:

✅ Call trigger received! (Mock response - Fargate connection coming Day 14)

🎉 It works! Your frontend is now connected to your secure backend.

The complete flow:

You clicked the button
Frontend fetched your Cognito JWT token
Request sent to API Gateway with the token
Cognito Authorizer validated the token
Lambda executed and returned the response
Frontend displayed the success message

Tomorrow: We'll replace that mock response with a real Fargate trigger!

✅ Today's win

If you completed all steps:

✅ Created Lambda function with SAM
✅ Set up API Gateway with CORS
✅ Added Cognito Authorizer
✅ Deployed from CloudShell (with no local AWS setup!)
✅ Verified health endpoint works (public)
✅ Verified trigger endpoint is protected (401 without auth)
✅ Connected frontend to secure backend
✅ Successfully triggered call (mock response)

Your backend is secure.

Before today:

No way to trigger calls from frontend
Any public endpoint would be vulnerable

After today:

Lambda + API Gateway + Cognito = secure
Only authenticated users can trigger calls
No public exposure

Understanding what you built

The complete security architecture:

┌─────────────────────────────────────────────────────────────┐
│                     PUBLIC INTERNET                         │
└─────────────────────────────────────────────────────────────┘
           │
           ▼
    ┌─────────────────┐
    │    Frontend     │
    │   (Cognito)     │
    │  app.yourdomain │
    └─────────────────┘
           │
           │ POST /trigger-call
           │ + Authorization: <JWT>
           ▼
    ┌─────────────────┐
    │  API Gateway    │
    │                 │
    │ Cognito Auth ──▶ Validates JWT
    └─────────────────┘
           │
           │ Only if JWT valid
           ▼
    ┌─────────────────┐
    │    Lambda       │
    │                 │
    │ (Not publicly   │
    │  accessible)    │
    └─────────────────┘
           │
           │ Tomorrow: triggers
           ▼
    ┌─────────────────┐
    │    Fargate      │
    │ (Private subnet)│
    └─────────────────┘

Key security layers:

Frontend auth (Cognito login required)
AI Gateway auth (validates JWT)
Lambda isolation (not publicly accessible)
Fargate isolation (private subnet, tomorrow)

Tomorrow's preview

Today: You built secure backend trigger (mock response)

Tomorrow (Day 14): We deploy AI containers to Fargate

What we'll do:

Build Docker image
Push to Amazon ECR
Create ECS Cluster
Deploy Fargate Task Definition
Connect Lambda → Fargate
Make your first REAL AI call! 📞🤖

After Day 14:

Lambda triggers actual Fargate containers
Fargate connects to OpenAI + Twilio
Real phone calls happen

What we learned today

1. Why Lambda is more secure

Not publicly accessible - only through API Gateway or AWS services

2. API Gateway with Cognito Authorizer

Validates JWT tokens before requests reach Lambda

API Gateway = locked cover on the control panel inside your pool house:

API Gateway = locked cover on the control panel inside your pool house

API Gateway = locked cover on the control panel inside your pool house

3. AWS SAM

Infrastructure as code for serverless applications

4. CloudShell deployment

No local AWS credential setup needed

5. Secure frontend integration

Fetch auth session, include JWT in Authorizer header

The application layer grows

Days 1-2: Local development (your laptop) ✅
Day 3: VPC (your territory) ✅
Day 4: Subnets (front yards vs back yards) ✅
Day 5: NAT Gateway (back gate) ✅
Day 6: Route Tables (the roads) ✅
Day 7: Security Groups (the bouncers) ✅
Day 8: Test Your Network (validation) ✅
Day 9: Application Load Balancer (front door) ✅
Day 10: Custom Domain (real URLs) ✅
Day 11: SSL Certificate (HTTPS) ✅
Day 12: Deploy Frontend (with auth) ✅
Day 13: Secure Backend Trigger ← YOU ARE HERE ✅
Day 14: Deploy AI Containers (Fargate) ← TOMORROW!
Days 15-17: Connect & Test
Days 18-24: Features & Polish

Troubleshooting

SAM deploy fails with "Parameter CognitoUserPoolArn"

Make sure you're using the full ARN, not just the User Pool ID.

Correct format:

arn:aws:cognito-idp:us-east-1:123456789012:userpool/us-east-1_ABC123xyz

Wrong format:

us-east-1_ABC123xyz  ❌

Get the ARN from: Cognito → User Pools → Your pool → User pool overview

Upload says backend.zip exists (or unzip asks to replace files)

Recommended (clean reset): remove the old zip, project folder, and cached build; then re-upload your fresh zip.

Reset & re-upload:

AWS CloudShell
cd ~
rm -f backend.zip
rm -rf backend ~/.aws-sam   # remove old project + SAM build cache

In CloudShell, click Actions then click Upload file to re-upload backend.zip:

In CloudShell, click Actions then click Upload file

In CloudShell, click Actions then click Upload file

Then unzip again:

AWS CloudShell

unzip backend.zip -d backend && cd backend

SAM deploy fails

Stream the function logs in real time::

AWS CloudShell

sam logs -n AgentFn --tail

What this does: pulls logs from CloudWatch as your Lambda executes.

Deploy fails: stack is in ROLLBACK_COMPLETE

CloudFormation won't update a stack in ROLLBACK_COMPLETE. Delete it, then redeploy.

Delete failed stack:

AWS CloudShell

sam delete  # confirms and removes the stack

Answer y to both prompts:

Are you sure you want to delete the stack ai-caller-backend in the region us-east-1 ? [y/N]: y
Are you sure you want to delete the folder ai-caller-backend in S3 which contains the artifacts? [y/N]: y

If needed:

AWS CloudShell

sam delete --stack-name ai-caller-backend --region us-east-1

Validate & redeploy:

AWS CloudShell

sam validate
sam build && sam deploy --guided

Health endpoint returns 403

The health endpoint should be public. If you get 403:

Check your template.yaml has Auth: Authorizer: NONE on the health event
Redeploy with sam deploy
Wait 1-2 minutes for changes to propagate

Frontend gets CORS error

Check these things:

API Gateway CORS - Verify AllowOrigins: ['*'] in template.yaml
Response headers - Lambda must return CORS headers (check json_response function)
Redeploy - Run sam deploy again

If still failing:

Open browser DevTools → Network tab
Look at the OPTIONS preflight request
Check if it returns 200 with CORS headers

Getting "Unauthorized" even when logged in

The JWT token might not be passed correctly.

Check browser DevTools → Network → Request headers
Verify Authorization header contains the token
Make sure you're using idToken, not accessToken

Test your token:

const session = await fetchAuthSession();
console.log('ID Token:', session.tokens?.idToken?.toString());

CloudShell upload fails

File size limit: CloudShell has a 1GB storage limit.

If upload fails:

Delete old files: rm -rf ~/backend.zip ~/backend
Try uploading again
If still failing, make sure zip is under 50MB

Common mistakes (and how to avoid them)

❌ Mistake: #1: Using access token instead of ID token

Result: 401 Unauthorized
Fix: Use session.tokens?.idToken, not accessToken

❌ Mistake: #2: Wrong Cognito User Pool ARN

Result: SAM deploy fails or auth always fails
Fix: Copy full AWS from Cognito console

❌ Mistake: #3: Forgetting to redeploy after template changes

Result: Old configuration still active
Fix: Always run sam deploy after changing template.yaml

❌ Mistake: #4: Not waiting for deployment to complete

Result: Endpoints don't work yet
Fix: Wait for "Successfully created/updated stack" message

Secure backend deployed? Share it!

Twitter/X:

"Day 13: Built a secure backend! Lambda + API Gateway + Cognito = Only authenticated users can trigger calls. No public exposure. Following @norahsakal's advent calendar 🎄"

LinkedIn:

"Day 13 of building AI calling agents: Created a secure Lambda backend with API Gateway and Cognito authorization. The call trigger endpoint is protected - only authenticated users can access it. Tomorrow: Deploy the actual AI containers!"

Tag me! I want to celebrate your progress! 🎉

This advent calendar is completely free.

But if you want:

✅ Complete codebase (one clean repo)
✅ Complete walkthroughs
✅ Support when stuck
✅ Production templates
✅ Advanced features

Join the waitlist for the full course (launching February 2026):

Building something with AI calling?

Let's chat about your use case!
Schedule a free call ↗ - no pitch, just two builders talking.

Tomorrow: Day 14 - Deploy AI Containers to Fargate 🚀📞

See you then!

— Norah

Why you need a secure trigger​

What you'll build today​

What you'll learn​

Time required​

Prerequisites​

Understanding the architecture (3-minute primer)​

Why not just add an endpoint to Fargate?​

Why Lambda + API Gateway is secure​

What is AWS SAM?​

What is CloudShell?​

Step 1: Install SAM CLI locally​

Step 2: Create the backend project​

Step 2.1: Create template.yaml​

Step 2.2: Create the Lambda function​

Step 2.3: Create requirements.txt​

Step 3: Get your Cognito User Pool ARN​

Step 4: Zip your project for CloudShell​

Step 4.1: Zip project​

Step 5: Deploy from CloudShell​

Step 5.1: Open CloudShell​

Step 5.2: Upload your zip file​

Step 5.3: Unzip and navigate​

Step 5.4: Build and deploy​

Step 5.5: Get your API URL​

Step 6: Test your endpoints​

Step 6.1: Test the health endpoint (public)​

Step 6.2: Test the trigger endpoint (without auth)​

Step 6.3: Test with authentication​

Step 7: Connect your frontend​

Step 7.1: Update your frontend code​

Step 7.2: Update handleStartCall​

Step 7.2: Test the complete flow​

Step 8: Redeploy frontend​

Step 8.1: Build for production​

Step 8.2: Deploy to S3​

Step 8.3: Check the changes​

Step 9: Invalidate distribution cache​

Step 9.1: Hard refresh your browser​

Step 9.2: Test the backend connection​

✅ Today's win​

Understanding what you built​

Tomorrow's preview​

What we learned today​

1. Why Lambda is more secure​

2. API Gateway with Cognito Authorizer​

3. AWS SAM​

4. CloudShell deployment​

5. Secure frontend integration​

The application layer grows​

Troubleshooting​

Common mistakes (and how to avoid them)​

❌ Mistake: #1: Using access token instead of ID token​

❌ Mistake: #2: Wrong Cognito User Pool ARN​

❌ Mistake: #3: Forgetting to redeploy after template changes​

❌ Mistake: #4: Not waiting for deployment to complete​

Share your progress​

Why you need a secure trigger

What you'll build today

What you'll learn

Time required

Prerequisites

Understanding the architecture (3-minute primer)

Why not just add an endpoint to Fargate?

Why Lambda + API Gateway is secure

What is AWS SAM?

What is CloudShell?

Step 1: Install SAM CLI locally

Step 2: Create the backend project

Step 2.1: Create template.yaml

Step 2.2: Create the Lambda function

Step 2.3: Create requirements.txt

Step 3: Get your Cognito User Pool ARN

Step 4: Zip your project for CloudShell

Step 4.1: Zip project

Step 5: Deploy from CloudShell

Step 5.1: Open CloudShell

Step 5.2: Upload your zip file

Step 5.3: Unzip and navigate

Step 5.4: Build and deploy

Step 5.5: Get your API URL

Step 6: Test your endpoints

Step 6.1: Test the health endpoint (public)

Step 6.2: Test the trigger endpoint (without auth)

Step 6.3: Test with authentication

Step 7: Connect your frontend

Step 7.1: Update your frontend code

Step 7.2: Update handleStartCall

Step 7.2: Test the complete flow

Step 8: Redeploy frontend

Step 8.1: Build for production

Step 8.2: Deploy to S3

Step 8.3: Check the changes

Step 9: Invalidate distribution cache

Step 9.1: Hard refresh your browser

Step 9.2: Test the backend connection

✅ Today's win

Understanding what you built

Tomorrow's preview

What we learned today

1. Why Lambda is more secure

2. API Gateway with Cognito Authorizer

3. AWS SAM

4. CloudShell deployment

5. Secure frontend integration

The application layer grows

Troubleshooting

Common mistakes (and how to avoid them)

❌ Mistake: #1: Using access token instead of ID token

❌ Mistake: #2: Wrong Cognito User Pool ARN

❌ Mistake: #3: Forgetting to redeploy after template changes

❌ Mistake: #4: Not waiting for deployment to complete

Share your progress
